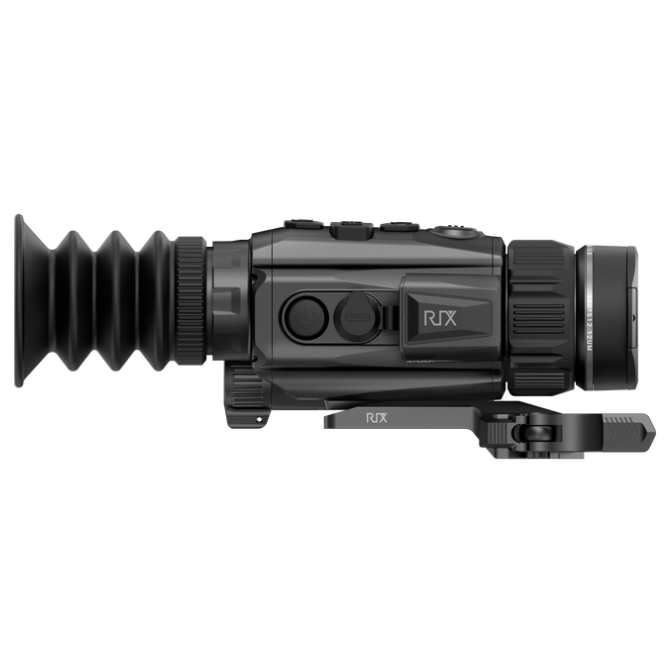

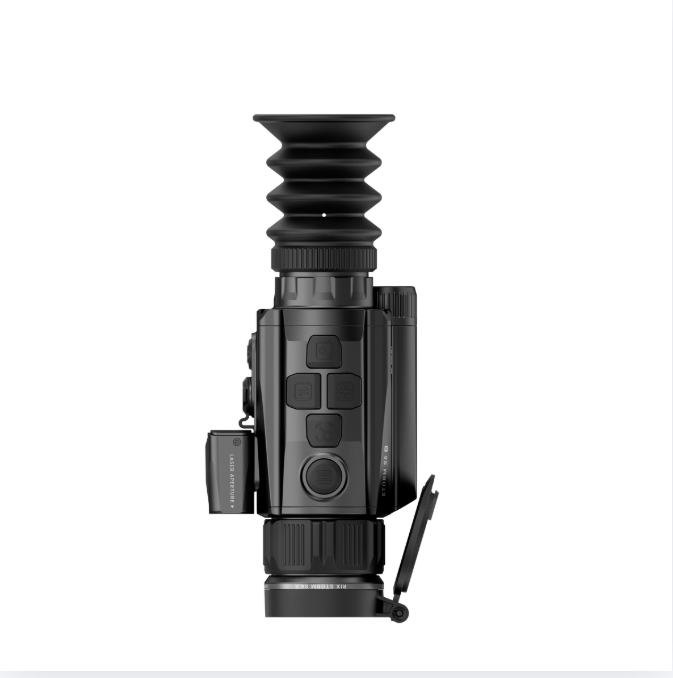

RIX STORM S6R Thermal Imaging Riflescope

RIX STORM S6R Thermal Imaging Riflescope

The RIX STORM S6R Thermal Imaging Riflescope is a rugged, high-performance thermal optic designed for hunters and tactical shooters who need clear heat signature detection, reliable ranging, and intuitive operation in low-light and no-light environments. With a 640×512 thermal sensor and precision optics, the STORM S6R delivers sharp thermal imagery and real-world performance for hunting, scouting, and nighttime observation.

📌 Core Specifications

• Thermal Sensor Resolution: 640 × 512 (VOx uncooled)

• Thermal Sensitivity (NETD): <20 mK

• Frame Rate: 50 Hz

• Objective Lens: 35 mm

• Optical Zoom: 2× base magnification

• Digital Zoom: 1× to 4× selectable

• Field of View: 12.5° horizontal / ~21.9 yd @ 100 yd

• Display Type: AOLED

• Display Resolution: 1024 × 768

• Laser Rangefinder: Integrated LRF (up to ~1,200 yd)

• Detection Range: ~1,800 m / ~1,969 yd

• Thermal Palettes: Multiple selectable modes

• Photo/Video Recording: 1024 × 768 (.mp4 / .jpg) with built-in memory (32 GB)

• Wireless: Wi‑Fi connectivity (2.4 GHz)

• Battery Type: 18650 rechargeable (approx. 4–5 hr runtime)

• External Power: USB‑C 5 V support

• Protection Rating: IP67 dust/water resistance

• Recoil Resistance: Up to 1000 g

• Eye Relief: 48 mm

• Diopter Adjustment: -5 to +5

• Weight: ~1 lb

• Dimensions: ~5.3″ × 2.7″ × 2.2″

• Mounting: Picatinny/QD mount compatible

Why It Matters

The STORM S6R combines a high-resolution 640×512 thermal sensor with responsive optics and a rugged design, delivering excellent thermal clarity and wide-field performance in varied conditions. Its integrated laser rangefinder provides accurate distance measurement on the fly, while multiple thermal palettes, intuitive controls, and onboard recording with Wi‑Fi connectivity make it a versatile optic for both hunting and tactical use. The weather-sealed housing ensures durability in the field.
