Minn Kota - Riptide Maxxum

🚤 Saltwater cable-steer bow-mount with Bowguard collision protection. Five configurations from $899 to $1399 covering 42-52 inch shafts and 12V/24V thrust.

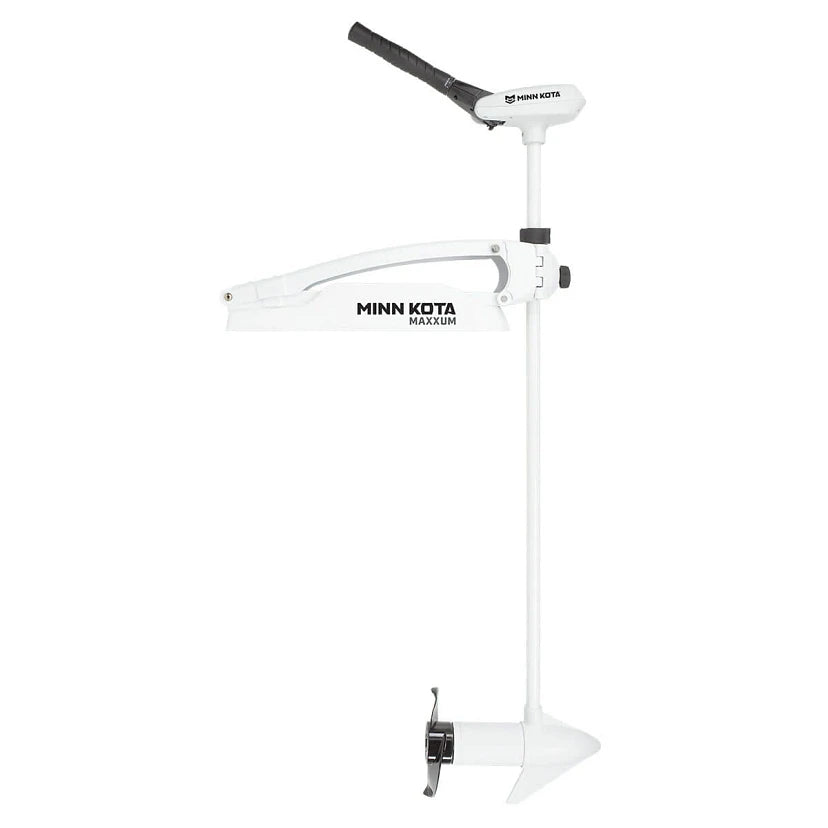

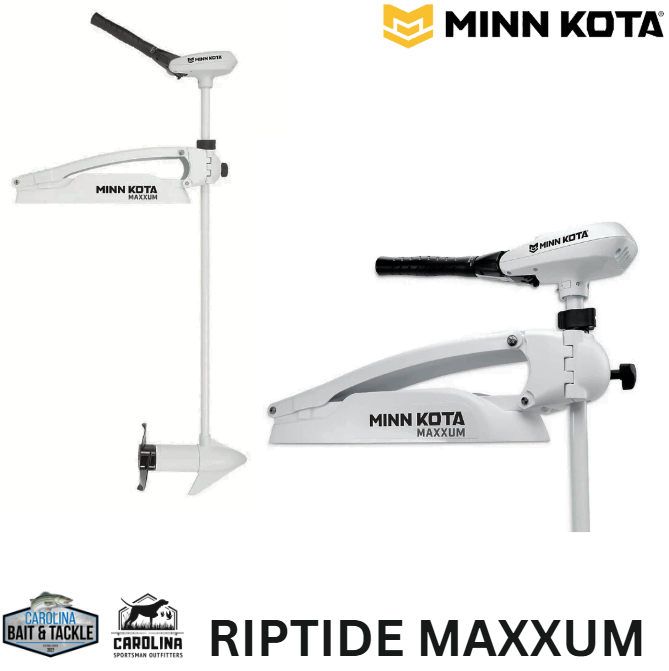

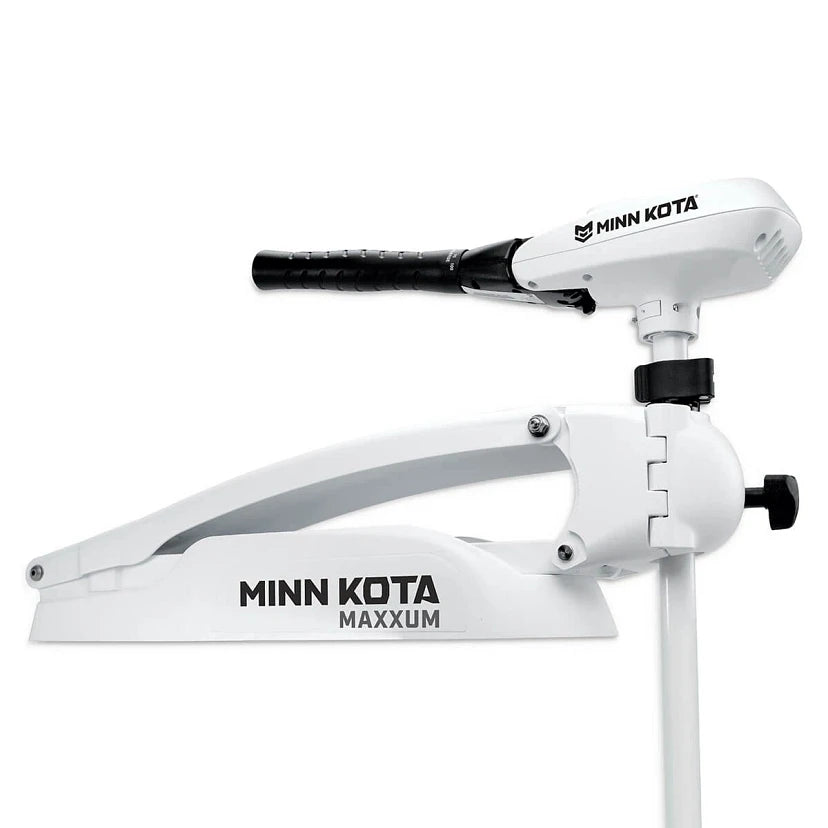

Minn Kota Riptide Maxxum Saltwater Cable-Steer Bow-Mount

The Minn Kota Riptide Maxxum is a saltwater-rated cable-steer bow-mount trolling motor with optional Bowguard collision protection. Riptide series uses stainless hardware and sealed electronics for inshore saltwater. Maxxum is the cable-steer mid-tier (between Riptide Transom and Riptide Terrova). Available in five configurations covering 42 inch and 52 inch shafts, 12V (55 lb thrust) or 24V (70 to 80 lb thrust), with optional Digital Maximizer and Bowguard.

Riptide Maxxum is the saltwater answer for inshore anglers who want bow-mount cable-steer at mid-tier pricing. Bowguard is meaningful in saltwater applications: when you bump a dock, oyster bar, or piling, Bowguard absorbs the impact instead of letting it crack the mounting bracket. Digital Maximizer extends battery runtime. The $1,400 top-tier variant (52 inch, 24V, with Maximizer and Bowguard) is the right Riptide Maxxum for serious inshore bay boat operators.

Minn Kota line context: Endura/Riptide Transom (transom-mount, hand-tiller, $350-$1,250). Edge (entry bow-mount, cable-steer, $400-$800). Pontoon (pontoon-specific, $1,000-$1,150). Powerdrive (mid-tier electric-steer, optional sonar/OBN, $830-$1,750). Maxxum/Riptide Maxxum (cable-steer mid-tier, $900-$1,400). Fortrex/Riptide Fortrex (cable-steer premium, $1,600-$1,900). Terrova/Riptide Terrova (electric-steer with i-Pilot GPS, $1,750-$2,999). Ulterra (Terrova plus AutoStow/AutoDeploy, $3,200). Ultrex (electric-steer with Spot-Lock and CoPilot foot pedal, $2,700-$3,599). Quest series (premium current generation: Terrova Quest, Ultrex Quest, Ulterra Quest, Riptide Instinct Quest, $3,700-$6,400). Saltwater Riptide series uses stainless hardware and sealed electronics throughout.

Ecosystem and integration: Minn Kota integrates with Humminbird fishfinders via One-Boat Network (OBN), Humminbird's Garmin-Marine-Network equivalent. OBN-compatible variants share GPS waypoints, AutoPilot heading, and control between trolling motor and Humminbird HELIX G4N, XPLORE, and APEX fishfinders. For Lowrance ecosystems use Lowrance Ghost or Recon trolling motors. For Garmin ecosystems use Garmin Force or Force Kraken. The trolling motor choice usually drives the fishfinder ecosystem choice for serious anglers building integrated rigs.

Key Features

• ✅ Saltwater Construction. Stainless hardware, sealed electronics
• ✅ Cable-Steer Bow-Mount. Mechanical foot pedal steering
• ✅ Optional Bowguard. Collision protection for inshore obstructions
• ✅ Optional Digital Maximizer. Brushless motor for extended runtime
• ✅ Available Shaft Lengths. 42 inch and 52 inch
• ✅ Voltage Options. 12V (55 lb thrust), 24V (70 or 80 lb thrust)
• ✅ Composite Shaft. Indestructible, lifetime warranty
• ✅ 2-Year Saltwater Warranty
• ❌ Cable-Steer Mechanical Only. No electric steering, no i-Pilot GPS. For GPS spot-lock see Riptide Terrova
• ❌ No Built-In Sonar. For integrated transducer see Powerdrive Dual Spectrum CHIRP variants (freshwater)
• ❌ Inshore Saltwater Only. Not designed for offshore open ocean

Configuration Guide

The Riptide Maxxum comes in five configurations across three feature axes: shaft length, voltage/thrust, and Digital Maximizer + Bowguard combination:

• 42 inch shaft, 12V 55 lb thrust, no Maximizer, no Bowguard ($900). Entry Maxxum. Right for smaller inshore boats 18-19 ft on tight budget. No collision protection, no extended runtime.
• 52 inch shaft, 12V 55 lb thrust, no Maximizer, no Bowguard ($950). Longer shaft for taller bow boats. Same baseline features.
• 52 inch shaft, 24V 70 lb thrust, no Maximizer, no Bowguard ($1,000). Step up to 24V for larger boats 20-22 ft.
• 52 inch shaft, 24V 80 lb thrust, with Maximizer, with Bowguard ($1,400). Top-tier configuration. 80 lb thrust, Maximizer brushless motor for runtime, Bowguard for collision protection. The serious inshore bay boat configuration.
• 52 inch shaft, 24V 80 lb thrust, with Maximizer, no Bowguard ($1,400). Same price as variant above but skips Bowguard. Available for buyers who don't want collision protection or who installed it separately.

Bowguard value: Saltwater anglers running inshore around docks, oyster bars, mangroves, and grass flats hit obstructions regularly. Bowguard absorbs collisions and protects the trolling motor mount from impact damage. Worth the upgrade for serious inshore use.

Who This Is For

This trolling motor is best for inshore saltwater bay boat owners (18 to 22 ft), redfish and speckled trout anglers, snook fishermen, flats boat owners stepping up from transom-mount, and saltwater anglers wanting cable-steer bow-mount at mid-tier price.

Specifications

• Mounting: Bow-mount
• Control: Cable-steer foot pedal
• Water Type: Saltwater (inshore and bay)
• Variants Available: 5
• Price Range: $899 to $1,399 depending on configuration
• Shaft Material: Composite, indestructible, lifetime warranty
• Warranty: 2-year saltwater plus lifetime composite shaft

Compatibility Reference

• Battery: Standard 12V deep-cycle for 12V variants, two 12V batteries in series for 24V, three for 36V. Lithium compatible
• Sonar: Universal Sonar 2 (US2) compatible. Add separate transducer for fishfinder integration.
• Networking: Standard models do not include networking. For OBN integration step up to Terrova or higher.
• Mount: Compatible with most boat bow casting decks (standard bow casting deck)

Warranty

Covered by Minn Kota's 2-year saltwater limited warranty (Riptide series), plus lifetime warranty on the composite shaft against breakage. Carolina Sportsman Outfitters can help with warranty claims, parts orders, and post-purchase setup. Call 252-431-6001.

Frequently Asked Questions

What's the difference between bow-mount and transom-mount?

Bow-mount trolling motors mount on the front (bow) of the boat. The angler stands or sits in the bow and the motor pulls the boat through the water. Better for boat control because the trolling motor is in front. Most bass and crappie anglers prefer bow-mount. Transom-mount trolling motors mount on the back (transom) and push the boat. Cheaper, simpler, used on small boats and as secondary motors. Transom-mount is hand-tiller controlled (you stand at the back to steer).

How do I choose shaft length?

Measure from the waterline to the top of your bow casting deck (or transom for transom-mount). Add 16 to 18 inches for proper prop submersion when running. Common bass boat sizing: 16-17 ft uses 36-45 inch, 18-20 ft uses 45-52 inch, 20-22 ft uses 52-62 inch, pontoons usually need 48-52+ inch due to higher freeboard. If between sizes, go longer (you can always run a longer shaft shallow but can't extend a short shaft).

How do I choose voltage and thrust?

12V (45-55 lb thrust) for boats under 18 ft, single 12V battery. 24V (70-80 lb thrust) for boats 18-21 ft, requires two 12V batteries in series. 36V (112 lb thrust) for boats 21+ ft or heavy wind/current applications, requires three 12V batteries. Higher voltage means more thrust AND longer runtime per amp-hour drawn. Tournament bass anglers running aggressive trolling motor use typically choose 36V to ensure runtime.

What is Digital Maximizer?

Minn Kota's brushless motor technology. Digital Maximizer motors are more efficient than standard brushed motors, providing longer runtime per battery charge. Most current Minn Kota motors include Digital Maximizer standard. Older or budget variants may skip it. Worth the upgrade if available.

What is i-Pilot vs i-Pilot Link?

i-Pilot is Minn Kota's built-in GPS spot-lock and AutoPilot system, controlled from a wireless remote. Spot-Lock holds position over fish, AutoPilot maintains heading. Available on Terrova, Ulterra, Ultrex, and Quest variants. i-Pilot Link is the integration with compatible Humminbird fishfinders, sharing GPS waypoints, displaying spot-lock coordinates on the fishfinder screen, and unified control. i-Pilot Link requires both a Minn Kota with i-Pilot Link and a Humminbird G4N or newer fishfinder.

What is One-Boat Network (OBN)?

Humminbird's networking system, equivalent to Garmin Marine Network. OBN connects compatible Minn Kota trolling motors to Humminbird HELIX G4N, XPLORE, and APEX fishfinders. Data sharing includes GPS waypoints, AutoPilot heading display, MEGA Live 2 sonar from the trolling motor mount (on supported variants), and unified control. Significant for Humminbird ecosystem owners.

Saltwater (Riptide) vs Freshwater models?

Riptide series uses stainless hardware, sealed electronics, and saltwater-resistant powerheads. Standard freshwater Minn Kota models will corrode quickly in saltwater (months, not years). For inshore saltwater applications (bays, sounds, estuaries) Riptide series is required. For offshore open ocean, even Riptide is not appropriate (offshore boats use other propulsion). Riptide carries a 2-year saltwater warranty.

Lithium vs lead-acid batteries?

Lithium batteries are 60-70% lighter and provide consistent voltage throughout discharge (no thrust drop-off as battery drains). Cost 2-3x more upfront but typically last 5-10x longer. For tournament anglers and serious bass anglers, lithium is increasingly standard. For recreational use and budget buyers, deep-cycle lead-acid (AGM) is still appropriate. Always match battery group size to your motor voltage requirements.

How long does the warranty last?

Standard Minn Kota freshwater warranty is 2 years. Saltwater Riptide warranty is 2 years (saltwater-rated). Composite shaft has lifetime warranty against breakage (the shaft itself is indestructible). Electronics have separate coverage. Carolina Sportsman Outfitters can help with warranty claims and repairs.

Do I need professional installation?

Bow-mount trolling motors are typically DIY-installable for handy anglers, 2-4 hours including the bow mounting plate, battery wiring, and breaker. For OBN integration with Humminbird, NMEA 2000 networking adds complexity. Professional install ($200-$500) is appropriate for first-time installers, complex multi-battery setups, or boats requiring bow casting deck modifications. Carolina Sportsman Outfitters coordinates installer referrals.
