Minn Kota - Pontoon Trolling Motor

🚤 Pontoon-specific trolling motor with extended shaft and pontoon mounting bracket. Three configurations from $999 to $1149.

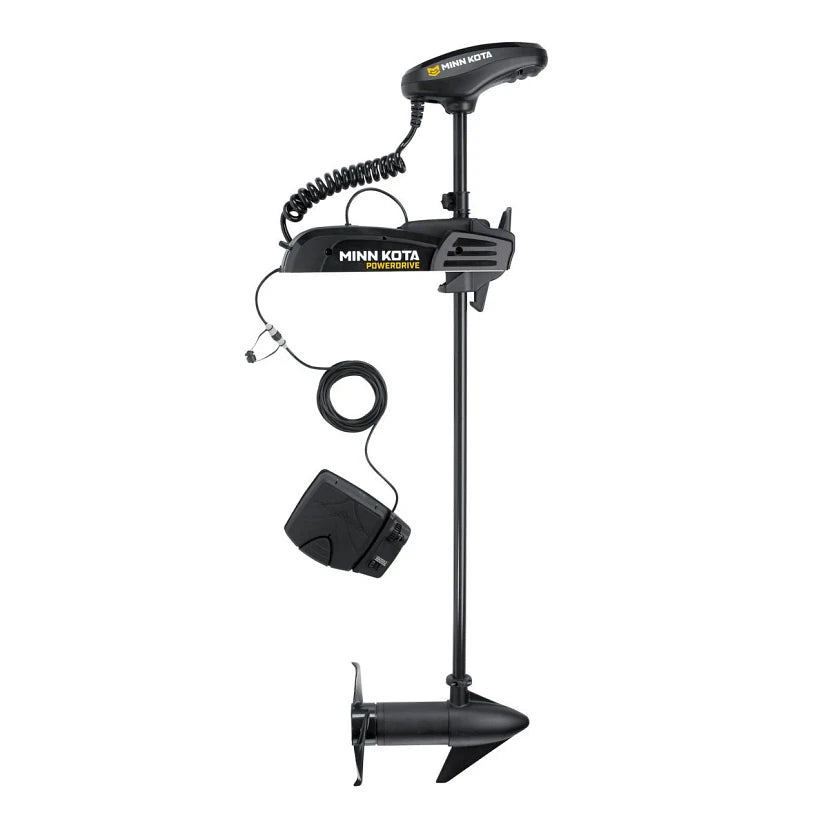

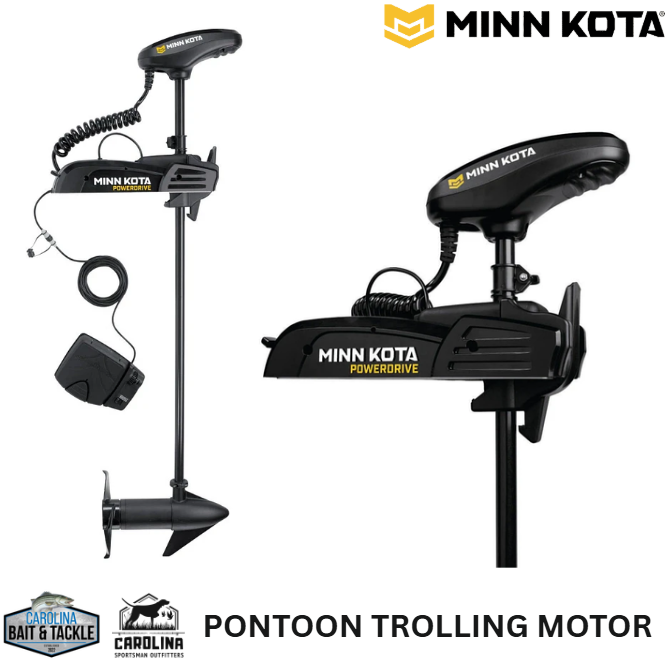

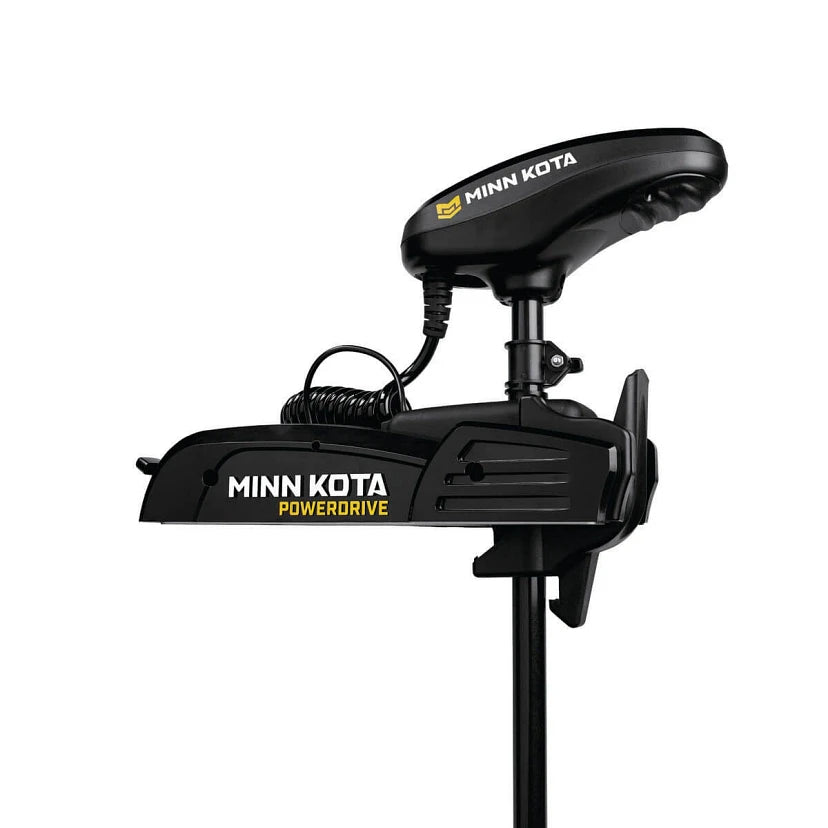

Minn Kota Pontoon Trolling Motor

The Minn Kota Pontoon trolling motor is purpose-built for pontoon boats, which have unique mounting requirements (toon-rail mounting instead of bow casting deck) and require longer shafts due to higher freeboard. Available in three configurations covering 48 inch and 52 inch shafts, foot pedal or hand-tiller control, and 12V (55 lb thrust) or 24V (70 lb thrust) voltage. Most variants include Digital Maximizer brushless motor for extended runtime on pontoon boat 12V or 24V battery banks.

Pontoon owners often try to make a standard bow-mount trolling motor work and end up with mounting issues, inadequate shaft length, or steering problems. The Minn Kota Pontoon is engineered for pontoon use specifically: longer shafts (48-52 inch standard, can extend further), reinforced mounting bracket designed for pontoon toon-rail configurations, and tuning for the higher water resistance of pontoon hulls. For serious pontoon fishing or for pontoon owners who want hands-free control of position while fishing, this is the right Minn Kota.

Minn Kota line context: Endura/Riptide Transom (transom-mount, hand-tiller, $350-$1,250). Edge (entry bow-mount, cable-steer, $400-$800). Pontoon (pontoon-specific, $1,000-$1,150). Powerdrive (mid-tier electric-steer, optional sonar/OBN, $830-$1,750). Maxxum/Riptide Maxxum (cable-steer mid-tier, $900-$1,400). Fortrex/Riptide Fortrex (cable-steer premium, $1,600-$1,900). Terrova/Riptide Terrova (electric-steer with i-Pilot GPS, $1,750-$2,999). Ulterra (Terrova plus AutoStow/AutoDeploy, $3,200). Ultrex (electric-steer with Spot-Lock and CoPilot foot pedal, $2,700-$3,599). Quest series (premium current generation: Terrova Quest, Ultrex Quest, Ulterra Quest, Riptide Instinct Quest, $3,700-$6,400). Saltwater Riptide series uses stainless hardware and sealed electronics throughout.

Ecosystem and integration: Minn Kota integrates with Humminbird fishfinders via One-Boat Network (OBN), Humminbird's Garmin-Marine-Network equivalent. OBN-compatible variants share GPS waypoints, AutoPilot heading, and control between trolling motor and Humminbird HELIX G4N, XPLORE, and APEX fishfinders. For Lowrance ecosystems use Lowrance Ghost or Recon trolling motors. For Garmin ecosystems use Garmin Force or Force Kraken. The trolling motor choice usually drives the fishfinder ecosystem choice for serious anglers building integrated rigs.

Key Features

• ✅ Pontoon-Specific Mounting. Designed for toon-rail mounting, not bass boat bow casting deck
• ✅ Extended Shaft Lengths. 48 inch and 52 inch standard for higher pontoon freeboard
• ✅ Foot Pedal or Hand-Tiller. Two foot pedal variants, one hand-tiller
• ✅ Voltage Options. 12V (55 lb thrust) or 24V (70 lb thrust)
• ✅ Digital Maximizer (Most Variants). Brushless motor for extended runtime
• ✅ Composite Shaft. Indestructible, lifetime warranty
• ✅ Reinforced Mount. Built for pontoon hull dynamics
• ✅ Lever-Lock Bracket. Easy stow and deploy
• ❌ Cable-Steer Mechanical Only. No electric steering or GPS. For pontoons wanting i-Pilot, see Terrova or Ulterra
• ❌ No Built-In Sonar. For integrated transducer see Powerdrive Dual Spectrum CHIRP
• ❌ Hand-Tiller Variant Lacks Digital Maximizer. Standard motor, less runtime per charge

Configuration Guide

The Pontoon comes in three configurations:

• 48 inch shaft, foot pedal, 12V 55 lb thrust, with Digital Maximizer ($1,000). Most common configuration. Right for pontoons up to 24 ft. Foot pedal for hands-free position control. Digital Maximizer for extended battery runtime.
• 48 inch shaft, foot pedal, 24V 70 lb thrust, with Digital Maximizer ($1,150). Step up to 24V for larger pontoons (24-28 ft) or windier conditions. Requires two 12V batteries.
• 52 inch shaft, hand-tiller, 12V 55 lb thrust, no Digital Maximizer ($1,000). Hand-tiller variant. Longer 52 inch shaft for higher pontoon freeboard. Same price as the 48 inch foot-pedal but trades foot control for longer reach. No Digital Maximizer means standard motor.

Pontoon shaft sizing: Measure from waterline to top of pontoon deck. Most pontoons need 48 to 52 inch shafts because the deck sits higher than a bass boat bow. If your pontoon has unusually high freeboard or you want extra prop depth, longer shafts are available through Minn Kota direct.

Who This Is For

This trolling motor is best for pontoon boat owners who fish, especially crappie and bass anglers on pontoons; pontoon owners wanting hands-free position control; and anglers using pontoons for cocktail-cruising plus fishing.

Specifications

• Mounting: Bow-mount
• Control: Foot pedal or hand remote (varies by configuration)
• Water Type: Freshwater
• Variants Available: 3
• Price Range: $999 to $1,149 depending on configuration
• Shaft Material: Composite, indestructible, lifetime warranty
• Warranty: 2-year freshwater plus lifetime composite shaft

Compatibility Reference

• Battery: Standard 12V deep-cycle for 12V variants, two 12V batteries in series for 24V, three for 36V. Lithium compatible
• Sonar: Universal Sonar 2 (US2) compatible. Add separate transducer for fishfinder integration.
• Networking: Standard models do not include networking. For OBN integration step up to Terrova or higher.
• Mount: Compatible with most boat bow casting decks (or pontoon toon-rail)

Warranty

Covered by Minn Kota's 2-year freshwater limited warranty, plus lifetime warranty on the composite shaft against breakage. Carolina Sportsman Outfitters can help with warranty claims, parts orders, and post-purchase setup. Call 252-431-6001.

Frequently Asked Questions

What's the difference between bow-mount and transom-mount?

Bow-mount trolling motors mount on the front (bow) of the boat. The angler stands or sits in the bow and the motor pulls the boat through the water. Better for boat control because the trolling motor is in front. Most bass and crappie anglers prefer bow-mount. Transom-mount trolling motors mount on the back (transom) and push the boat. Cheaper, simpler, used on small boats and as secondary motors. Transom-mount is hand-tiller controlled (you stand at the back to steer).

How do I choose shaft length?

Measure from the waterline to the top of your bow casting deck (or transom for transom-mount). Add 16 to 18 inches for proper prop submersion when running. Common bass boat sizing: 16-17 ft uses 36-45 inch, 18-20 ft uses 45-52 inch, 20-22 ft uses 52-62 inch, pontoons usually need 48-52+ inch due to higher freeboard. If between sizes, go longer (you can always run a longer shaft shallow but can't extend a short shaft).

How do I choose voltage and thrust?

12V (45-55 lb thrust) for boats under 18 ft, single 12V battery. 24V (70-80 lb thrust) for boats 18-21 ft, requires two 12V batteries in series. 36V (112 lb thrust) for boats 21+ ft or heavy wind/current applications, requires three 12V batteries. Higher voltage means more thrust AND longer runtime per amp-hour drawn. Tournament bass anglers running aggressive trolling motor use typically choose 36V to ensure runtime.

What is Digital Maximizer?

Minn Kota's brushless motor technology. Digital Maximizer motors are more efficient than standard brushed motors, providing longer runtime per battery charge. Most current Minn Kota motors include Digital Maximizer standard. Older or budget variants may skip it. Worth the upgrade if available.

What is i-Pilot vs i-Pilot Link?

i-Pilot is Minn Kota's built-in GPS spot-lock and AutoPilot system, controlled from a wireless remote. Spot-Lock holds position over fish, AutoPilot maintains heading. Available on Terrova, Ulterra, Ultrex, and Quest variants. i-Pilot Link is the integration with compatible Humminbird fishfinders, sharing GPS waypoints, displaying spot-lock coordinates on the fishfinder screen, and unified control. i-Pilot Link requires both a Minn Kota with i-Pilot Link and a Humminbird G4N or newer fishfinder.

What is One-Boat Network (OBN)?

Humminbird's networking system, equivalent to Garmin Marine Network. OBN connects compatible Minn Kota trolling motors to Humminbird HELIX G4N, XPLORE, and APEX fishfinders. Data sharing includes GPS waypoints, AutoPilot heading display, MEGA Live 2 sonar from the trolling motor mount (on supported variants), and unified control. Significant for Humminbird ecosystem owners.

Saltwater (Riptide) vs Freshwater models?

Riptide series uses stainless hardware, sealed electronics, and saltwater-resistant powerheads. Standard freshwater Minn Kota models will corrode quickly in saltwater (months, not years). For inshore saltwater applications (bays, sounds, estuaries) Riptide series is required. For offshore open ocean, even Riptide is not appropriate (offshore boats use other propulsion). Riptide carries a 2-year saltwater warranty.

Lithium vs lead-acid batteries?

Lithium batteries are 60-70% lighter and provide consistent voltage throughout discharge (no thrust drop-off as battery drains). Cost 2-3x more upfront but typically last 5-10x longer. For tournament anglers and serious bass anglers, lithium is increasingly standard. For recreational use and budget buyers, deep-cycle lead-acid (AGM) is still appropriate. Always match battery group size to your motor voltage requirements.

How long does the warranty last?

Standard Minn Kota freshwater warranty is 2 years. Saltwater Riptide warranty is 2 years (saltwater-rated). Composite shaft has lifetime warranty against breakage (the shaft itself is indestructible). Electronics have separate coverage. Carolina Sportsman Outfitters can help with warranty claims and repairs.

Do I need professional installation?

Bow-mount trolling motors are typically DIY-installable for handy anglers, 2-4 hours including the bow mounting plate, battery wiring, and breaker. For OBN integration with Humminbird, NMEA 2000 networking adds complexity. Professional install ($200-$500) is appropriate for first-time installers, complex multi-battery setups, or boats requiring bow casting deck modifications. Carolina Sportsman Outfitters coordinates installer referrals.
