Minn Kota - Fortrex

🚤 Premium cable-steer freshwater bow-mount. Three configurations from $1699 to $1899 covering 45 and 52 inch shafts and 24V/36V thrust.

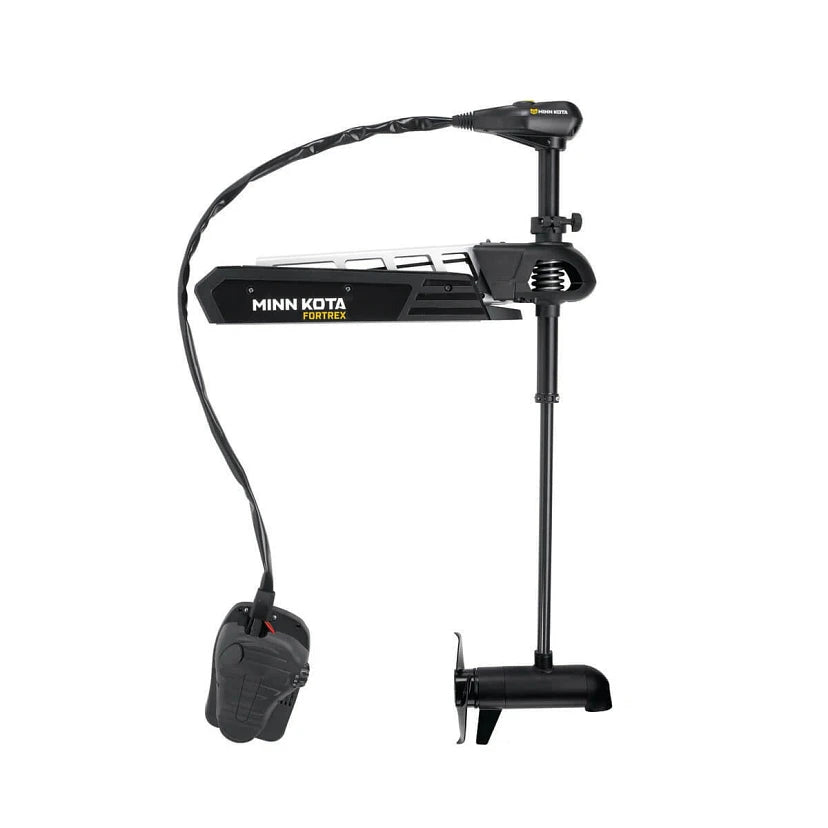

Minn Kota Fortrex Cable-Steer Bow-Mount Trolling Motor

The Minn Kota Fortrex is the freshwater Fortrex, the premium cable-steer bow-mount above Powerdrive and below Terrova in the freshwater Minn Kota line. Cable-steer purists prefer Fortrex for the mechanical responsiveness and direct-drive feel. Three configurations covering 45 and 52 inch shafts, 24V (80 lb thrust) and 36V (112 lb thrust). No 12V option (Fortrex starts at 24V). Premium build quality, indestructible composite shaft, lifetime warranty.

Fortrex is the right Minn Kota for freshwater bass anglers who want maximum cable-steer responsiveness. The mechanical foot pedal directly drives the steering through cables, giving zero lag and a tactile feel that electric-steer Powerdrive and Terrova don't replicate. For tournament bass anglers who pull and turn aggressively, Fortrex is preferred. Compared to Terrova ($2,000-$3,000), Fortrex saves $400-$1,000 by skipping i-Pilot GPS and electric steering. The 36V 112 lb thrust variant ($1,900) is the top-tier Fortrex for serious tournament bass boats 21-22 ft.

Minn Kota line context: Endura/Riptide Transom (transom-mount, hand-tiller, $350-$1,250). Edge (entry bow-mount, cable-steer, $400-$800). Pontoon (pontoon-specific, $1,000-$1,150). Powerdrive (mid-tier electric-steer, optional sonar/OBN, $830-$1,750). Maxxum/Riptide Maxxum (cable-steer mid-tier, $900-$1,400). Fortrex/Riptide Fortrex (cable-steer premium, $1,600-$1,900). Terrova/Riptide Terrova (electric-steer with i-Pilot GPS, $1,750-$2,999). Ulterra (Terrova plus AutoStow/AutoDeploy, $3,200). Ultrex (electric-steer with Spot-Lock and CoPilot foot pedal, $2,700-$3,599). Quest series (premium current generation: Terrova Quest, Ultrex Quest, Ulterra Quest, Riptide Instinct Quest, $3,700-$6,400). Saltwater Riptide series uses stainless hardware and sealed electronics throughout.

Ecosystem and integration: Minn Kota integrates with Humminbird fishfinders via One-Boat Network (OBN), Humminbird's Garmin-Marine-Network equivalent. OBN-compatible variants share GPS waypoints, AutoPilot heading, and control between trolling motor and Humminbird HELIX G4N, XPLORE, and APEX fishfinders. For Lowrance ecosystems use Lowrance Ghost or Recon trolling motors. For Garmin ecosystems use Garmin Force or Force Kraken. The trolling motor choice usually drives the fishfinder ecosystem choice for serious anglers building integrated rigs.

Key Features

• ✅ Premium Cable-Steer. Mechanical foot pedal, direct-drive responsiveness
• ✅ Available Shaft Lengths. 45 and 52 inch
• ✅ Voltage Options. 24V (80 lb thrust), 36V (112 lb thrust)
• ✅ 36V Available. Highest thrust available in cable-steer freshwater line
• ✅ Composite Shaft. Indestructible, lifetime warranty
• ✅ Mono-Tube Mount. Reinforced mounting bracket
• ✅ Cool, Quiet Power. Low noise, minimal heat
• ✅ Lever-Lock Bracket. Easy stow and deploy
• ❌ Cable-Steer Mechanical Only. No i-Pilot GPS, no electric steering. For GPS see Terrova or Ultrex tiers
• ❌ No 12V Configuration. Lowest tier is 24V. For 12V freshwater see Edge or Powerdrive
• ❌ No 36V 52 inch Variant. For 36V at 52 inch step up to Terrova or Ultrex
• ❌ No Built-In Sonar. For integrated transducer see Powerdrive Dual Spectrum CHIRP

Configuration Guide

The Fortrex comes in three configurations:

• 45 inch shaft, 24V 80 lb thrust ($1,700). Standard configuration. Right for bass boats 18-20 ft.
• 52 inch shaft, 24V 80 lb thrust ($1,750). Longer 52 inch shaft for taller bow heights. Right for bass boats 19-21 ft.
• 45 inch shaft, 36V 112 lb thrust ($1,900). Top-tier Fortrex. 36V requires three 12V batteries. Highest thrust in the Fortrex line. Right for tournament bass boats 21-22 ft running heavy current or wind.

No 36V 52 inch? Correct. The 36V Fortrex is only available in 45 inch shaft. For 52 inch 36V, step up to Terrova (electric steer, includes i-Pilot) or Ultrex (electric steer, includes Spot-Lock and CoPilot).

Who This Is For

This trolling motor is best for tournament bass anglers preferring mechanical cable-steer, traditional Minn Kota loyalists, BFL and B.A.S.S. Opens participants on tighter budgets, and serious freshwater anglers who don't use GPS spot-lock features.

Specifications

• Mounting: Bow-mount
• Control: Cable-steer foot pedal
• Water Type: Freshwater
• Variants Available: 3
• Price Range: $1,699 to $1,899 depending on configuration
• Shaft Material: Composite, indestructible, lifetime warranty
• Warranty: 2-year freshwater plus lifetime composite shaft

Compatibility Reference

• Battery: Standard 12V deep-cycle for 12V variants, two 12V batteries in series for 24V, three for 36V. Lithium compatible
• Sonar: Universal Sonar 2 (US2) compatible. Add separate transducer for fishfinder integration.
• Networking: Standard models do not include networking. For OBN integration step up to Terrova or higher.
• Mount: Compatible with most boat bow casting decks (standard bow casting deck)

Warranty

Covered by Minn Kota's 2-year freshwater limited warranty, plus lifetime warranty on the composite shaft against breakage. Carolina Sportsman Outfitters can help with warranty claims, parts orders, and post-purchase setup. Call 252-431-6001.

Frequently Asked Questions

What's the difference between bow-mount and transom-mount?

Bow-mount trolling motors mount on the front (bow) of the boat. The angler stands or sits in the bow and the motor pulls the boat through the water. Better for boat control because the trolling motor is in front. Most bass and crappie anglers prefer bow-mount. Transom-mount trolling motors mount on the back (transom) and push the boat. Cheaper, simpler, used on small boats and as secondary motors. Transom-mount is hand-tiller controlled (you stand at the back to steer).

How do I choose shaft length?

Measure from the waterline to the top of your bow casting deck (or transom for transom-mount). Add 16 to 18 inches for proper prop submersion when running. Common bass boat sizing: 16-17 ft uses 36-45 inch, 18-20 ft uses 45-52 inch, 20-22 ft uses 52-62 inch, pontoons usually need 48-52+ inch due to higher freeboard. If between sizes, go longer (you can always run a longer shaft shallow but can't extend a short shaft).

How do I choose voltage and thrust?

12V (45-55 lb thrust) for boats under 18 ft, single 12V battery. 24V (70-80 lb thrust) for boats 18-21 ft, requires two 12V batteries in series. 36V (112 lb thrust) for boats 21+ ft or heavy wind/current applications, requires three 12V batteries. Higher voltage means more thrust AND longer runtime per amp-hour drawn. Tournament bass anglers running aggressive trolling motor use typically choose 36V to ensure runtime.

What is Digital Maximizer?

Minn Kota's brushless motor technology. Digital Maximizer motors are more efficient than standard brushed motors, providing longer runtime per battery charge. Most current Minn Kota motors include Digital Maximizer standard. Older or budget variants may skip it. Worth the upgrade if available.

What is i-Pilot vs i-Pilot Link?

i-Pilot is Minn Kota's built-in GPS spot-lock and AutoPilot system, controlled from a wireless remote. Spot-Lock holds position over fish, AutoPilot maintains heading. Available on Terrova, Ulterra, Ultrex, and Quest variants. i-Pilot Link is the integration with compatible Humminbird fishfinders, sharing GPS waypoints, displaying spot-lock coordinates on the fishfinder screen, and unified control. i-Pilot Link requires both a Minn Kota with i-Pilot Link and a Humminbird G4N or newer fishfinder.

What is One-Boat Network (OBN)?

Humminbird's networking system, equivalent to Garmin Marine Network. OBN connects compatible Minn Kota trolling motors to Humminbird HELIX G4N, XPLORE, and APEX fishfinders. Data sharing includes GPS waypoints, AutoPilot heading display, MEGA Live 2 sonar from the trolling motor mount (on supported variants), and unified control. Significant for Humminbird ecosystem owners.

Saltwater (Riptide) vs Freshwater models?

Riptide series uses stainless hardware, sealed electronics, and saltwater-resistant powerheads. Standard freshwater Minn Kota models will corrode quickly in saltwater (months, not years). For inshore saltwater applications (bays, sounds, estuaries) Riptide series is required. For offshore open ocean, even Riptide is not appropriate (offshore boats use other propulsion). Riptide carries a 2-year saltwater warranty.

Lithium vs lead-acid batteries?

Lithium batteries are 60-70% lighter and provide consistent voltage throughout discharge (no thrust drop-off as battery drains). Cost 2-3x more upfront but typically last 5-10x longer. For tournament anglers and serious bass anglers, lithium is increasingly standard. For recreational use and budget buyers, deep-cycle lead-acid (AGM) is still appropriate. Always match battery group size to your motor voltage requirements.

How long does the warranty last?

Standard Minn Kota freshwater warranty is 2 years. Saltwater Riptide warranty is 2 years (saltwater-rated). Composite shaft has lifetime warranty against breakage (the shaft itself is indestructible). Electronics have separate coverage. Carolina Sportsman Outfitters can help with warranty claims and repairs.

Do I need professional installation?

Bow-mount trolling motors are typically DIY-installable for handy anglers, 2-4 hours including the bow mounting plate, battery wiring, and breaker. For OBN integration with Humminbird, NMEA 2000 networking adds complexity. Professional install ($200-$500) is appropriate for first-time installers, complex multi-battery setups, or boats requiring bow casting deck modifications. Carolina Sportsman Outfitters coordinates installer referrals.

Financing available. No credit needed. Apply at checkout for instant approval. Military and First Responders are encouraged to use credentials in the cart section before checking out.

Carolina Sportsman Outfitters has been outfitting anglers with Minn Kota trolling motors since 2015. We help customers pick the right shaft length, voltage, and feature set for their boat and fishing style. Call 252-431-6001 for pre-purchase configuration questions or installer referrals.
