Minn Kota - Edge

🚤 Entry bow-mount freshwater trolling motor. Foot pedal or hand-tiller control. $399 to $799 across 8 configurations covering 36-52 inch shafts and 12V/24V thrust options.

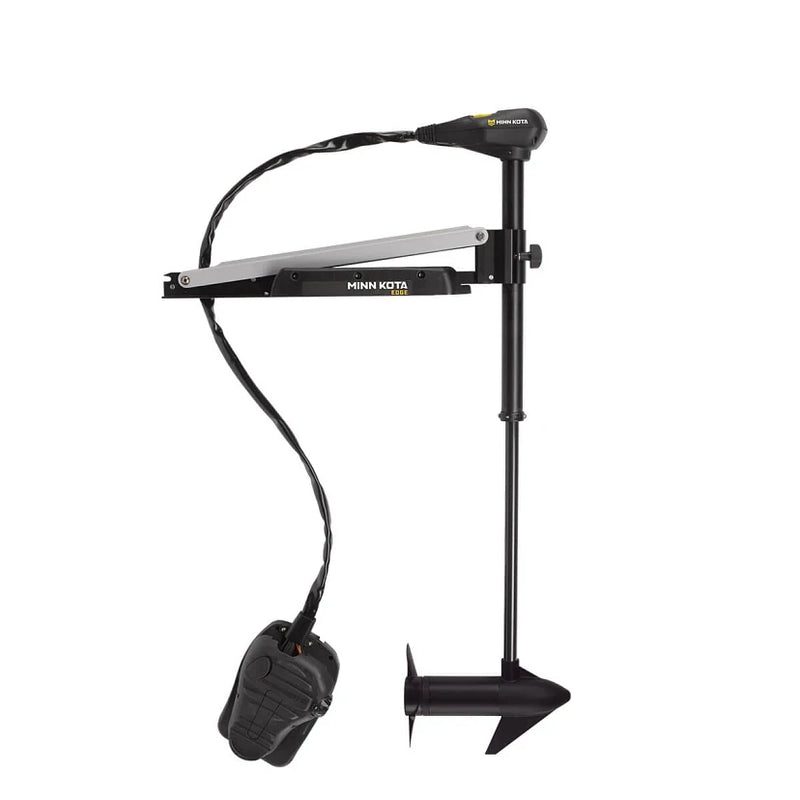

Minn Kota Edge Bow-Mount Trolling Motor

The Minn Kota Edge is Minn Kota's entry bow-mount trolling motor for freshwater. Above the Endura transom-mount and below the Powerdrive in the Minn Kota lineup. Edge offers the bow-mount form factor (better boat control, angler stays in the bow) at entry-tier pricing. Available in 8 configurations covering 36 inch, 45 inch, and 52 inch shaft lengths, foot pedal or hand-tiller control, and 12V (45 or 55 lb thrust) or 24V (70 lb thrust). Cable-steer foot pedal control (mechanical, not electric, no GPS).

The Edge is the right Minn Kota for anglers who want bow-mount benefits at the lowest price tier. Compared to Powerdrive ($830 to $1,750), Edge saves $200 to $700 by skipping electric steering, GPS spot-lock (i-Pilot), and built-in sonar options. Cable-steer foot pedal works mechanically: pushing the pedal turns the motor head physically. No batteries in the steering, no learning curve, just direct control. For freshwater anglers on small bass boats and jon boats who want bow-mount cable-steer at entry pricing, Edge is the right tier.

Minn Kota line context: Endura/Riptide Transom (transom-mount, hand-tiller, $350-$1,250). Edge (entry bow-mount, cable-steer, $400-$800). Pontoon (pontoon-specific, $1,000-$1,150). Powerdrive (mid-tier electric-steer, optional sonar/OBN, $830-$1,750). Maxxum/Riptide Maxxum (cable-steer mid-tier, $900-$1,400). Fortrex/Riptide Fortrex (cable-steer premium, $1,600-$1,900). Terrova/Riptide Terrova (electric-steer with i-Pilot GPS, $1,750-$2,999). Ulterra (Terrova plus AutoStow/AutoDeploy, $3,200). Ultrex (electric-steer with Spot-Lock and CoPilot foot pedal, $2,700-$3,599). Quest series (premium current generation: Terrova Quest, Ultrex Quest, Ulterra Quest, Riptide Instinct Quest, $3,700-$6,400). Saltwater Riptide series uses stainless hardware and sealed electronics throughout.

Ecosystem and integration: Minn Kota integrates with Humminbird fishfinders via One-Boat Network (OBN), Humminbird's Garmin-Marine-Network equivalent. OBN-compatible variants share GPS waypoints, AutoPilot heading, and control between trolling motor and Humminbird HELIX G4N, XPLORE, and APEX fishfinders. For Lowrance ecosystems use Lowrance Ghost or Recon trolling motors. For Garmin ecosystems use Garmin Force or Force Kraken. The trolling motor choice usually drives the fishfinder ecosystem choice for serious anglers building integrated rigs.

Key Features

• ✅ Bow-Mount Design. Mounts on bow, better boat control than transom-mount
• ✅ Foot Pedal or Hand-Tiller Control. Six configurations with foot pedal, two with hand-tiller
• ✅ Cable-Steer Foot Pedal. Mechanical steering (not electric), responsive direct control
• ✅ Available Shaft Lengths. 36, 45, and 52 inch options
• ✅ Voltage Options. 12V (45 or 55 lb thrust), 24V (70 lb thrust)
• ✅ Composite Shaft. Indestructible composite, lifetime warranty
• ✅ Mono-Tube Mount. Reinforced mounting bracket
• ✅ Cool, Quiet Power. Low noise, minimal heat
• ✅ Lever-Lock Bracket. Easy stow and deploy
• ❌ Cable-Steer Mechanical Only. No electric steering, no GPS spot-lock, no i-Pilot. For these features see Powerdrive or Terrova tiers
• ❌ No Built-In Sonar. For integrated CHIRP transducer see Powerdrive Dual Spectrum CHIRP variants
• ❌ Freshwater Only. For saltwater see Riptide series

Configuration Guide

The Edge comes in 8 configurations. Choose based on (1) shaft length matching your bow height/freeboard, (2) control type (foot pedal vs hand-tiller), and (3) voltage based on boat size:

• 36 inch shaft, foot pedal, 12V 45 lb thrust ($500). Smallest boat configuration. Right for jon boats and small skiffs under 16 ft with low bow height.
• 45 inch shaft, hand-tiller, 12V 45 lb thrust ($400). Cheapest Edge variant. Hand-tiller saves money over foot pedal for budget buyers who don't need foot-free operation.
• 45 inch shaft, foot pedal, 12V 45 lb thrust ($550). Most common configuration for small bass boats 16-17 ft. Foot pedal for hands-free fishing.
• 45 inch shaft, foot pedal, 12V 55 lb thrust ($650). 10 lb thrust upgrade over 45 lb variant. $100 more for stronger thrust on slightly larger boats.
• 45 inch shaft, foot pedal, 24V 70 lb thrust ($750). 24V tier requires two batteries. Right for boats 18-19 ft.
• 52 inch shaft, hand-tiller, 12V 55 lb thrust ($600). Longer shaft for taller bow heights. Hand-tiller variant.
• 52 inch shaft, foot pedal, 12V 55 lb thrust ($700). Most common 52 inch shaft configuration. Right for bass boats 17-19 ft with taller bow.
• 52 inch shaft, foot pedal, 24V 70 lb thrust ($800). Top-tier Edge. Largest configuration, right for 19-20 ft boats.

Shaft length guide: Measure from waterline to top of mounting deck on your bow. Add 16 to 18 inches to get the recommended shaft length. Common sizing: 16-17 ft bass boats use 45 inch, 18-19 ft bass boats use 52 inch.

Who This Is For

This trolling motor is best for kayak anglers stepping up to a small bass boat, jon boat owners, small bass boat owners (14 to 18 ft) on budget, recreational bass anglers, and Minn Kota buyers who want bow-mount form factor at entry tier.

Specifications

• Mounting: Bow-mount
• Control: Cable-steer foot pedal
• Water Type: Freshwater
• Variants Available: 8
• Price Range: $399 to $799 depending on configuration
• Shaft Material: Composite, indestructible, lifetime warranty
• Warranty: 2-year freshwater plus lifetime composite shaft

Compatibility Reference

• Battery: Standard 12V deep-cycle for 12V variants, two 12V batteries in series for 24V, three for 36V. Lithium compatible
• Sonar: Universal Sonar 2 (US2) compatible. Add separate transducer for fishfinder integration.
• Networking: Standard models do not include networking. For OBN integration step up to Terrova or higher.
• Mount: Compatible with most boat bow casting decks (standard bow casting deck)

Warranty

Covered by Minn Kota's 2-year freshwater limited warranty, plus lifetime warranty on the composite shaft against breakage. Carolina Sportsman Outfitters can help with warranty claims, parts orders, and post-purchase setup. Call 252-431-6001.

Frequently Asked Questions

What's the difference between bow-mount and transom-mount?

Bow-mount trolling motors mount on the front (bow) of the boat. The angler stands or sits in the bow and the motor pulls the boat through the water. Better for boat control because the trolling motor is in front. Most bass and crappie anglers prefer bow-mount. Transom-mount trolling motors mount on the back (transom) and push the boat. Cheaper, simpler, used on small boats and as secondary motors. Transom-mount is hand-tiller controlled (you stand at the back to steer).

How do I choose shaft length?

Measure from the waterline to the top of your bow casting deck (or transom for transom-mount). Add 16 to 18 inches for proper prop submersion when running. Common bass boat sizing: 16-17 ft uses 36-45 inch, 18-20 ft uses 45-52 inch, 20-22 ft uses 52-62 inch, pontoons usually need 48-52+ inch due to higher freeboard. If between sizes, go longer (you can always run a longer shaft shallow but can't extend a short shaft).

How do I choose voltage and thrust?

12V (45-55 lb thrust) for boats under 18 ft, single 12V battery. 24V (70-80 lb thrust) for boats 18-21 ft, requires two 12V batteries in series. 36V (112 lb thrust) for boats 21+ ft or heavy wind/current applications, requires three 12V batteries. Higher voltage means more thrust AND longer runtime per amp-hour drawn. Tournament bass anglers running aggressive trolling motor use typically choose 36V to ensure runtime.

What is Digital Maximizer?

Minn Kota's brushless motor technology. Digital Maximizer motors are more efficient than standard brushed motors, providing longer runtime per battery charge. Most current Minn Kota motors include Digital Maximizer standard. Older or budget variants may skip it. Worth the upgrade if available.

What is i-Pilot vs i-Pilot Link?

i-Pilot is Minn Kota's built-in GPS spot-lock and AutoPilot system, controlled from a wireless remote. Spot-Lock holds position over fish, AutoPilot maintains heading. Available on Terrova, Ulterra, Ultrex, and Quest variants. i-Pilot Link is the integration with compatible Humminbird fishfinders, sharing GPS waypoints, displaying spot-lock coordinates on the fishfinder screen, and unified control. i-Pilot Link requires both a Minn Kota with i-Pilot Link and a Humminbird G4N or newer fishfinder.

What is One-Boat Network (OBN)?

Humminbird's networking system, equivalent to Garmin Marine Network. OBN connects compatible Minn Kota trolling motors to Humminbird HELIX G4N, XPLORE, and APEX fishfinders. Data sharing includes GPS waypoints, AutoPilot heading display, MEGA Live 2 sonar from the trolling motor mount (on supported variants), and unified control. Significant for Humminbird ecosystem owners.

Saltwater (Riptide) vs Freshwater models?

Riptide series uses stainless hardware, sealed electronics, and saltwater-resistant powerheads. Standard freshwater Minn Kota models will corrode quickly in saltwater (months, not years). For inshore saltwater applications (bays, sounds, estuaries) Riptide series is required. For offshore open ocean, even Riptide is not appropriate (offshore boats use other propulsion). Riptide carries a 2-year saltwater warranty.

Lithium vs lead-acid batteries?

Lithium batteries are 60-70% lighter and provide consistent voltage throughout discharge (no thrust drop-off as battery drains). Cost 2-3x more upfront but typically last 5-10x longer. For tournament anglers and serious bass anglers, lithium is increasingly standard. For recreational use and budget buyers, deep-cycle lead-acid (AGM) is still appropriate. Always match battery group size to your motor voltage requirements.

How long does the warranty last?

Standard Minn Kota freshwater warranty is 2 years. Saltwater Riptide warranty is 2 years (saltwater-rated). Composite shaft has lifetime warranty against breakage (the shaft itself is indestructible). Electronics have separate coverage. Carolina Sportsman Outfitters can help with warranty claims and repairs.

Do I need professional installation?

Bow-mount trolling motors are typically DIY-installable for handy anglers, 2-4 hours including the bow mounting plate, battery wiring, and breaker. For OBN integration with Humminbird, NMEA 2000 networking adds complexity. Professional install ($200-$500) is appropriate for first-time installers, complex multi-battery setups, or boats requiring bow casting deck modifications. Carolina Sportsman Outfitters coordinates installer referrals.
