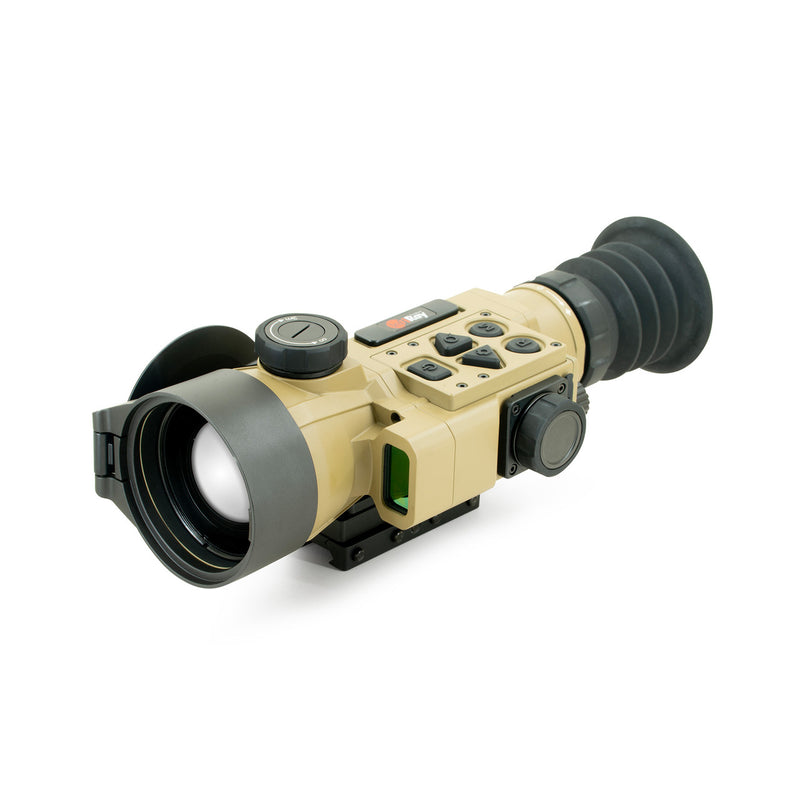

iRay Outdoor Hybrid Compact 3.5x 640x480 LRF 50mm

🔥 The iRay Hybrid Compact LRF (HCH50R) is the next evolution of the RICO HYBRID series , multi-function thermal that operates as a dedicated weapon sight, clip-on (in front of a day optic), or handheld monocular with integrated laser rangefinding. Industry-first 10µm sensor, 60Hz refresh rate, 1200-yard LRF, 3000+ yard detection.

Three Optics in One Unit

The HCH50R uses InfiRay's industry-first 10µm thermal sensor at 640×480 resolution, 44% more pixel density than 12µm sensors of the same physical size. The 50mm F/0.9 Germanium objective and 3.5× native magnification deliver an exceptionally bright thermal image. As a clip-on, it sits in front of your day scope (1-10× compatible). As a standalone weapon sight, it mounts via DLOC Picatinny. As a handheld monocular, you can scout terrain without removing it from the rifle.

What Hunters Use the Hybrid Compact LRF For

• 🐗 Hog hunting, Clip on to your LPVO during the day, sight directly through the unit at night, range targets through the optic. One unit, every scenario.
• 🦊 Predator hunting, Multi-function versatility with built-in LRF. Detect, range, engage in one workflow.
• 🏠 Property defense, Premium multi-role thermal optic for ranches, farms, and rural properties.
• 🪖 Tactical applications, Magnesium IP67 housing and DLOC mount built for hard use.

Specs

• ✅ 640×480 thermal sensor at industry-first 10µm pixel pitch
• ✅ ≤15 mK NETD thermal sensitivity
• ✅ 50mm F/0.9 Germanium objective
• ✅ 3.5× native optical magnification, 8× stepped digital zoom
• ✅ 1440×1080 AMOLED display, 60Hz refresh, Fast Engine 15ms latency
• ✅ 3000+ yard detection range on man-sized target
• ✅ Integrated 1200-yard laser rangefinder + ballistic calculator
• ✅ 6 thermal palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
• ✅ Picture-in-Picture, multiple reticle options (8 total: 7 static + 1 DIY)
• ✅ 64GB internal storage, photo/video recording
• ✅ Wi-Fi streaming, iRay mobile app, USB-C connectivity
• ✅ 18650 rechargeable battery, 7+ hour run-time
• ✅ IP67 magnesium housing, recoil-rated
• ✅ DLOC Picatinny mount included, Bluetooth remote for clip-on use

Hybrid Compact vs Standard RICO HYBRID

The Hybrid Compact (HCH50R) is the upgraded evolution: smaller form factor, 10µm sensor (newer than the 12µm in the standard HYBRID), built-in LRF (no AC82 module needed), 60Hz Fast Engine processing, 1440×1080 display. The standard RICO HYBRID is older and lacks the integrated LRF. If you're choosing between the two, the Compact LRF is the current-generation premium option.

Frequently Asked Questions

Can I really use it as a clip-on AND a weapon sight?

Yes. As a clip-on, it sits in front of a day scope (LPVO or higher magnification up to 10×) and your day reticle does the aiming. As a weapon sight, it mounts directly to the Picatinny rail and you sight through it with onboard reticles. As a monocular, you remove from rifle and scout terrain. The Bluetooth remote helps with clip-on operation when controls are reach-limited.

What's the warranty?

iRayUSA's industry-leading 5-year transferable warranty with 5-day repair guarantee. iRayUSA handles warranty from Lewisville, TX, the warranty follows the product, not the original owner.

Why 10µm sensor vs 12µm?

10µm pixel pitch is newer technology than 12µm. The HCH50R's 10µm sensor packs 44% more pixels into the same physical sensor area, allowing higher resolution AND a smaller overall optic. The HCH50R is one of the first commercially available 10µm thermal weapon sights.

Is this ITAR-restricted?

Yes. Thermal weapon sights are export-controlled under ITAR (Title 22 CFR Part 120-130). US sales only. We cannot ship to international addresses.

What rifle calibers is it rated for?

Standard centerfire calibers: .223/5.56, .308, 6.5 Creedmoor, .300 Win Mag, .338 Lapua. For .50 BMG or other heavy magnum recoil, contact iRayUSA to confirm. The magnesium IP67 housing is built to take serious recoil.
