Humminbird Helix 7 Gps Chirp Si G4

🐟 Entry HELIX 7, 7" screen adds Side Imaging (standard SI, not MEGA) plus CHIRP + GPS. Cheapest HELIX 7 and the step up from HELIX 5.

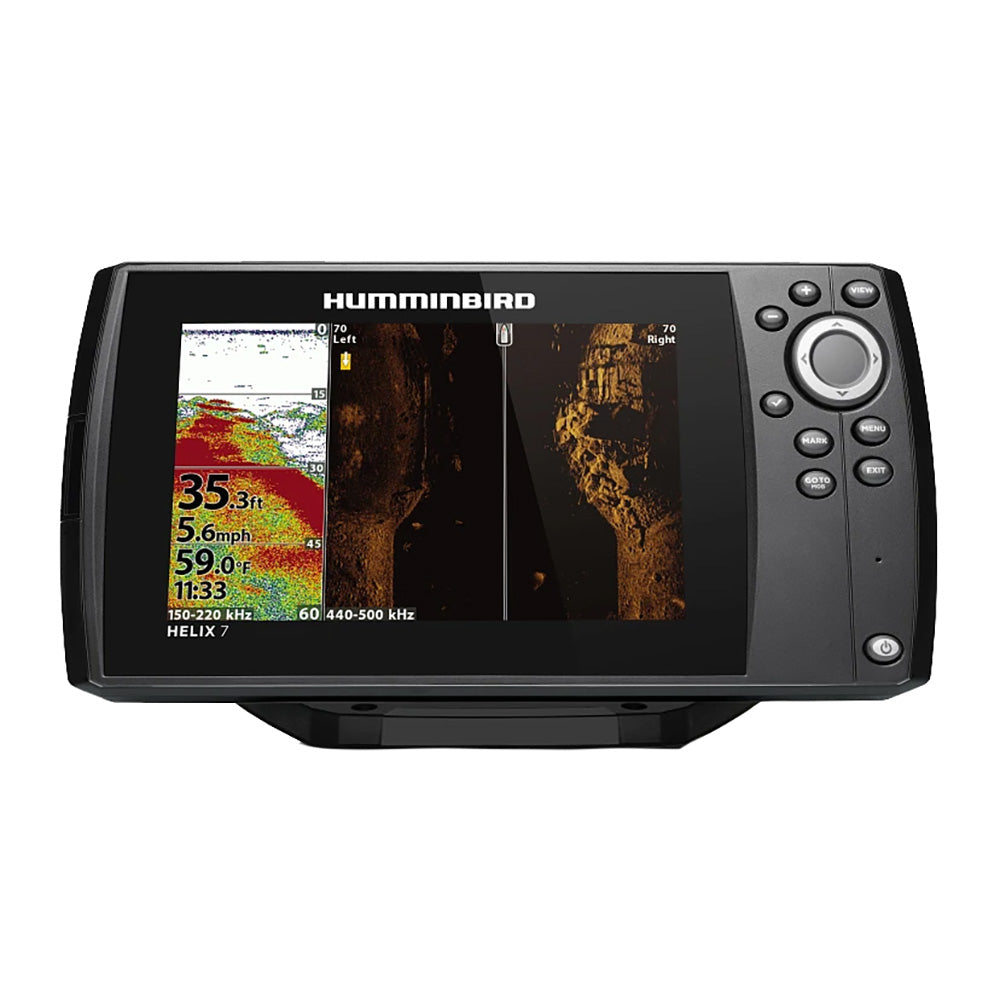

Humminbird HELIX 7 CHIRP GPS SI G4

The Humminbird HELIX 7 CHIRP GPS SI G4 is the entry point of the HELIX 7 tier, priced at $599. It adds Side Imaging (SI) to the HELIX 5 CHIRP DI GPS G3 feature set, and steps the screen size up from 5" to 7". This is standard Side Imaging, not MEGA Side Imaging. For MSI, step up to the HELIX 7 MSI G4 ($800).

Why step up from HELIX 5 to HELIX 7 SI? Two reasons: (1) 7" screen is significantly easier to read from a bass boat console than 5", worth the step up alone for many anglers; (2) Side Imaging shows structure and cover out to the sides of the boat, which is a game-changer for locating submerged cover, brush piles, dock structure, and creek channels. Standard SI at this tier keeps the price under the MEGA MSI variants.

Humminbird line context: HELIX 5 ($250-$630) is entry tier. HELIX 7 ($600-$1,000) is mid tier, you are here. HELIX 15 ($2,900-$3,200) is the flagship HELIX. Above HELIX: XPLORE 9/10/12 ($1,300-$4,500) is the current mainstream premium tier with larger touchscreens. APEX ($3,400-$4,700) is the flagship. All HELIX 7 variants decode the naming as: 7 = screen size; CHIRP/MDI/MSI/SI = imaging features; GPS = GPS included; G4 = current generation standalone; G4N = current generation with One-Boat Network; CHO = Control Head Only (no transducer).

Key Features

• ✅ 7" Color Display, 800x480 resolution, button controls
• ✅ Dual-Spectrum CHIRP Sonar, 140-200 kHz CHIRP traditional sonar
• ✅ Side Imaging (Standard SI), Structure view out to the sides, NOT MEGA-level detail
• ✅ Down Imaging (Standard DI), Below-boat structure detail
• ✅ Built-In GPS, Waypoints, trails, chartplotter
• ✅ MicroSD Card Slot, LakeMaster / Navionics chip support
• ✅ AutoChart Live Compatible, Record custom 1-foot contour maps
• ✅ Current Generation G4, Current processor, refined UI
• ✅ Transducer Included, XNT 9 SI 180 T (CHIRP + SI + DI)
• ❌ No MEGA Imaging, MDI/MSI require HELIX 7 MDI G4 or MSI G4 tier
• ❌ No One-Boat Network, G4 standalone, step up to G4N for OBN
• ❌ No MEGA Live compatibility, MEGA Live 2 requires MSI G4 tier (transducer sold separately)

Who This Is For

This unit is best for bass anglers upgrading from HELIX 5, crappie fishermen who want SI for cover location, jon boat / small bass boat owners, tournament anglers at club/local levels, and recreational anglers wanting a real 7" chartplotter. Step down: HELIX 5 CHIRP DI GPS G3 ($400) saves $200 but loses Side Imaging and the 7" screen. Step up: HELIX 7 CHIRP MDI GPS G4 ($650) adds MEGA Down Imaging. Best mid-tier: HELIX 7 MSI G4 ($800) upgrades SI to MSI (MEGA Side Imaging), sharper detail, worth the $200 for most structure anglers. Note: this variant does NOT include MDI, it has standard DI with SI. For MEGA DI + SI combined, look at the HELIX 7 MSI G4 tier.

Choose This If...

• You want HELIX 7 features, 7" screen, real HELIX UI, premium Humminbird sonar in the $600-$1,000 range.
• You fish bass boats, jon boats, kayaks that can accommodate a 7" console unit, HELIX 7 size class.
• Your budget is in the $499-$699 range, HELIX 7 mid tier.
• You value genuine Humminbird imaging quality, HELIX 7 is the entry to serious Humminbird fishfinder capability.
• You want to be able to add MEGA Live 2 or network with Minn Kota later, choose a G4N variant if you want this path; G4 variants are standalone.

Specifications

• Display: 7" color, 800x480 resolution, button-controlled (NOT touchscreen)
• Sonar: Dual-Spectrum CHIRP (140-200 kHz) + Down Imaging + Side Imaging
• Transducer: XNT 9 SI 180 T transom-mount (CHIRP + SI + DI, included)
• GPS: Built-in, waypoint marking, basic chartplotter, AutoChart Live compatible
• Networking: Standalone G4, no One-Boat Network
• MicroSD: Single slot, LakeMaster, Navionics, AutoChart chip compatible
• Power: 12V DC
• Waterproof: IPX7
• SKU: 411920-1

Compatibility Reference

The Humminbird HELIX 7 CHIRP GPS SI G4 integrates with the Humminbird ecosystem:

• Transducers: Humminbird XNT 9 MDI T, XNT 9 MSI+ 150 T, XNT 9 SI 180 T (size and variant-specific)
• MEGA Live 2: ❌ NOT compatible, requires G4N tier for MEGA Live 2
• One-Boat Network (OBN): ❌ NOT supported, G4 is standalone; step up to G4N for OBN
• Minn Kota i-Pilot Link: ❌ NOT supported on G4 standalone
• Cartography: LakeMaster, Navionics+, AutoChart Live (record custom maps)
• Networking: Standalone only, no Ethernet

Warranty

Covered by Humminbird's 1-year limited warranty. Carolina Sportsman Outfitters provides post-purchase setup guidance by phone. Most HELIX 7 installations are DIY on bass boats, jon boats, and aluminum rigs, transducer mounting, power/ground wiring, and initial GPS setup take an experienced angler 1-2 hours. Call 252-431-6001 with setup questions or if you're unsure which HELIX 7 variant fits your rig.

Frequently Asked Questions

What does CHIRP MDI MSI GPS G4N mean on a Humminbird?

CHIRP = dual-spectrum CHIRP traditional sonar. MDI = MEGA Down Imaging (premium sharper down imaging). MSI = MEGA Side Imaging (premium sharper side imaging). SI (without MEGA) = standard Side Imaging. GPS = built-in GPS. G4 = current generation standalone. G4N = current generation with One-Boat Network. CHO = Control Head Only, no transducer included.

What is One-Boat Network (OBN)?

Humminbird's marine networking system, equivalent to Garmin Marine Network. G4N-tier units network with Minn Kota trolling motors (i-Pilot Link for spot-lock coordinates and waypoint steering), MEGA Live 2 transducers (forward-scan live sonar), and other Humminbird networked units. G4 standalone units don't have OBN, if you run Minn Kota or plan to add MEGA Live 2, choose G4N.

What's the difference between MDI and standard DI?

MEGA Down Imaging (MDI) uses higher frequencies than standard Down Imaging, resulting in significantly sharper detail. You see individual tree branches in submerged timber, individual rocks in riprap, and cleaner separation between fish and cover. For most anglers, MDI is worth the step up.

What's the difference between MSI and standard SI?

MEGA Side Imaging (MSI) uses higher frequencies than standard Side Imaging. Much sharper detail on structure, cover, docks, and fish targets out to the sides of the boat. MSI is significantly better for identifying individual pieces of cover and fish species / sizes.

Can I add MEGA Live 2 to the HELIX 7?

Yes, to the G4N variants (MSI G4N, MDI G4N, MDI G4N CHO). MEGA Live 2 requires One-Boat Network. The G4 standalone variants cannot accept MEGA Live 2. MEGA Live 2 transducer sold separately, around $1,500 for the transducer alone.

Does it work with Minn Kota trolling motors?

G4N variants integrate with Minn Kota trolling motors that have i-Pilot Link capability. You get spot-lock GPS coordinates displayed on the HELIX, waypoint steering, AutoPilot heading display, and shared GPS data. G4 standalone variants do not have this integration.

Is it used in tournaments?

Yes. HELIX 7 MSI G4N is common on bass tournament boats for club circuits, BFL, and B.A.S.S. Opens. At top circuits (B.A.S.S. Elite, MLF Pro Tour), most anglers step up to HELIX 15 or XPLORE tier, but HELIX 7 remains popular as a secondary or bow-mounted unit networked with a larger primary.

What's the difference between G4 and G4N?

G4 = current generation, standalone. G4N = current generation, network-capable with One-Boat Network. The head unit internals (processor, imaging) are the same; G4N adds Ethernet networking. If you don't need OBN / Minn Kota / MEGA Live 2, G4 saves $100-$200. If you want any networking, get G4N.
