Humminbird Apex 19 Msi+ Vx Chartplotter
SKU:
Description
🐟 The Humminbird APEX 19 VX MSI+ is Humminbird's flagship multifunction chartplotter, 19" IPS solar-readable touchscreen with CHIRP MEGA Side Imaging+, MEGA Down Imaging+, and built-in CoastMaster/LakeMaster charts.

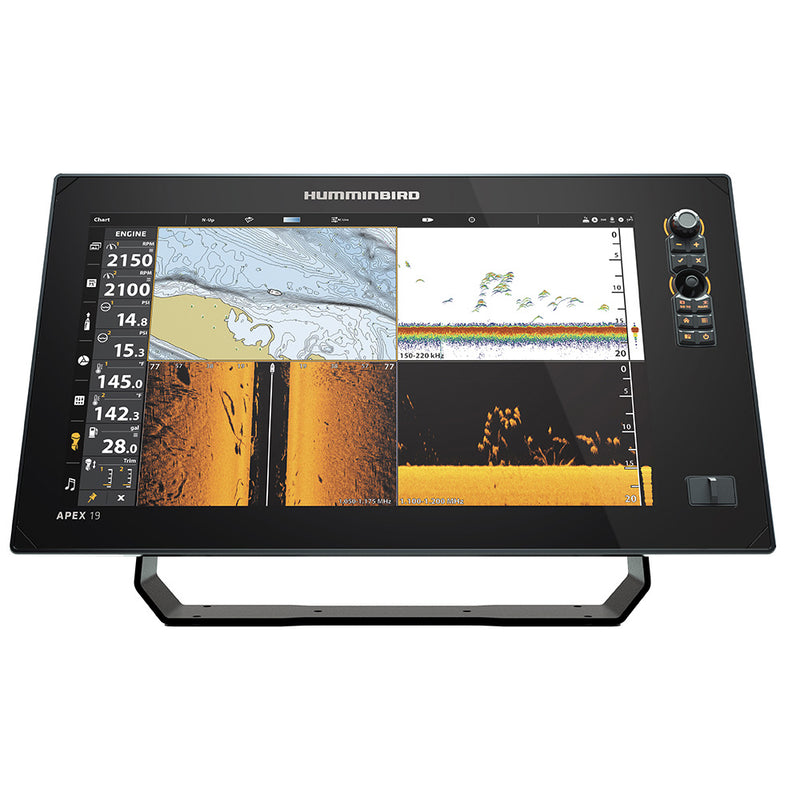

Humminbird APEX 19 VX MSI+ Chartplotter
The APEX series is Humminbird's premium multifunction display platform, designed for tournament bass anglers, offshore sportfishermen, and serious boaters who need maximum screen real estate and the full Humminbird sonar suite. The 19" IPS display is solar-readable, daylight-bright at 1500 nits, and uses capacitive touchscreen for smartphone-like multi-touch operation. Includes the matched MSI+/MDI+/CHIRP transducer. The APEX 19 is the largest display in the Humminbird lineup, designed for center consoles and yacht installations.
Sonar Suite (VX models)
- ✅ CHIRP MEGA Side Imaging+ (MSI+), sees structure 250 ft to each side at high resolution
- ✅ CHIRP MEGA Down Imaging+ (MDI+), photo-quality bottom imaging directly below
- ✅ Dual Spectrum CHIRP 2D sonar, traditional sonar for fish ID and bottom hardness
- ✅ MEGA Live 2 ready with v5.060+ firmware, forward-facing live sonar (transducer sold separately)
- ✅ MEGA 360 Imaging compatible, 360° real-time bottom view (transducer sold separately)
Display
- ✅ 19" IPS solar-readable touchscreen, 1500 nit daylight brightness
- ✅ Multi-touch capacitive, pinch-zoom and swipe like a tablet
- ✅ Customizable split-screen, up to 4 panels at once on larger units
Charts and GPS
- ✅ Built-in CoastMaster + LakeMaster charts, 1-foot contour data on supported lakes
- ✅ AutoChart Live, build your own custom contour maps in real-time
- ✅ Internal GPS antenna with 10Hz update rate
- ✅ Compatible with Navionics chart cards
Connectivity
- ✅ Ethernet networking, share sonar/charts across multiple displays
- ✅ NMEA 2000 for engine data, AIS, VHF integration
- ✅ Wi-Fi and Bluetooth, FishSmart app for waypoint sync
- ✅ One-Boat Network, integrate with Minn Kota trolling motors and Cannon downriggers
Frequently Asked Questions
Display Only vs full unit, what's included?
This is the FULL unit with transducer included. The "Display Only" version (CHO) is the Control Head Only at lower price.
Is MEGA Live 2 supported?
Yes, with firmware v5.060 or later. The MEGA Live 2 transducer is sold separately. APEX is the most capable platform for MEGA Live 2 because of the larger screen real estate.
What transducer do I need?
Ships with the matched MEGA Side Imaging+ transducer. For center console installations, use the included permanent transom mount.
How does APEX compare to XPLORE?
APEX is the larger-screen, more powerful platform built for permanent helm installation, especially on bigger boats. XPLORE is the newer-generation platform with the same sonar capabilities but in smaller 9", 10", and 12" sizes optimized for bass boats and skiffs. APEX 13/16/19 sizes are for center consoles, walkaround boats, and yachts where the bigger screen is justified.
Networking with other Humminbird units?
Yes via Ethernet. APEX networks with other APEX, SOLIX, and HELIX units to share sonar data, charts, and waypoints across the boat. One-Boat Network lets it talk to Minn Kota Quest/Ultrex trolling motors for spot lock and follow-the-contour navigation.
Need help with fit or compatibility? Carolina Sportsman Outfitters has been outfitting tournament bass anglers and offshore sportfishermen since 2015, we know the part numbers and can verify compatibility before you order. Call 252-431-6001.
Backed by Humminbird warranty and CSO's expert product support. Financing available at checkout, no credit needed.
