Description

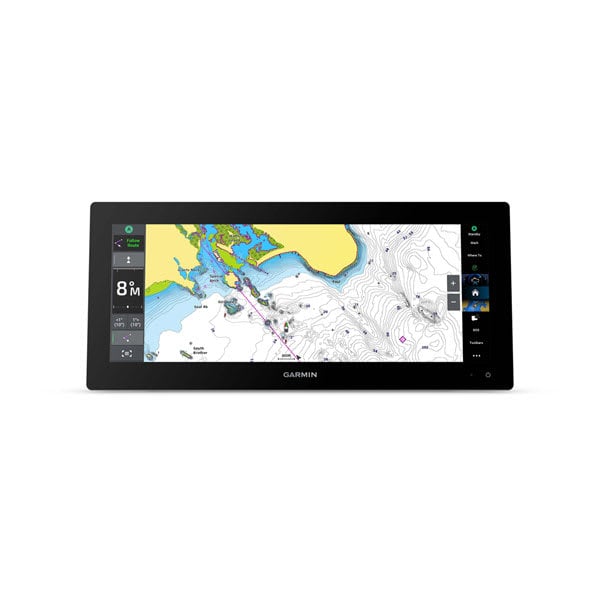

🎣 The widest screen Garmin makes for the helm without going to the GPSMAP 8000 series — the Garmin GPSMAP 1543xsv features a 15" ultrawide IPS touchscreen (~74% wider than a standard 9" chartplotter), edge-to-edge glass, and the X3-generation Garmin platform. Built-in 1kW CHIRP Traditional + UHD ClearVu + UHD SideVu sonar processing. Preloaded with Garmin Navionics+ U.S. and Canada Inland and Coastal charts.
Key Features
- ✅ Display: 15" ultrawide IPS edge-to-edge glass touchscreen — accurate colors, sunlight-readable, polarized-sunglass friendly
- ✅ Form Factor: ~74% wider than a 9" chartplotter — ideal as a single "command center" display showing chart + sonar + radar in one continuous view
- ✅ Built-in Sonar Processing: 1kW Single Channel CHIRP Traditional + CHIRP UHD ClearVu + CHIRP UHD SideVu (transducer required, sold separately)
- ✅ Mapping: Preloaded Garmin Navionics+ U.S. and Canada Inland AND Coastal — full North American coverage with 1-year daily update subscription
- ✅ Full LiveScope Support: LVS12 (no black box required), LVS32, LVS34 (LiveScope Plus), LVS62 XR — plus FrontVü forward-looking sonar
- ✅ Multi-Band GNSS: 10Hz GPS + GLONASS + Galileo, multi-band, sub-meter accuracy
- ✅ Radar Support: Compatible with Garmin Fantom, GMR xHD2, GMR xHD3 radar domes
- ✅ NMEA 2000 + NMEA 0183 + J1939: Connect autopilots, engine data, VHF, AIS, Fusion-Link audio, J1939 engines
- ✅ Wi-Fi + Bluetooth + ANT+: ActiveCaptain app integration, quatix marine watch pairing, gWind Wireless 2 transducer support
- ✅ Floating Display Install: Bail-mount option with inset knobs and bracket supports unique "floating display" installations — minimal hardware showing
- ✅ Flush Mount + Flat Mount: Rear-mount option for flush- and flat-mount helm installations
- ✅ SailAssist: Laylines, race start line guidance, wind rose, true and apparent wind data (wind transducer sold separately)
- ✅ Force Trolling Motor Control: Wireless Force / Force Pro / Force Kraken integration
- ✅ OneHelm + inReach Pairing: Third-party device control + custom messages from satellite communicator
- ✅ microSD preinstalled: Charts ready to use out of the box
The Ultrawide Advantage
The 1543xsv's ultrawide aspect ratio is the most distinctive thing about it. A standard 12" chartplotter is roughly 4:3 — wider than tall but still compact. The 15" ultrawide is dramatically wider, which means:
- One screen replaces two. Run chart on the left and sonar on the right at full readable size — no compromise. With a standard 12" you'd be cramming both into a small split-screen.
- Better for chart navigation while monitoring sonar. The wide layout matches how your eyes naturally scan the helm.
- Floating display look. The slim profile and edge-to-edge glass let it install almost flush against the dash — looks more like a modern automotive display than a traditional chartplotter.
Trade-off: route planning may feel cramped vertically. If you do a lot of long-range route planning where you need a tall map view, a standard-format 12" or 16" might serve you better. For mixed-use helms running chart + sonar + radar simultaneously, the ultrawide shines.
One Important Networking Note
The 1543xsv uses Garmin's legacy Marine Network ports (not the newer BlueNet ports found on the 7"/9"/12" X3 chartplotters and the 16x3 series). To connect to a BlueNet network, you'll need a Garmin BlueNet 30 Gateway (sold separately, ~$350). Marine Network is fully functional for sonar sharing, radar, and waypoint sharing — BlueNet just runs faster (1 Gbps).
Where This Fits in the GPSMAP Lineup
- GPSMAP 7"/9"/12" X3 ($1099-$2999) — Standard-format X3 chartplotters with BlueNet
- GPSMAP 1543xsv (this product, $4499) — 15" ultrawide form factor
- GPSMAP 16x3 (1623/1643/1623xsv/1643xsv, $4899-$5099) — 16" standard-format with full BlueNet networking
- GPSMAP 8610/8612 series ($2599-$4099) — Self-contained MFDs with HDMI output and Full HD displays
- GPSMAP 8616/8617/8624 ($5599-$12299) — Larger MFD glass-bridge installations
Frequently Asked Questions
Why ultrawide instead of a standard 16:9 or 4:3?
The ultrawide is designed for helm installations where you want chart + sonar + radar all visible at once. With a standard 12" or 16", you split-screen those into smaller panes. The ultrawide gives each pane more real estate. Best for active fishing/cruising where multi-source monitoring is constant.
What transducer should I get?
Compatible with most Garmin 12-pin transducers (GT54UHD-TM, GT56UHD-TM, GT51M-TH) and 8-pin transducers via the included 8-to-12-pin adapter. Pair with a GSD 25 sounder module for dual-channel CHIRP and depths up to 5,000 ft.
Can I use this with my BlueNet network?
Yes, but you need a Garmin BlueNet 30 Gateway (sold separately). The 1543xsv has legacy Marine Network ports only. Once gateway is in place, full BlueNet functionality.
Does it support LiveScope?
Yes — full Panoptix lineup including LVS12, LVS32, LVS34 (LiveScope Plus), and LVS62 (LiveScope XR). Add a GLS 10 sonar black box and the appropriate transducer.
Can I run radar?
Yes — Garmin Fantom 18/24, GMR xHD2, GMR xHD3 radar domes all work. Overlay on chart, MARPA target tracking, full radar control.
What's included in the box?
GPSMAP 1543xsv chartplotter, microSD card preinstalled, power cable, thin flush mount kit with gasket, protective sun cover, 8-pin to 12-pin transducer adapter cable, 2m NMEA 2000 backbone/drop cable + T-connector, and documentation. Transducer NOT included.
Will it fit my dash?
Ultrawide is a less common cutout format than standard chartplotters. Measure carefully — 15" diagonal at the ultrawide aspect ratio means the unit is wider but shorter than a standard 12" or 16". The thin flush mount kit is included for clean installs.
What's the warranty?
1-year limited manufacturer warranty from Garmin.
Financing & Warranty
1-year limited manufacturer warranty from Garmin. 0% financing available — no credit needed on qualifying purchases. Military and First Responders are encouraged to use credentials in the cart section before checking out.
Technical Specifications
| Model Number | 010-03855-01 |
| Model | GPSMAP 1543xsv |
| Display | 15" ultrawide IPS edge-to-edge glass touchscreen, sunlight-readable |
| Form Factor | Ultrawide aspect ratio (~74% wider than standard 9" chartplotter) |
| Built-in Sonar | 1kW Single Channel CHIRP Traditional + CHIRP UHD ClearVu + CHIRP UHD SideVu (transducer required) |
| LiveScope Support | Full Panoptix lineup (LVS12, LVS32, LVS34, LVS62 XR) + FrontVü |
| Transducer | NOT included — 12-pin Garmin transducer (or 8-pin via included adapter) |
| Mapping | Preloaded Garmin Navionics+ U.S. + Canada Inland + Coastal, 1-year update subscription |
| Networking | Legacy Garmin Marine Network (BlueNet via BlueNet 30 Gateway, sold separately) + Wi-Fi + Bluetooth + NMEA 2000 + NMEA 0183 + J1939 + ANT+ |
| Radar Support | Yes — Garmin Fantom, GMR xHD2, GMR xHD3 |
| GNSS Receiver | 10Hz GPS + GLONASS + Galileo, multi-band, sub-meter accuracy |
| Trolling Motor Control | Garmin Force / Force Pro / Force Kraken (wireless) |
| Sailing Features | Yes — laylines, race start, wind rose, true/apparent wind |
| SD Card Slots | microSD slot (preinstalled card) |
| Mounting | Thin flush mount kit (included) + bail mount option for floating display install |
| Power | 10-32 Vdc |
| Waterproof Rating | IPX7 |
| Warranty | 1-year limited manufacturer |
