Description

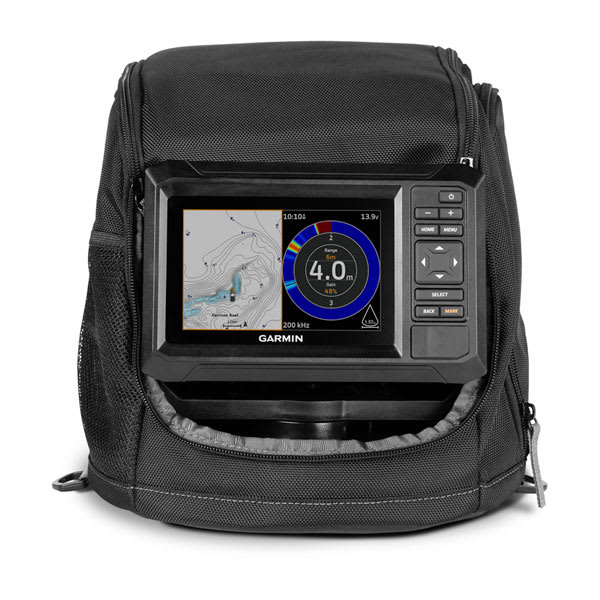

❄️ Everything you need to start ice fishing with Garmin's preloaded maps and CHIRP sonar in one portable kit. The Garmin ECHOMAP UHD2 55cv Ice Fishing Bundle includes the chartplotter, an ice-specific Dual Beam-IF transducer, a rechargeable battery, and a rugged glove-friendly carrying case. Drop it on the ice and start fishing.
What's in the Kit
- ✅ Chartplotter: ECHOMAP UHD2 55cv (5" keyed)
- ✅ Transducer: Dual Beam-IF (ice-specific CHIRP 50/77/83/200 kHz traditional + Flasher mode)
- ✅ Preloaded Maps: Preloaded Garmin Navionics+ Canada
- ✅ Battery: Rechargeable sealed lead-acid battery + charger
- ✅ Portable Case: Rugged glove-friendly portable carrying case
- ✅ Cold-Weather Cable: Flexible cold-flex transducer cable designed for sub-freezing use
- ✅ Ice Flasher Mode: Traditional vertical flasher view for precise jig-to-fish depth tracking
Where This Fits in the Garmin Ice Fishing Lineup
Garmin's ice fishing bundles are organized by chartplotter screen size and sonar type:
- STRIKER Plus 4 Ice Bundle ($379.99) — Budget: 4.3" screen, basic CHIRP 2D only, no preloaded maps
- STRIKER Vivid 5cv Ice Bundle ($449.99) — Budget+: 5" screen, CHIRP + ClearVu, no preloaded maps
- ECHOMAP UHD2 53cv / 55cv Ice Bundles ($549-$599) — Entry: 5" keyed screen, CHIRP + ClearVu, preloaded Navionics+ maps
- ECHOMAP UHD2 73sv Ice Bundle ($999.99) — Mid: 7" touchscreen, GT10HN-IF for deep-water ice, Wi-Fi / NMEA 2000 / LiveScope compat
- ECHOMAP UHD2 73sv + Panoptix PS22-IF Bundle ($1999.99) — Premium portable: 7" screen with LiveVü live sonar and pole-free rotation system
- ECHOMAP UHD2 93sv + LiveScope Bundle ($2849.99) — Premium: 9" screen with original LiveScope (LVS32-IF), 200 ft live sonar
- ECHOMAP UHD2 93sv + LiveScope Plus Bundle LI ($3299.99) — Top: 9" + LiveScope Plus (LVS34-IF) with 35% better target separation + lithium battery
- LiveScope Plus Ice Fishing System ($1799.99) — Accessory: Add LiveScope Plus to an existing compatible Garmin chartplotter
Frequently Asked Questions
Is everything included to start ice fishing?
Yes. Chartplotter, Dual Beam-IF ice transducer (with cold-flex cable), rechargeable lead-acid battery, battery charger, tilt/swivel mount, transducer mount hardware, and rugged portable carrying case. Ready to fish right out of the box — no extras to buy for basic operation.
What's the "Dual Beam-IF" transducer?
Ice-specific CHIRP Traditional transducer — single-channel CHIRP at 50/77/83/200 kHz with L, M, H frequency modes. Gives you a wide beam for scanning a larger area under the ice and a narrow beam for precise jig tracking. Works best as a Flasher mode display — the classic vertical style that shows you fish, structure, and your jig in real time as colored arcs.
Can I use this on my boat in summer?
Yes — the 53cv / 55cv chartplotter is identical to the fixed-mount version. Remove it from the portable case, buy a summer transom-mount transducer (GT20-TM, etc.), and install normally. Many anglers keep the portable kit assembled year-round and swap transducers seasonally.
How long does the battery last?
Typically 5-8 hours of active fishing on the sealed lead-acid battery. For longer sessions, buy a lithium replacement battery (third-party) for about 2× run time.
Does this support LiveScope?
No — the 5" keyed UHD2 does NOT support Panoptix or LiveScope. For live sonar, step up to the 73sv or 93sv ice bundles.
Can I add my own chartplotter later?
The chartplotter comes with the bundle — there's no upgrade path within the 53cv/55cv bundle. To upgrade, you'd buy a different bundle (e.g., 73sv Ice Bundle) and use this as a backup or sell it.
Can I use this chartplotter on my boat?
Yes — the chartplotter is identical to the open-water version. Swap to a compatible open-water transducer (GT20-TM, GT54UHD-TM, or GT56UHD-TM depending on the model) and install normally on your boat. Many anglers run year-round this way.
Is the warranty the same as buying separately?
Yes — 1-year Garmin limited warranty on all components.
Warranty
1-year limited manufacturer warranty from Garmin on all components. Backed by CSO's expert product support and financing options. 0% financing available — no credit needed on qualifying purchases.
Technical Specifications
| Model Number | 010-02592-35 |
| Bundle | ECHOMAP UHD2 55cv Ice Fishing Bundle |
| Chartplotter | ECHOMAP UHD2 55cv (5" keyed) |
| Transducer | Dual Beam-IF (ice-specific CHIRP 50/77/83/200 kHz traditional + Flasher mode) |
| Preloaded Maps | Preloaded Garmin Navionics+ Canada |
| Battery | Rechargeable sealed lead-acid battery + charger |
| Carrying Case | Rugged glove-friendly portable carrying case |
| Water Use | Ice fishing (freshwater) |
| Waterproof Rating | IPX7 |
| Warranty | 1-year limited manufacturer |
