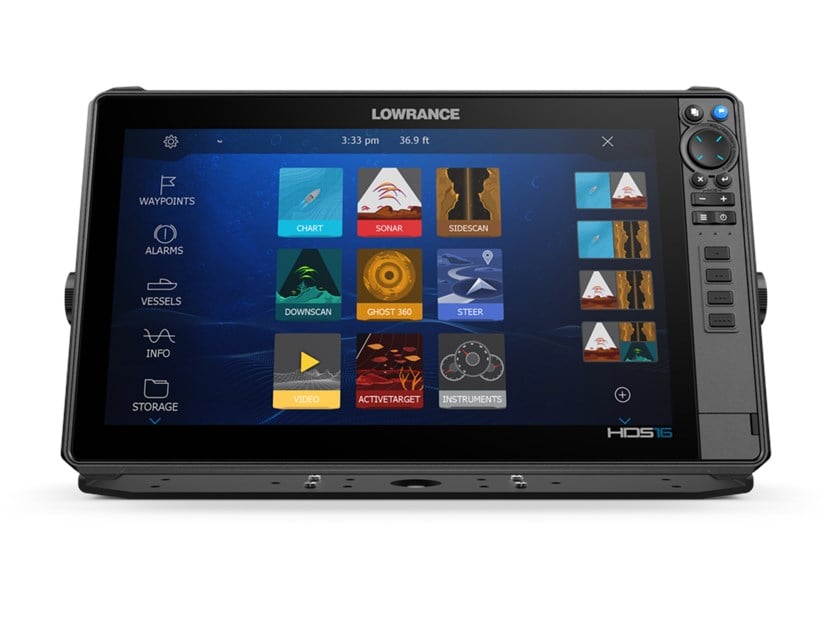

Lowrance HDS PRO 16 Fishfinder/Chartplotter with C-MAP DISCOVER Onboard, No Transducer

🐟 HDS PRO 16 chartplotter/fishfinder display only, no transducer. The largest screen Lowrance makes, 16 inches of SolarMAX HD touchscreen real estate. The tournament boat console centerpiece.

About this product

Flagship HDS PRO tier, 16" SolarMAX HD touchscreen, premium processor, large programmable keys, full network capability.

Lowrance fishfinder line context: Eagle (entry tier) → Eagle Eye (premium Eagle) → Elite FS (mid-premium touchscreen with Active Imaging HD and network capability) → HDS PRO (flagship with premium processor, Active Imaging HD, and full network capability). Lowrance transducer naming: Bullet Skimmer (entry CHIRP) → Splitshot (CHIRP + Down Scan) → Tripleshot (CHIRP + Down Scan + Side Scan) → Active Imaging 3-in-1 (CHIRP + AI Down + AI Side) → Active Imaging HD (premium AI) → ActiveTarget 2 (live sonar, Lowrance equivalent to Garmin LiveScope and Humminbird MEGA Live 2).

Key Features

• ✅ HDS PRO 16 Fishfinder/Chartplotter with C-MAP DISCOVER Onboard, No Transducer. Flagship-tier or near-flagship Lowrance unit.
• ✅ SolarMAX HD Touchscreen. Viewable at extreme angles and through polarized lenses, ideal for direct sunlight conditions.
• ✅ Active Imaging HD Ready. High-definition up to 1.2MHz CHIRP/SideScan/DownScan Imaging (with compatible transducer).
• ✅ ActiveTarget 2 Live Sonar Ready. Plug-and-play support for ActiveTarget 2 Live Sonar (sold separately).
• ✅ FishReveal Sonar Views. SideScan and DownScan FishReveal helps identify fish vs structure.
• ✅ C-MAP DISCOVER Onboard pre-loaded. Pre-loaded mapping with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes.
• ✅ Real-Time Mapping. C-MAP Genesis Live creates custom contours as you fish.
• ✅ NMEA 2000, Wireless, Bluetooth Connectivity. Smartphone notifications and network expansion.
• ✅ Touchscreen Control of Add-Ons. Ghost Trolling Motor, Power-Pole Anchors, Autobathy, Lowrance Outboard Pilot, all controlled from the display.
• ✅ 3000 Waypoints, 100 Routes, 100 Trails. Tournament-grade waypoint capacity.
• ✅ 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS. Fast, accurate position fix.

Who This Is For

This unit is best for tournament boat dash centerpieces, charter captains, professional tournament anglers running multiple sonar views simultaneously, and offshore boats networking with radar and autopilot. Step up: see the next size HDS PRO. Step down: see Elite FS for the touchscreen mid-premium tier without HDS PRO processor.

Transducer Included

No transducer (display only, head unit only)

What's in the Box

• Lowrance HDS PRO 16 Fishfinder/Chartplotter with C-MAP DISCOVER Onboard, No Transducer display
• Documentation

FAQ

Q: HDS PRO vs Elite FS, what's the real difference?
HDS PRO has a more powerful processor (faster image refresh on Active Imaging HD), large programmable keys (10/12/16 inch models), full network expansion (radar, autopilot, multiple ActiveTarget displays), and is generally considered the tournament/professional tier. Elite FS is the mid-premium touchscreen tier with most of the same features at a lower price point but slower processing and reduced network expansion.

Q: Active Imaging HD vs Active Imaging 3-in-1 Gen 1?
Active Imaging HD operates at up to 1.2MHz (vs 800kHz on Gen 1) for higher-resolution SideScan and DownScan. Gen 1 is still excellent and was the industry standard for years. HD is worth the upgrade for shallow-water bass anglers who want maximum target separation in 0-30 ft water.

Q: Do I need a separate transducer?
If the title says "No Transducer", yes, you need to add a compatible transducer separately (Active Imaging HD 3-in-1 recommended). If the title includes "with Active Imaging HD" or "with Splitshot/Tripleshot", the transducer is included.

Q: Will this work with my Ghost trolling motor?
Yes. HDS PRO and Elite FS provide touchscreen control of Lowrance Ghost trolling motors, MotorGuide Xi5/Xi3 (with PinPoint Gateway), and other compatible motors. Ghost Trolling Motor 360 chart overlay is supported on HDS PRO.

Q: Can I add ActiveTarget 2?
Yes. All HDS PRO and Elite FS units are ActiveTarget 2 ready. Add the ActiveTarget 2 Sonar Module and Transducer (sold separately) for live forward-, down-, and scout-view sonar.

Q: NMEA 2000 networking?
Yes. NMEA 2000 backbone lets you connect multiple displays, radar, autopilot, engine data, AIS, and SiriusXM Weather/Audio. Network capability is one of the major reasons to choose HDS PRO over Elite FS.
