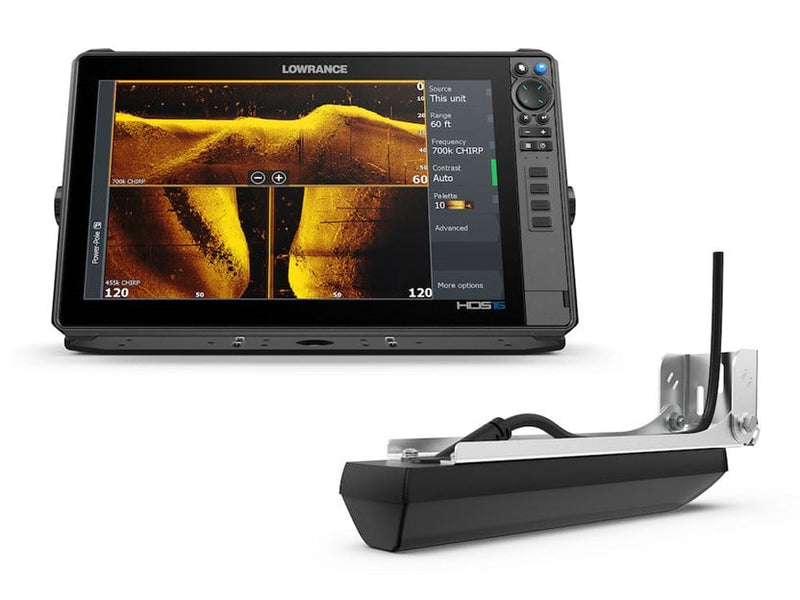

Lowrance HDS PRO 16 Fishfinder/Chartplotter with Active Imaging HD 3-in-1 Transducer

Lowrance HDS PRO 16 Fishfinder/Chartplotter with Active Imaging HD 3-in-1 Transducer

The Lowrance HDS PRO 16 (000-15990-001) is the largest and highest-resolution display in the HDS PRO lineup. The 16-inch SolarMAX HD touchscreen delivers 1920x1080 Full HD at over 1,200 nits — the only HDS PRO with true 1080p resolution. The included Active Imaging HD 3-in-1 transducer provides CHIRP, SideScan, and DownScan up to 1.2 MHz.

The massive screen makes multi-panel layouts shine — run chart, traditional sonar, SideScan, and ActiveTarget views simultaneously without squinting. Four programmable keys provide quick function access. HDS PRO supports dual ActiveTarget 2 systems, Scout and Ghost 360 chart overlays, and full FishReveal on DownScan. C-MAP DISCOVER OnBoard preloaded with 19,000+ US and 9,400+ Canadian lakes.

Networking: 2x 100 Mbit Ethernet (6 MFDs), NMEA 2000, Wi-Fi, Bluetooth 4.0. Full touchscreen control of Ghost trolling motors, Power-Pole, and Autopilot.

Backed by Lowrance warranty and CSO's expert product support. 0% financing available — no credit needed.

Best For

• Tournament anglers who want the largest, highest-resolution Lowrance display available
• Multi-panel power users running 4+ split views who need every pixel
• Center console and large bass boat primary display installations
• Anglers who run ActiveTarget plus traditional sonar and charts simultaneously
• Guide boats and charter operations where visibility from multiple positions matters
• Walleye and musky anglers who want maximum screen real estate for trolling
• Anglers upgrading from 12-inch units who want Full HD resolution

FAQ

Why is the 16-inch so much more expensive than the 12?

The 16 is the only HDS PRO with 1920x1080 Full HD resolution (vs. 1280x720 on the 9, 10, and 12). The larger panel and higher pixel count command a premium. Sonar and networking features are identical across all sizes.

Is the 16-inch too big for a bass boat?

Not for most modern bass boats — many tournament anglers run a 16 at the console and a 12 or 10 at the bow. Measure your available dash or bracket space: the unit is 16.95" x 10.20" x 3.46".

Does it come with a transducer?

Yes — this model (000-15990-001) includes the Active Imaging HD 3-in-1 transducer. The display-only model is 000-16005-001 ($4,499).

Can I network the 16 with smaller HDS PRO units?

Yes. Up to 6 HDS PRO displays can share sonar, charts, and waypoints via the 100 Mbit Ethernet network.
