Description

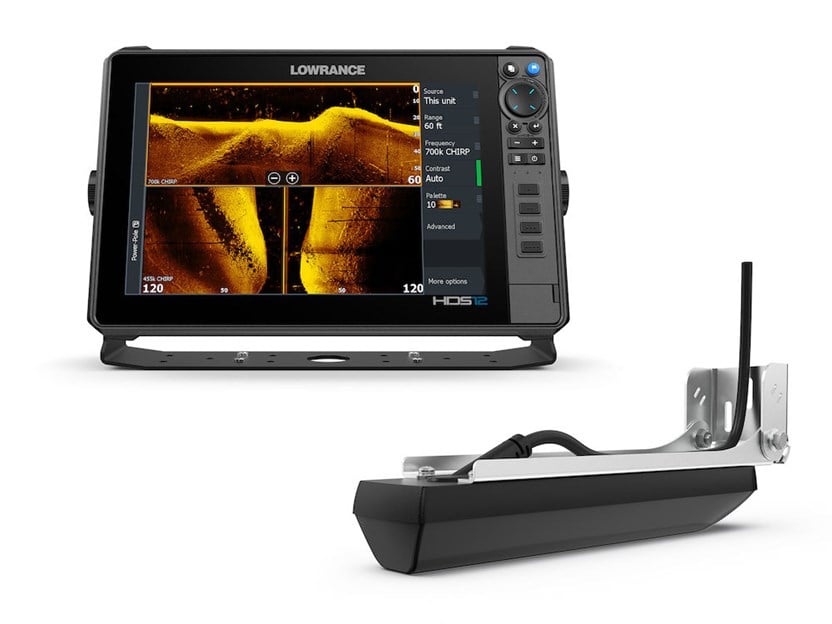

Lowrance HDS PRO 12 Fishfinder/Chartplotter with Active Imaging HD 3-in-1 Transducer
The Lowrance HDS PRO 12 (000-15987-001) is the sweet spot for anglers who want a large, flagship-quality display without going full 16-inch. The 12-inch SolarMAX HD touchscreen runs at 1280x720 with over 1,200 nits — big enough for comfortable multi-panel views and readable in any lighting condition. The included Active Imaging HD 3-in-1 transducer pushes CHIRP, SideScan, and DownScan up to 1.2 MHz.
Four programmable keys let you jump to your most-used screens or functions instantly. FishReveal overlays CHIRP arches onto DownScan structure images. HDS PRO supports dual ActiveTarget 2 systems simultaneously, plus ActiveTarget Scout and Ghost 360 chart overlays. C-MAP DISCOVER OnBoard with 1-foot contours on 19,000+ US and 9,400+ Canadian lakes comes preloaded.
Full networking: 2x 100 Mbit Ethernet (6 MFDs), NMEA 2000, Wi-Fi, Bluetooth 4.0. Touchscreen Ghost trolling motor, Power-Pole, and Autopilot control. Two microSD slots (32 GB each).
Backed by Lowrance warranty and CSO's expert product support. 0% financing available — no credit needed.
Best For
- Tournament bass anglers who want a primary console display with ample screen space
- Multi-panel users running chart, sonar, and ActiveTarget views simultaneously
- Walleye trollers who need large, bright displays visible from a distance
- Anglers upgrading from HDS LIVE 12 or HDS Carbon 12
- Guide boat primary display for client-facing fish-finding
- Console installations with room for a 12-inch flush or bracket mount
FAQ
HDS PRO 12 with transducer vs. without — which should I buy?
Buy this combo (000-15987-001, $3,099) if you need a transducer. Buy the display-only model (000-16002-001, $2,999) if you already have a compatible transducer or plan to run only ActiveTarget 2.
Is the 12-inch resolution the same as the 9 and 10?
Yes — all three are 1280x720. The 16-inch model steps up to 1920x1080 Full HD.
How many programmable keys does the 12 have?
Four. The 9-inch has none, the 10-inch has two, and both the 12 and 16-inch models have four.
Specifications
| Parameter | Specification |
|---|---|
| Display | 12" SolarMAX HD IPS touchscreen |
| Resolution | 1280x720 |
| Brightness | >1,200 nits |
| Transducer Included | Active Imaging HD 3-in-1 (CHIRP + SideScan + DownScan, up to 1.2 MHz) |
| Charts | C-MAP DISCOVER OnBoard preloaded (19,000+ US lakes, 9,400+ CA lakes) |
| ActiveTarget 2 Support | Yes — dual AT2 simultaneously |
| Network | 2x 100 Mbit Ethernet (6 MFDs max), NMEA 2000, Wi-Fi, Bluetooth 4.0 |
| Card Slots | 2x microSD (32 GB each) |
| Programmable Keys | 4 |
| Waypoints / Routes / Trails | 3,000 / 100 / 100 |
| Waterproof Rating | IPX7 |
| Dimensions | 13.68" x 9.00" x 3.26" |
| Weight | 5.76 lb |
| Warranty | Lowrance manufacturer warranty |
| What's in the Box | HDS PRO 12 display, Active Imaging HD 3-in-1 transducer, power cable, mounting bracket, hardware, documentation |
| MPN | 000-15987-001 |
| UPC | 9420064129676 |
