Description

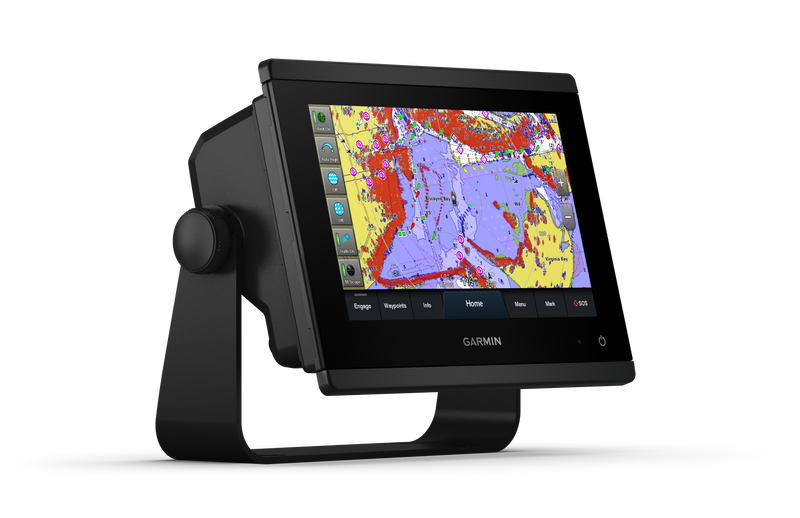

- GPSMAP 723 chartplotter
- microSD™ card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 meters)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
Physical & Performance
| Display Size | 6.1" x 3.5"; 7.0" diagonal (15.4 x 9.1 cm; 17.8 cm diagonal) |
| Power Input | 10 to 32 Vdc |
| Display resolution | 1024 x 600 pixels |
| GPS | Yes |
| Dimension | 7.6" x 5.5" x 2.9" (19.2 x 14.0 x 7.4 cm) |
| Receiver |
10 Hz |
| Waterproof |
IPX7 |
| Weight |
2.8 lbs (1.3 kg) |
| Mounting Options | Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
| Display Type | WSVGA |
Maps & Navigation
| Garmin Navionics Vision+™ | Yes |
| Accepts Data Cards |
2 microSD cards (back of unit) |
| Navigation Routes | 100 |
| Garmin Navionics+™ | Yes |
Features
| Waypoints |
5000 |
| Sailing Features | Yes |
| NMEA 0183 Compatible | Yes |
| Has built-in receiver | Yes |
| USB ports | Yes |
| TOPO | Yes |
| SideVü | yes (with GCV™ black box, sold separately) |
| DSC | Yes |
| Touchscreen | Yes |
| LakeVü g3 Ultra | Yes |
| NMEA 2000 Compatible | Yes |
| ActiveCaptain® compatible |
yes |
| Typical current draw at 12 Vdc | 1.08 A |
| NMEA 2000® ports | 1 |
| Tide tables | Yes |
| GLONASS | Yes |
| Track points | 50,000 |
| Panoptix™ sonar | Yes |
| Garmin Marine Network Ports |
1 |
| LakeVü g3 | Yes |
| Supports WAAS | Yes |
| GSD Black Box Sonar Support | Yes |
| Maximum current draw at 12 Vdc | 1.45 A |
| Smart Mode Compatible | Yes |
| Built-in Auto Guidance | Yes |
| Maximum power usage at 10 Vdc | 17.6W |
| BlueChart g3 | Yes |
| Standard Mapping | Yes |
| LakeVu (inland) | Yes |
| Displays sonar | Yes |
| ANT+ (Connectivity) | Yes |
| GCV Black Box Sonar Support | Yes |
| BNC external GPS antenna port | Yes |
| Connections NMEA0183 Input Ports |
1 |
| Spoken audio alerts | Yes |
| BlueChart g3 Vision | Yes |
| Garmin Wi-Fi network (local connection) | Yes |
| J1939 ports | 1 |
| Input | Touchscreen |
| Garmin Quickdraw Contours | Yes |
| BLUETOOTH® pairing | Yes |
| AIS | Yes |
| Raster chart support | Yes |
| NMEA 0183 input (Tx) ports | 1 |
| OneHelm support | Yes |
| ClearVü | yes (with GCV™ black box, sold separately) |
| Tracks | 50 saved tracks |
| Wireless Remote Compatible | Yes |
| Supports Fusion-Link™ compatible radios | Yes |
| Galileo | Yes |
| LiveScope | Yes |
| BlueChart (coastal) | Yes |
| Traditional sonar (dual frequency/beam) | yes (with GCV™ black box, sold separately) |
| GRID (Garmin Remote Input Device) compatible | Yes |
| Video input ports |
1 (BNC composite) |
