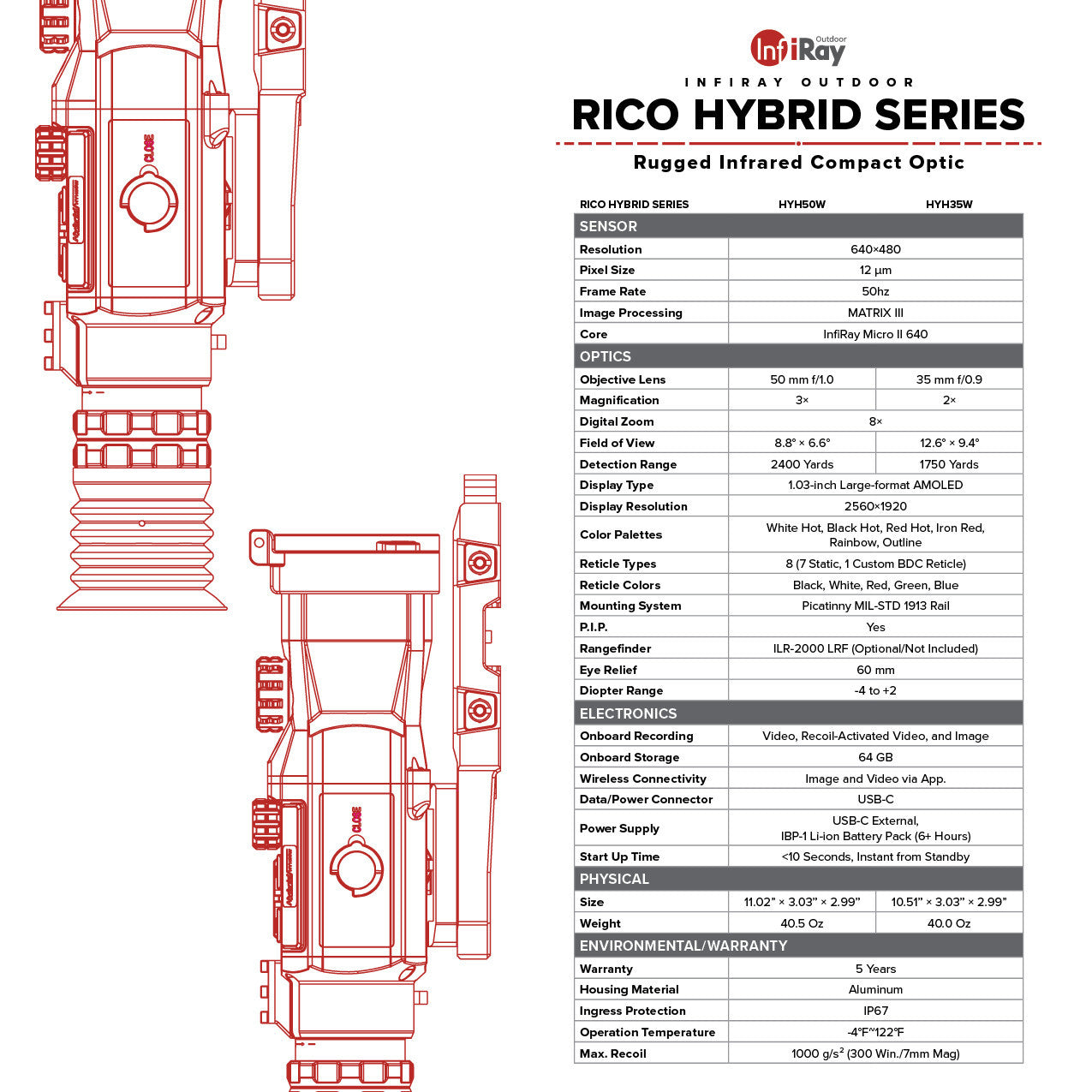

Optics
Objective Focal Length
50mm
Detection Range
2400 Yards
Objective Lens Material
Germanium
Optical Magnification
3X
Digital Magnification
8X, stepped
Focusing Mechanism
Manual Focus
Display Type
AMOLED
Vertical Angular Field of View
6.6°
Horizontal Angular Field of View
8.8°
Objective F#
1.1
Objective Diameter
50mm
Eye Relief
60mm
Diopter Range
-4 - +2
Display Resolution
2560×2560
-
Features & Performance
Mobile App
Yes
Wifi
Yes
Image Capture
Yes
Connector Type
USB-C
Video Output
Analog RS-170/NTSC
Connector Output
Power/Data
Onboard Recording
Yes
Warranty
5 Years
Reticle
8 (7 Static, 1 Custom BDC Reticle)
Color Palettes
White Hot, Black Hot, Red Hot, Iron Red, Rainbow, Outline
Rangefinder
ILR-2000 LRF (Optional/Not Included)
Picture-in-Picture
Yes
Storage Capacity
64GB
User-Updatable Firmware
Yes
One-Shot Zero
Yes
Stand-by Mode
Yes
Power Source
Built-In Battery Pack (4+ Hours),IBP-4 Power Bank (6+ Hours)
Run Time
6+
External Power Source
USB-C
Startup Time
Under 10 Seconds
Country of Manufacture
China
-
Environmental Specifications
Recoil Rating
1000 g/s² (300 Win./7mm Mag)
Operating Temperature Range
-4°F~122°F
Ingress Protection
IP67
-
Physical
Mounting Interface
Picatinny STD-1913 rail
Height
2.99
Width
3.03
Length
11.02
Housing Material
Aluminum
Weight
40.5
-
Sensor Specifications
Device Technology
Thermal Imaging
Sensor Type
InfiRay MICRO II
Sensor Pixel Size
12?m
Thermal Sensitivity
?25mK
Non-Uniformity Correction (NUC)
Manual, Automatic, Semi-Automatic
Spectral Response
8-12 Microns
Sensor Frame Rate
50hz
Sensor Resolution
640×512
Description

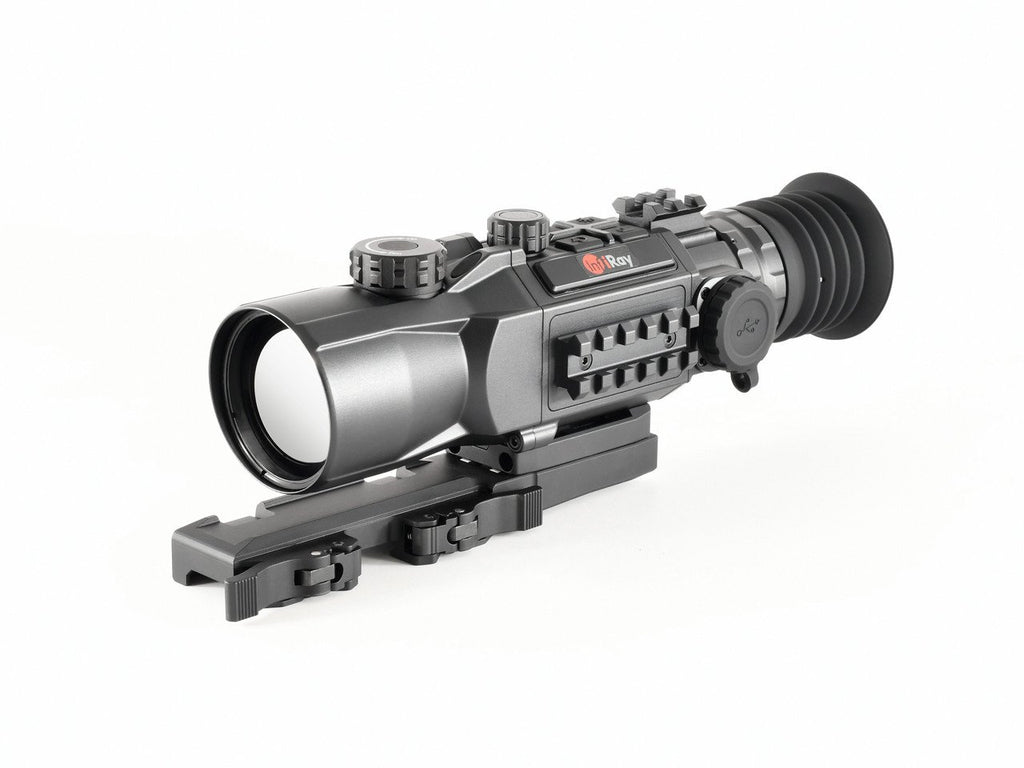

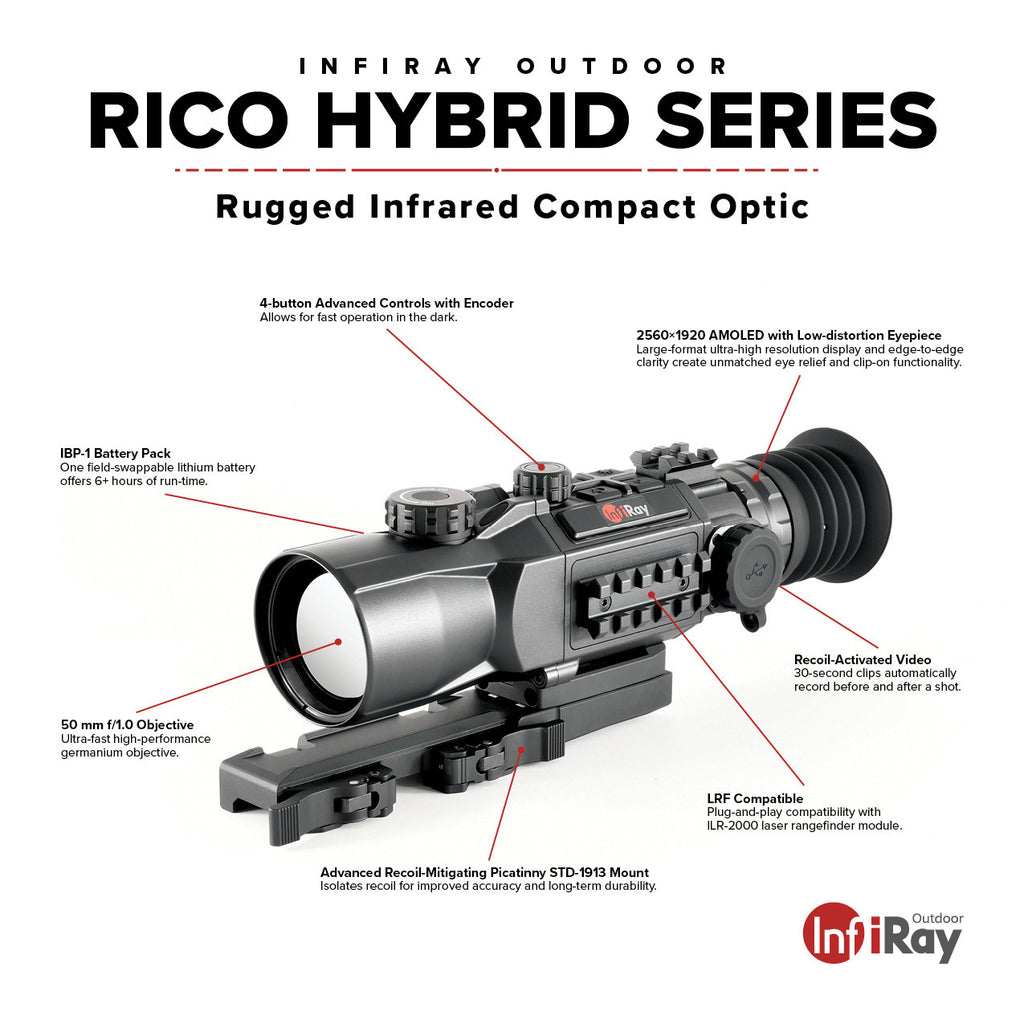

The RICO HYBRID fuses the capabilities of a thermal clip-on and a thermal weapon sight to create a new breed of thermal device. This new HYBRID breed gives you never-before-seen versatility and performance boasting a 2,400 yard detection range as a dedicated thermal sight or an inline clip-on sight with day optics up to 10X. The combination of the HYBRID’s low-distortion orthoscopic eyepiece paired with a 1.03” 2560x1920 UHD display allows for an extra large sight picture with edge to edge clarity. The HYBRID’s extra large sight picture is comfortable viewing as a dedicated sight, and still maintains the pixel density and resolution for use as a clip-on optic. The HYBRID also unlocks advanced new features such as compatibility with a 2,000 yard laser rangefinder, a custom reticle generator, bluetooth, and an onboard ballistic solver.
Ballistic Solver
The HYH50W supports ballistic calculation via a user-uploaded .xlsx file. Calculate your ballistics with your prefered software, then export and upload your trejectory in 5 meter increments. Once you have a ballistic profile loaded, plug in the ILR-2000 laser rangefinder and the HYBRID can calculate your drop and display a second reticle in split second.
-
