Garmin launched LiveScope 2 on July 7, and the headline everybody latched onto was the right one: no black box. The GLS 10 module that LiveScope and LiveScope Plus owners have been mounting, wiring, and cursing for years is gone. The sonar processing now lives inside the transducer itself.
That alone is worth the upgrade for a lot of anglers. Fewer boxes, fewer cables, fewer connections sitting in bilge water waiting to corrode. On a bass boat where every inch of console space matters, it is a real change.
Two transducers, two different jobs

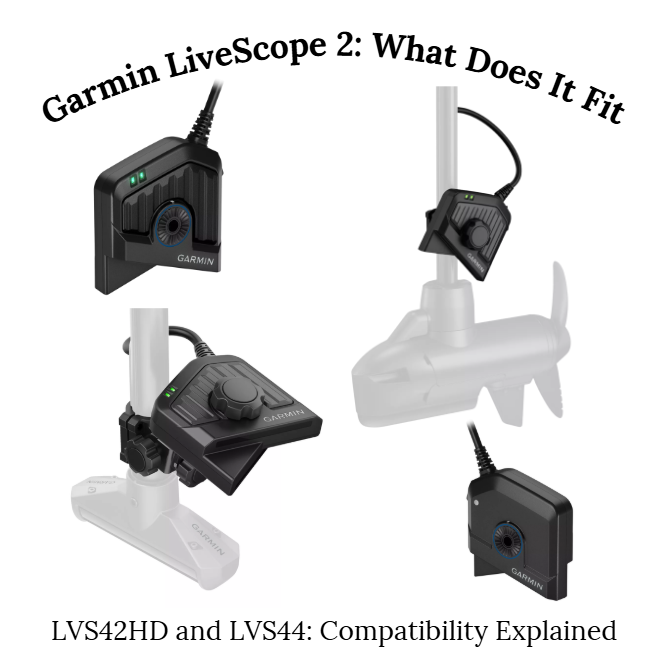

Garmin released LiveScope 2 in two versions, and they are not a good-better pair. They are built for different water.
The LVS44 is the long-range unit. It tracks out to 250 feet, with up to 20 percent more resolution and 25 percent more range than the system it replaces. If you fish open water, or you scan well away from the boat looking for schools and structure, this is the one.
The LVS42HD goes the other direction. It is tuned for close range, out to 125 feet, with up to 50 percent more detail on the fish sitting right around your boat. If you are picking apart brush piles and watching a bait drop, that extra detail is what you are paying for.
There is also a LiveScope 2 HD Ice Fishing version with a flexible cold-weather cable and an all-in-one power and network cable, for anyone who spends their winter on the hardwater.
The part nobody is talking about
Here is where it gets interesting, and where we have watched a lot of confusion this week.
LiveScope 2 does not need a black box, but it does need a network port on your display. It connects either to a Garmin Marine Network port, using the GMN1 adapter that comes in the box, or straight into a BlueNet port on the new GPSMAP 9000 series.
So the natural assumption is simple: if your chartplotter has a network port, you are good. Plenty of people have already made that assumption.
It is wrong.
Having the port is required, but it is not enough. Garmin also has to enable LiveScope 2 on that specific display, and there is a whole group of chartplotters with working network ports, which ran LiveScope Plus just fine, that will not run LiveScope 2. The GPSMAP 1042xsv is one. The GPSMAP 1242xsv is another. So is the entire ECHOMAP UHD gen 1 line.
Those are not cheap units. Somebody is going to buy a two thousand dollar transducer for a chartplotter that will never run it.
And it is not because your unit is old
This is the detail that surprised us most when we went through Garmin's compatibility data model by model.
The GPSMAP 8610xsv shipped in early 2019 and runs LiveScope 2. The ECHOMAP UHD 93sv shipped in late 2019 and does not. The older display is the supported one.
It happens inside a single product family too. Within the GPSMAP 8400 and 8600 badge, the large-format units from 2016 are excluded, while the small-format units from 2019 are supported. Same series name on the box. Opposite answer.
What actually separates them is the internal hardware platform, not the model year, not the screen size, and not the port on the back. LiveScope 2 sends far more detail to the screen than the older systems did, and the display has to draw that picture fast enough to stay real time. Whether the older platforms could keep up is a question only Garmin's engineers can answer, and Garmin has not published an answer.
We are not going to tell you it is impossible, because we cannot prove that. What we will tell you is that Garmin has not enabled it, has not said whether they will, and you should not buy a LiveScope 2 transducer betting on a future software update.
Check before you buy
We put together a full compatibility chart covering every Garmin display: the ones that work with LiveScope 2, the ones with a network port that still will not run it, and the ones that can never run any version of LiveScope. It is the most complete list we could build, and we verified every line against Garmin's own compatibility data.
See the full Garmin LiveScope 2 compatibility chart
If your unit is on the chart and you are still not sure, call us at 252-431-6001. We have been outfitting anglers in Henderson since 2015, and we will tell you straight, even when the answer costs us a sale.
