Minn Kota Ultrex

🚤 Cable-steer bow-mount with Spot-Lock GPS anchor. Best of both worlds: mechanical foot pedal responsiveness plus i-Pilot Spot-Lock and CoPilot. Twelve configurations from $2699 to $3599 covering shaft, voltage, and sonar combinations.

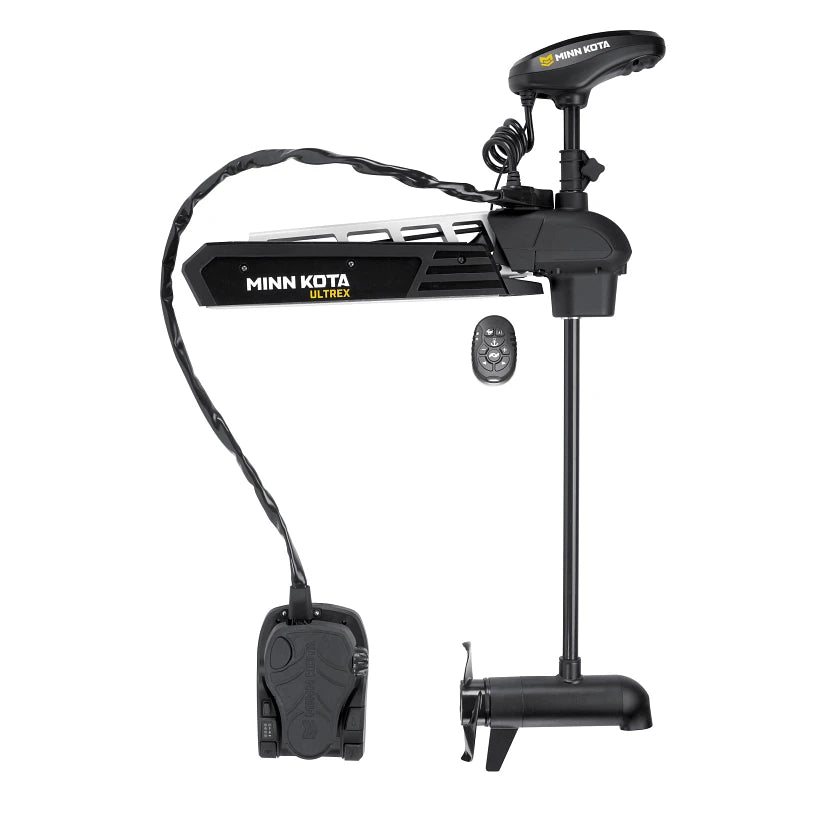

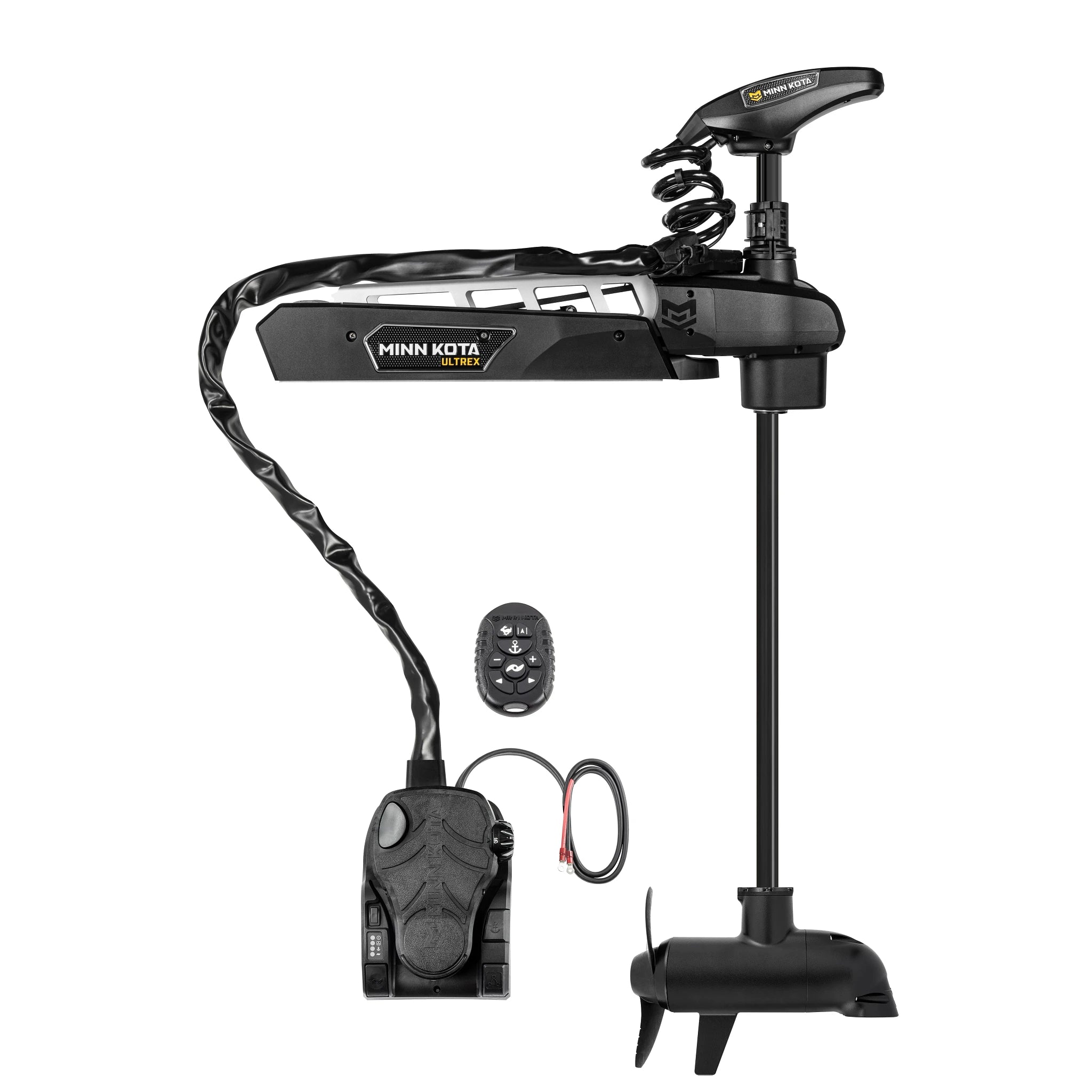

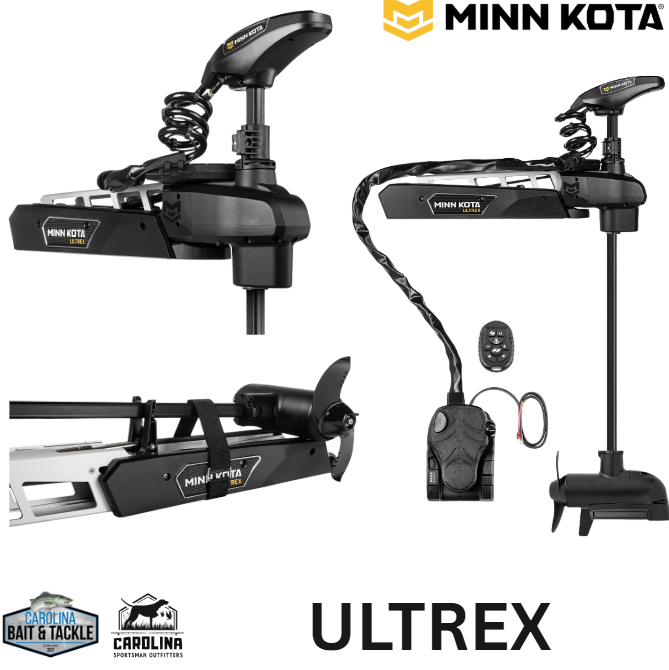

Minn Kota Ultrex Cable-Steer with Spot-Lock

The Minn Kota Ultrex is the unique cable-steer trolling motor with Spot-Lock GPS anchor. Other Spot-Lock motors (Terrova, Ulterra) use electric steering; Ultrex uses traditional cable-steer foot pedal for direct mechanical responsiveness while still providing i-Pilot Spot-Lock and CoPilot via remote. Twelve configurations covering 45, 52, and 60 inch shafts; 24V (80 lb) and 36V (112 lb) voltage; and three sonar options (none, Dual Spectrum CHIRP, or MEGA Down Imaging). Standard for tournament bass anglers who want cable-steer feel with GPS spot-lock features.

Ultrex exists for cable-steer purists who refuse to give up mechanical foot pedal responsiveness but want GPS Spot-Lock. The mechanical foot pedal cable-steer system gives zero-lag direct steering control that electric-steer Terrova and Ulterra cannot match. Tournament bass anglers running aggressive position changes (burst forward, hard turn, stop) prefer cable-steer for the immediate feedback. Ultrex adds Spot-Lock (GPS anchor hold) via a separate remote without sacrificing the cable-steer pedal. The 36V 112 lb thrust with MEGA Down Imaging variant ($3,500-$3,600) is the top-tier tournament configuration.

Minn Kota line context: Endura/Riptide Transom (transom-mount, hand-tiller, $350-$1,250). Edge (entry bow-mount cable-steer, $400-$800). Pontoon (pontoon-specific, $1,000-$1,150). Powerdrive (mid-tier electric-steer with optional CHIRP/OBN, $830-$1,750). Maxxum/Riptide Maxxum (cable-steer mid-tier, $900-$1,400). Fortrex/Riptide Fortrex (cable-steer premium, $1,600-$1,900). Riptide Powerdrive (saltwater electric-steer with i-Pilot, $1,660-$2,200). Riptide Kayak Terrova (saltwater kayak with i-Pilot, $1,900). Terrova/Riptide Terrova (electric-steer with i-Pilot GPS, $1,750-$4,000). Ulterra (Terrova plus AutoStow/AutoDeploy, $3,000-$3,400). Ultrex (cable-steer with Spot-Lock, $2,700-$3,600). Quest series (premium current generation: Terrova Quest, Ultrex Quest, Ulterra Quest, Riptide Instinct Quest, $3,700-$6,400).

What is i-Pilot? Minn Kota's integrated GPS and remote control system. i-Pilot includes (1) Spot-Lock GPS anchor that holds position over fish without anchor, (2) AutoPilot heading hold that maintains course while you fish, (3) waypoint navigation with route storage, and (4) speed control. Operated via Wireless Remote, Micro Remote, or CoPilot Remote depending on the motor. i-Pilot Link is the integration with compatible Humminbird HELIX G4N, XPLORE, and APEX fishfinders, sharing waypoints and providing on-screen control.

What is MEGA Down Imaging? Humminbird's premium down imaging technology built into the trolling motor lower unit. Compared to standard Dual Spectrum CHIRP, MEGA Down Imaging provides significantly higher detail on structure, cover, and fish at down-looking angles. The transducer fires through the trolling motor, eliminating the need for a separate transom-mount transducer. Compatible with Humminbird HELIX G4N, XPLORE, and APEX fishfinders. For Lowrance ecosystems, MEGA Down Imaging is not relevant; pick a no-sonar variant and run a Lowrance Active Imaging or ActiveTarget setup separately.

Key Features

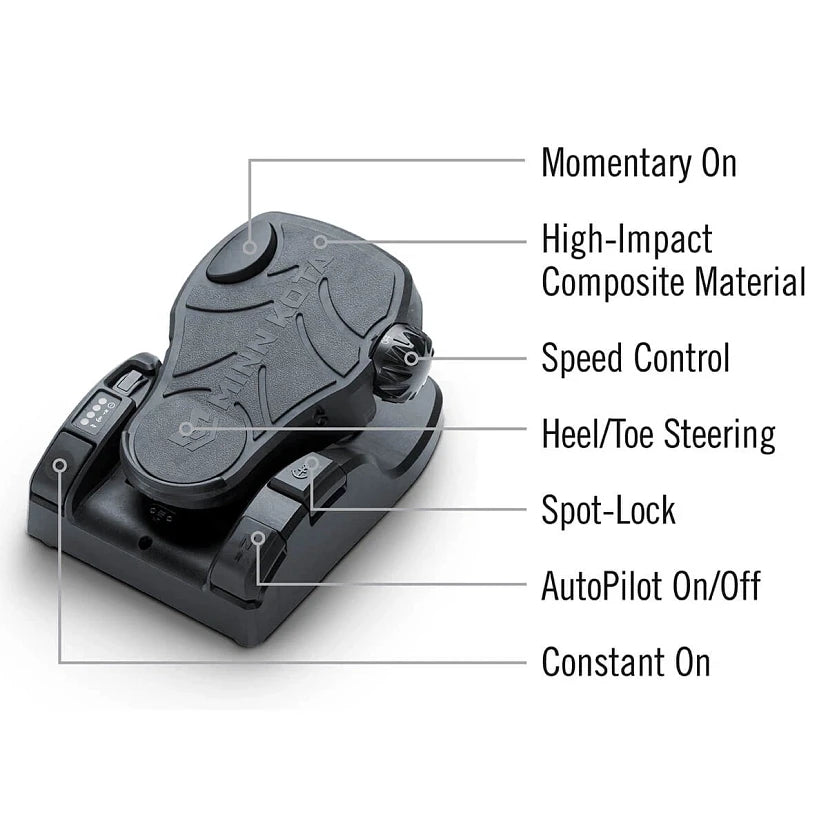

• ✅ Cable-Steer Foot Pedal. Mechanical direct-drive responsiveness preferred by tournament anglers
• ✅ Spot-Lock GPS Anchor. i-Pilot Spot-Lock activated via remote

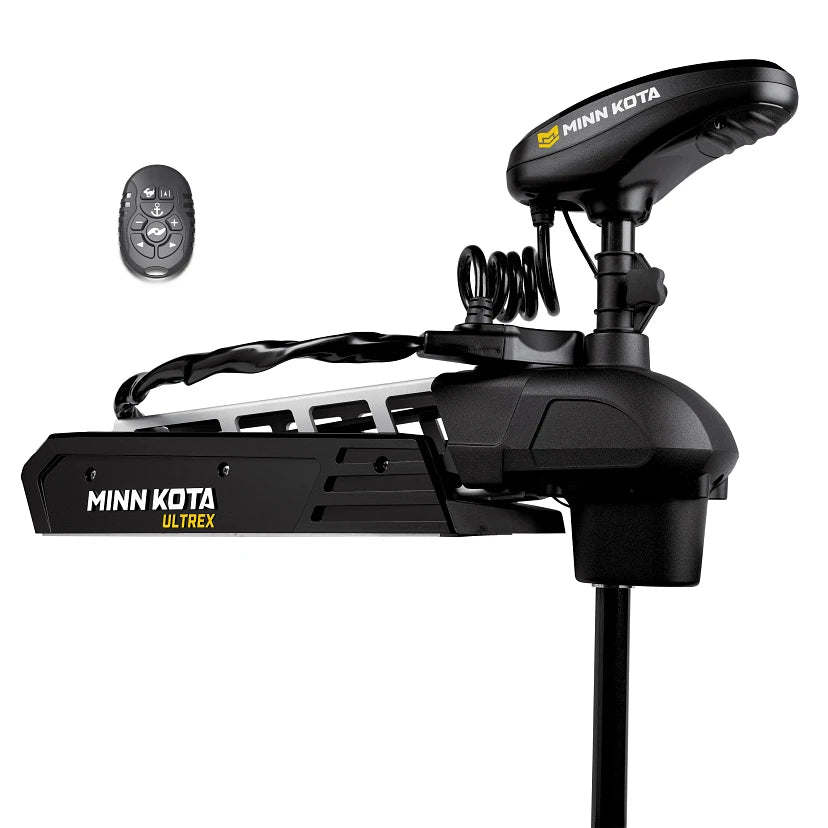

• ✅ CoPilot Wireless Remote. GPS waypoint navigation and AutoPilot
• ✅ Optional Built-In MEGA Down Imaging. Humminbird premium imaging (5 of 12 variants)
• ✅ Optional Built-In Dual Spectrum CHIRP. Standard CHIRP sonar (5 of 12 variants)
• ✅ Available Shaft Lengths. 45, 52, and 60 inch
• ✅ Voltage Options. 24V (80 lb) and 36V (112 lb thrust)
• ✅ Composite Shaft. Indestructible, lifetime warranty
• ✅ iLink Compatible. Networks with Humminbird HELIX G4N, XPLORE, APEX
• ❌ No 12V Configuration. Lowest tier is 24V. For 12V freshwater see Terrova or Powerdrive
• ❌ Configuration Matrix Is Complex. Twelve variants. Read configuration guide carefully
• ❌ MEGA Down Imaging Variants Need Compatible Humminbird Fishfinder. For full MEGA DI display see HELIX G4N, XPLORE, APEX
• ❌ Cable-Steer Has Learning Curve. Direct mechanical control feels different from electric-steer for new anglers

Configuration Guide

The Ultrex comes in twelve configurations across three axes: shaft length, voltage, and built-in sonar:

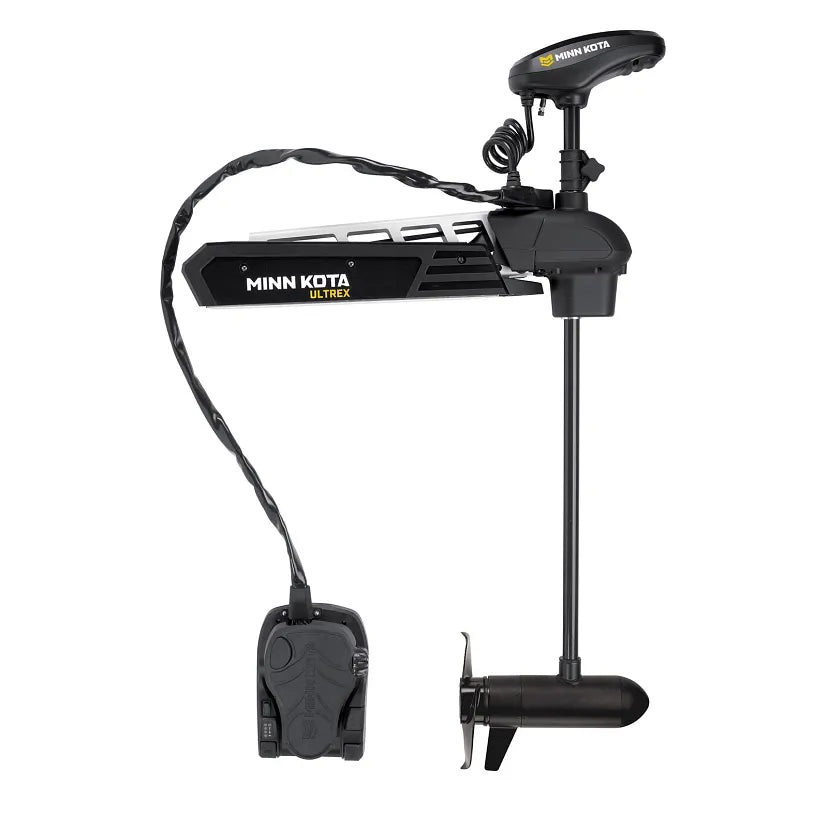

• 45 inch shaft, 24V 80 lb thrust, no sonar ($2,700). Cheapest Ultrex. Right for bass boats 17-19 ft on tighter budget.
• 52 inch shaft, 24V 80 lb thrust, no sonar ($2,800). Standard 52 inch shaft no sonar.
• 45 inch shaft, 24V 80 lb thrust, Dual Spectrum CHIRP ($3,200). CHIRP at 45 inch.

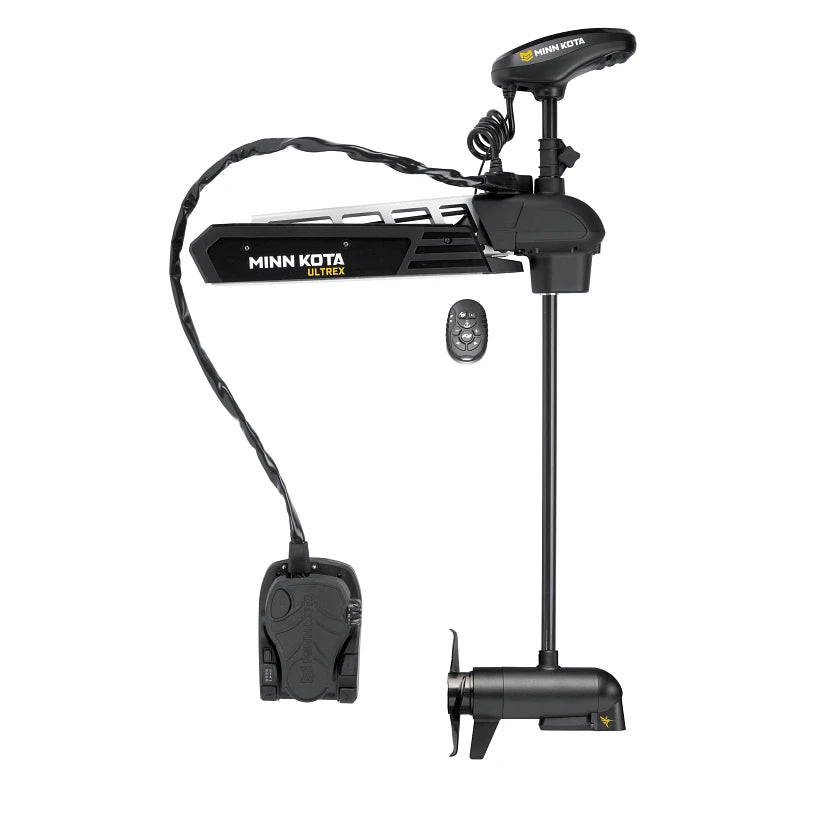

• 45 inch shaft, 24V 80 lb thrust, MEGA Down Imaging ($3,300). 45 inch with MEGA DI.
• 52 inch shaft, 24V 80 lb thrust, MEGA Down Imaging ($3,400). 52 inch with MEGA DI.
• 52 inch shaft, 24V 80 lb thrust, Dual Spectrum CHIRP ($3,300). 52 inch with CHIRP.
• 45 inch shaft, 36V 112 lb thrust, Dual Spectrum CHIRP ($3,400). 36V at 45 inch with CHIRP.

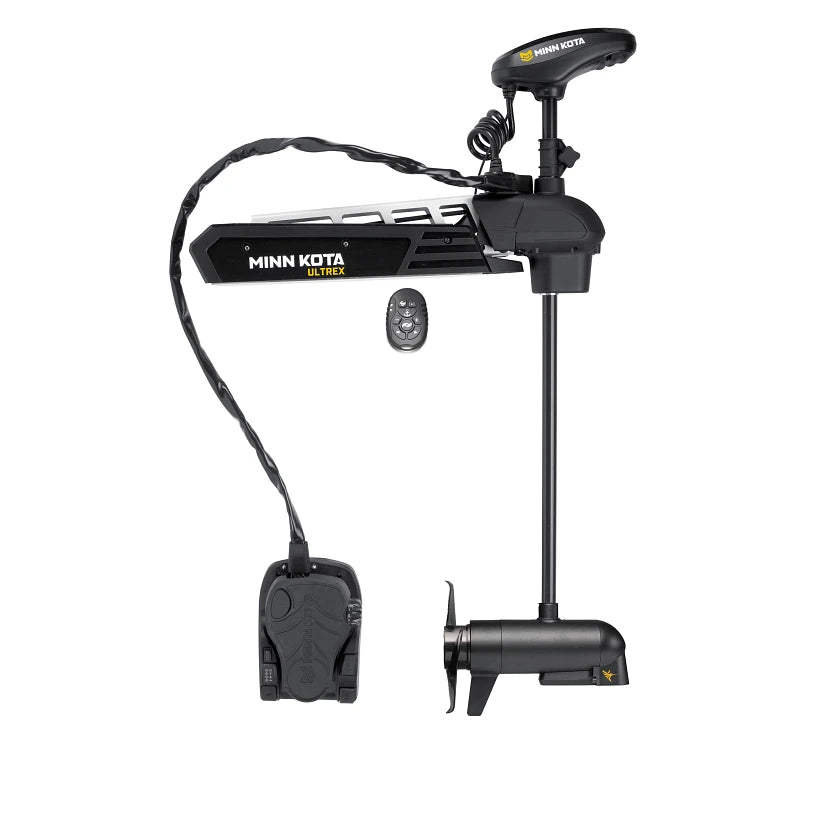

• 45 inch shaft, 36V 112 lb thrust, MEGA Down Imaging ($3,500). 36V at 45 inch with MEGA DI.
• 52 inch shaft, 36V 112 lb thrust, Dual Spectrum CHIRP ($3,500). 36V at 52 inch with CHIRP.
• 52 inch shaft, 36V 112 lb thrust, MEGA Down Imaging ($3,600). 36V at 52 inch with MEGA DI.
• 60 inch shaft, 36V 112 lb thrust, Dual Spectrum CHIRP ($3,400). 60 inch with CHIRP at 36V.
• 60 inch shaft, 36V 112 lb thrust, MEGA Down Imaging ($3,500). Top-tier 60 inch Ultrex. Right for tournament bass boats 20-22 ft.

Cable-steer with Spot-Lock explained: Ultrex uses a traditional cable-steer foot pedal for steering control (mechanical, direct-drive). Add Spot-Lock and CoPilot via the i-Pilot Link Remote. When you press Spot-Lock on the remote, the motor takes over and holds GPS position automatically. Press the foot pedal again to take back control. This is the only Minn Kota that combines mechanical cable-steer with Spot-Lock GPS.

No 12V option: Ultrex starts at 24V. For 12V freshwater applications see Terrova or Powerdrive.

Who This Is For

This trolling motor is best for tournament bass anglers preferring cable-steer responsiveness, BFL and B.A.S.S. Opens participants, MLF Pro Tour anglers running cable-steer, multi-species tournament anglers, and Humminbird ecosystem owners wanting MEGA Down Imaging with cable-steer foot pedal.

Specifications

• Mounting: Bow-mount
• Steering: Cable-steer foot pedal with Spot-Lock GPS via remote
• Water Type: Freshwater
• Variants Available: 12
• Price Range: $2,699 to $3,599 depending on configuration
• Shaft Material: Composite, indestructible, lifetime warranty
• Warranty: 2-year freshwater plus lifetime composite shaft

Compatibility Reference

• Battery: 12V deep-cycle for 12V variants, two 12V in series for 24V, three for 36V. Lithium compatible
• Sonar: Universal Sonar 2 (US2) compatible. Built-in Dual Spectrum CHIRP or MEGA Down Imaging on select variants.
• i-Pilot Link: Yes, integrates with Humminbird HELIX G4N, XPLORE, APEX
• One-Boat Network (OBN): Compatible with Humminbird ecosystem
• Mount: Standard bow casting deck (or kayak attachment for Kayak Terrova variants)

Warranty

Covered by Minn Kota's 2-year freshwater limited warranty, plus lifetime warranty on the composite shaft against breakage. Carolina Sportsman Outfitters can help with warranty claims, parts orders, and post-purchase setup. Call 252-431-6001.

Frequently Asked Questions

What is i-Pilot?

Minn Kota's integrated GPS and remote control system, included on Terrova, Riptide Terrova, Ulterra, Quest variants, and Ultrex (with separate Spot-Lock remote). Features include Spot-Lock GPS anchor, AutoPilot heading hold, waypoint navigation, and speed control. Operated via wireless remote.

i-Pilot vs i-Pilot Link?

i-Pilot is the standalone Minn Kota system with its own remote. i-Pilot Link adds integration with compatible Humminbird fishfinders (HELIX G4N, XPLORE, APEX), letting you control trolling motor functions from the fishfinder screen, share waypoints, and display Spot-Lock coordinates on your fishfinder. Most current i-Pilot motors include i-Pilot Link compatibility.

What is Spot-Lock?

GPS anchor hold. Press Spot-Lock on the remote and the trolling motor automatically holds your boat in position over fish, structure, or cover. Compensates for wind and current. Replaces traditional anchoring for many bass and crappie applications. Game-changing feature once you fish with it.

What is AutoPilot?

Heading hold. Set a course and AutoPilot maintains the heading while you fish. Useful for trolling, parallel-structure fishing, or navigating to a waypoint. Compensates for wind drift.

What is MEGA Down Imaging in the trolling motor?

Humminbird's premium down imaging technology built into the trolling motor lower unit. Compared to standard Dual Spectrum CHIRP, MEGA DI provides higher detail on structure, cover, and fish at down-looking angles. Available on select Terrova, Ulterra, and Ultrex variants. Compatible with Humminbird HELIX G4N, XPLORE, and APEX fishfinders. For Lowrance or Garmin ecosystems, MEGA DI is not relevant - pick a no-sonar variant and run a separate transducer.

AutoStow/AutoDeploy on Ulterra explained?

Push a button on the i-Pilot remote and the Ulterra hydraulically stows or deploys itself in approximately 8 seconds. No manual cable pull. Manual stow on Terrova or Ultrex requires pulling a release strap and pushing the motor up by hand. For solo anglers, anglers with shoulder limitations, or anglers fishing windy conditions, AutoStow is significant value. The hydraulic system adds complexity and may require service over years.

Why pick Ultrex (cable-steer) over Terrova (electric-steer)?

Ultrex uses traditional cable-steer foot pedal for steering. Tournament bass anglers running aggressive position changes prefer cable-steer for the immediate mechanical feedback (zero lag). Terrova electric-steer has a slight processing delay. Ultrex still provides Spot-Lock and CoPilot via the i-Pilot Link remote, so you don't lose GPS features. Choice between Ultrex and Terrova is preference: cable-steer for tournament responsiveness, electric-steer for smoother general use.

How do I choose shaft length and voltage?

Shaft: measure waterline to bow deck top, add 16-18 inches. 16-17 ft uses 36-45 inch, 18-20 ft uses 45-52 inch, 20-22 ft uses 52-60 inch, 22+ ft uses 60-72 inch (Riptide Terrova has 87 inch for sportfisher applications). Voltage: 12V/55 lb for boats <18 ft, 24V/80 lb for 18-21 ft, 36V/112 lb for 21+ ft or heavy current/wind. Higher voltage means more thrust and longer runtime per amp-hour.

Saltwater vs freshwater models?

Riptide series uses stainless hardware and sealed electronics for inshore saltwater. Standard freshwater models corrode in saltwater within months. For inshore saltwater (bays, sounds, estuaries) Riptide is required. For offshore, even Riptide is not appropriate. 2-year saltwater warranty.

Lithium vs lead-acid batteries?

Lithium is 60-70% lighter and provides consistent voltage throughout discharge (no thrust drop-off as battery drains). Cost 2-3x more upfront but typically last 5-10x longer. For tournament anglers and serious bass anglers, lithium is increasingly standard. For 36V applications, three lithium batteries can save 100+ pounds total weight. Match battery group size to motor voltage requirements.

Do I need professional installation?

Bow-mount installation is typically DIY for handy anglers (2-4 hours including mounting plate, battery wiring, breaker). For OBN integration with Humminbird via NMEA 2000, complexity increases. Professional install ($200-$500) appropriate for first-time installers, multi-battery setups, or boats requiring deck modifications. Carolina Sportsman Outfitters coordinates installer referrals.
