Minn Kota - Terrova

🚤 Premium freshwater electric-steer bow-mount with i-Pilot GPS and optional MEGA Down Imaging. Thirteen configurations from $1749 to $2999 covering shaft lengths, voltages, and built-in sonar options.

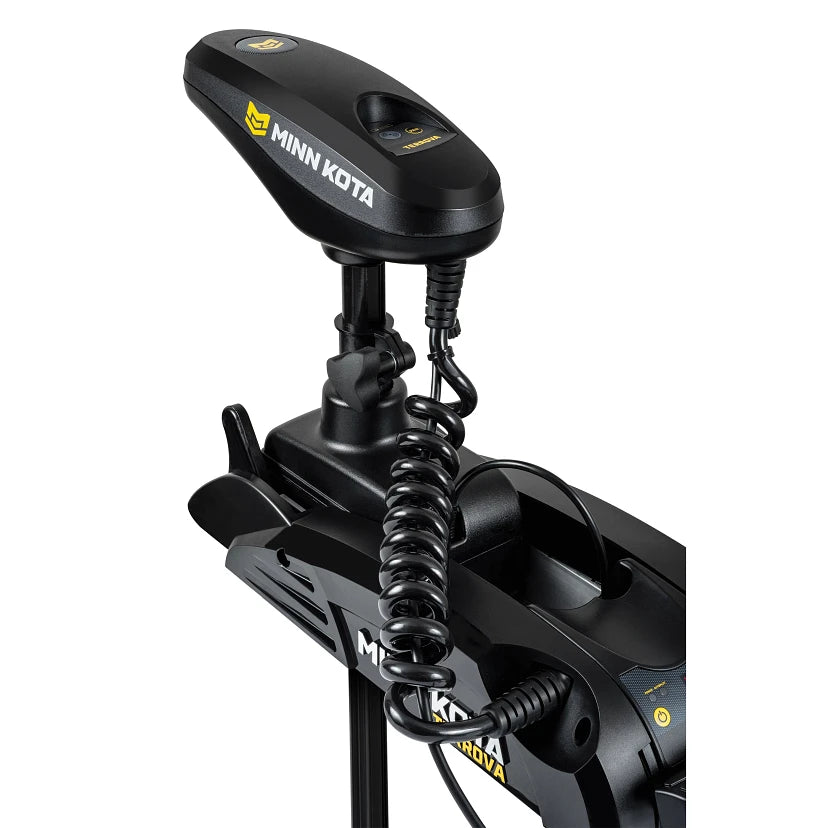

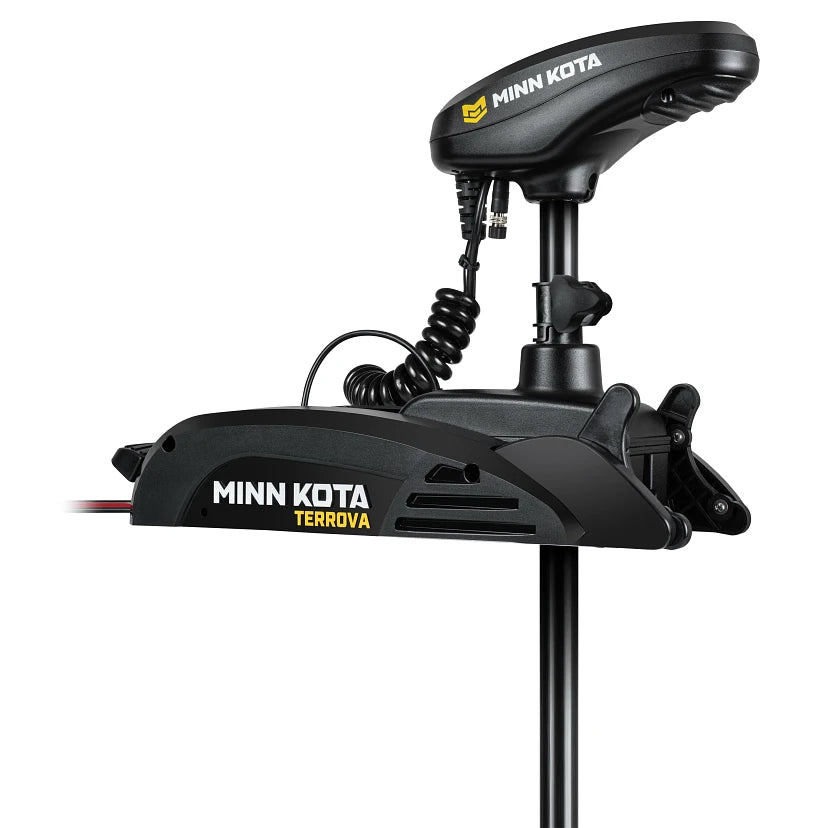

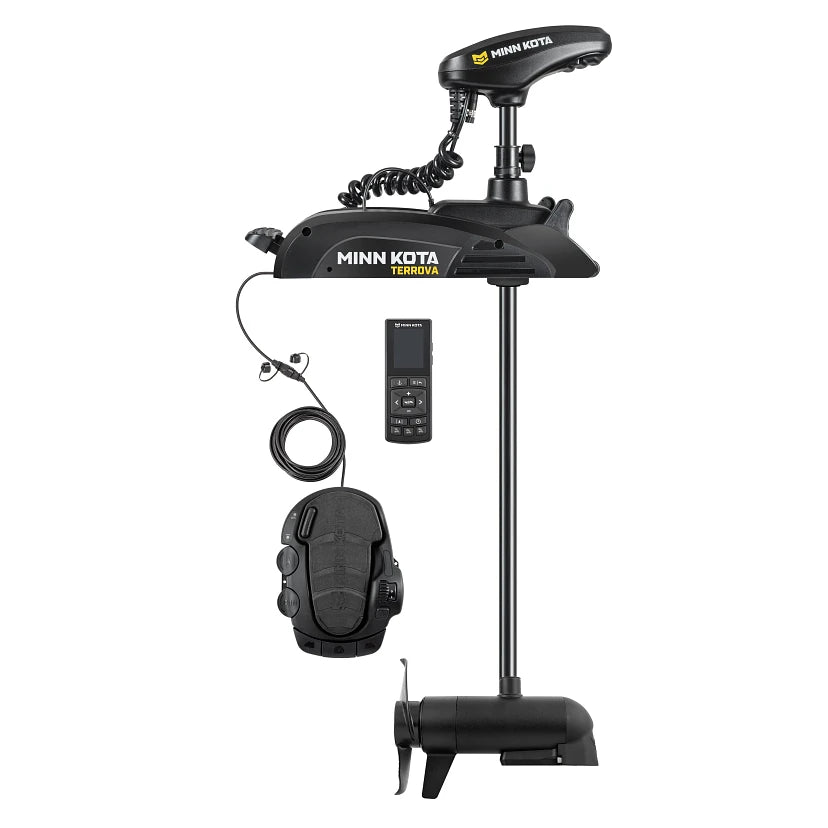

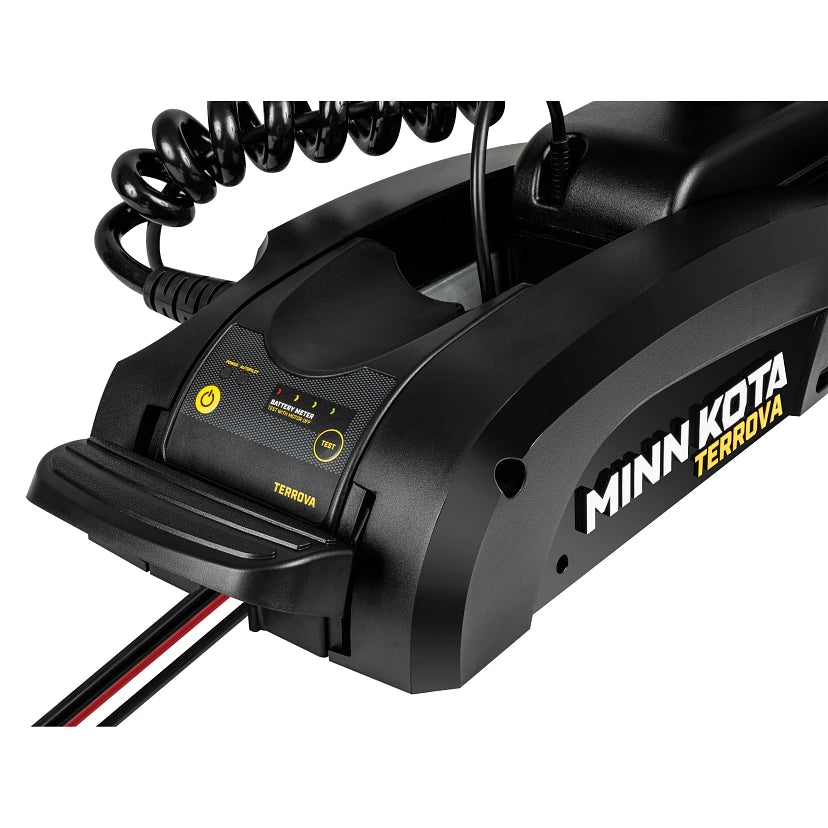

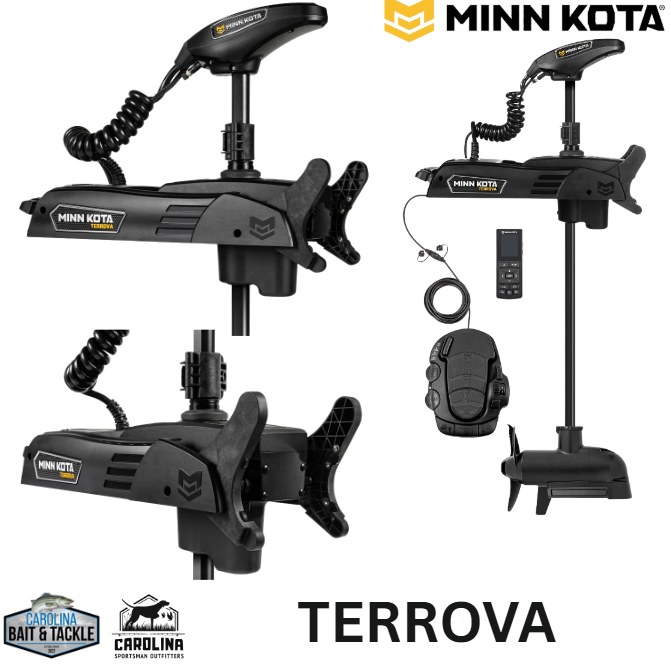

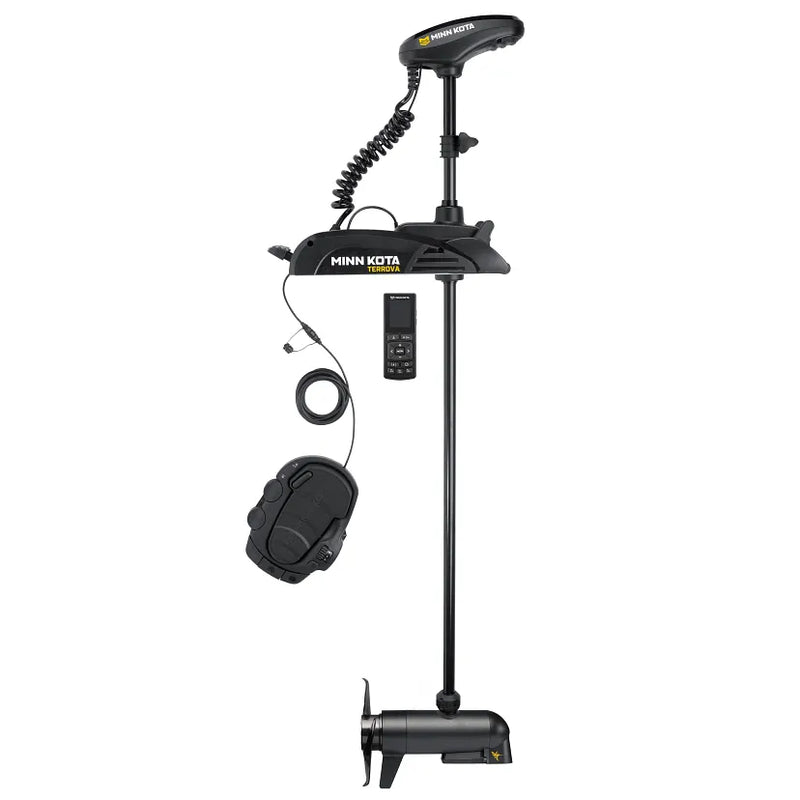

Minn Kota Terrova Premium Bow-Mount with i-Pilot GPS

The Minn Kota Terrova is the premium freshwater electric-steer bow-mount with i-Pilot GPS. Above Powerdrive in the Minn Kota line, below Ulterra (which adds AutoStow/AutoDeploy) and Quest series. Thirteen configurations covering 45 inch, 54 inch, 60 inch, and 72 inch shafts; 12V (55 lb), 24V (80 lb), and 36V (112 lb) voltage; and three built-in sonar options (none, Dual Spectrum CHIRP, or MEGA Down Imaging). Standard for tournament bass anglers who don't need AutoStow/AutoDeploy or Quest-tier features.

Terrova is the workhorse of the Minn Kota tournament bass line. Configuration flexibility is the strength: pick exactly the shaft length, voltage, and sonar combination that matches your boat and ecosystem. The MEGA Down Imaging variants are notable: this is Humminbird MEGA Imaging built into the trolling motor lower unit, providing high-detail down imaging without a separate transducer. Significant value for Humminbird ecosystem owners. For pure i-Pilot GPS needs without sonar integration, the no-sonar variants ($1,750-$2,700) save $250-$500 over sonar-equipped variants.

Minn Kota line context: Endura/Riptide Transom (transom-mount, hand-tiller, $350-$1,250). Edge (entry bow-mount cable-steer, $400-$800). Pontoon (pontoon-specific, $1,000-$1,150). Powerdrive (mid-tier electric-steer with optional CHIRP/OBN, $830-$1,750). Maxxum/Riptide Maxxum (cable-steer mid-tier, $900-$1,400). Fortrex/Riptide Fortrex (cable-steer premium, $1,600-$1,900). Riptide Powerdrive (saltwater electric-steer with i-Pilot, $1,660-$2,200). Riptide Kayak Terrova (saltwater kayak with i-Pilot, $1,900). Terrova/Riptide Terrova (electric-steer with i-Pilot GPS, $1,750-$4,000). Ulterra (Terrova plus AutoStow/AutoDeploy, $3,000-$3,400). Ultrex (cable-steer with Spot-Lock, $2,700-$3,600). Quest series (premium current generation: Terrova Quest, Ultrex Quest, Ulterra Quest, Riptide Instinct Quest, $3,700-$6,400).

What is i-Pilot? Minn Kota's integrated GPS and remote control system. i-Pilot includes (1) Spot-Lock GPS anchor that holds position over fish without anchor, (2) AutoPilot heading hold that maintains course while you fish, (3) waypoint navigation with route storage, and (4) speed control. Operated via Wireless Remote, Micro Remote, or CoPilot Remote depending on the motor. i-Pilot Link is the integration with compatible Humminbird HELIX G4N, XPLORE, and APEX fishfinders, sharing waypoints and providing on-screen control.

What is MEGA Down Imaging? Humminbird's premium down imaging technology built into the trolling motor lower unit. Compared to standard Dual Spectrum CHIRP, MEGA Down Imaging provides significantly higher detail on structure, cover, and fish at down-looking angles. The transducer fires through the trolling motor, eliminating the need for a separate transom-mount transducer. Compatible with Humminbird HELIX G4N, XPLORE, and APEX fishfinders. For Lowrance ecosystems, MEGA Down Imaging is not relevant; pick a no-sonar variant and run a Lowrance Active Imaging or ActiveTarget setup separately.

Key Features

• ✅ Bow-Mount Electric-Steer. Smooth electric steering at premium tier
• ✅ i-Pilot GPS. Spot-Lock, AutoPilot, waypoint navigation
• ✅ Optional Built-In MEGA Down Imaging. Humminbird premium imaging in trolling motor lower unit (4 of 13 variants)
• ✅ Optional Built-In Dual Spectrum CHIRP. Standard CHIRP sonar in lower unit (8 of 13 variants)
• ✅ Available Shaft Lengths. 45, 54, 60, and 72 inch
• ✅ Voltage Options. 12V (55 lb), 24V (80 lb), 36V (112 lb thrust)
• ✅ Composite Shaft. Indestructible, lifetime warranty
• ✅ iLink Compatible. Networks with Humminbird HELIX G4N, XPLORE, APEX
• ✅ Universal Sonar 2. Even no-sonar variants compatible with most fishfinders
• ❌ No AutoStow/AutoDeploy. For automatic stow and deploy step up to Ulterra
• ❌ Configuration Matrix Is Complex. Thirteen variants. Read configuration guide carefully
• ❌ MEGA Down Imaging Variants Need Compatible Humminbird Fishfinder. For full MEGA DI display, need HELIX G4N, XPLORE, or APEX

Configuration Guide

The Terrova comes in thirteen configurations across three axes: shaft length, voltage/thrust, and built-in sonar (none, Dual Spectrum CHIRP, or MEGA Down Imaging):

• 54 inch shaft, 12V 55 lb thrust, no sonar ($1,750). Cheapest Terrova. Right for small bass boats 17-18 ft.
• 45 inch shaft, 12V 55 lb thrust, Dual Spectrum CHIRP ($2,000). Short-shaft entry with built-in CHIRP sonar.
• 54 inch shaft, 12V 55 lb thrust, Dual Spectrum CHIRP ($2,050). Standard small bass boat configuration with built-in CHIRP sonar.
• 60 inch shaft, 24V 80 lb thrust, no sonar ($2,100). Step up to 24V without sonar. Two batteries required.
• 45 inch shaft, 24V 80 lb thrust, Dual Spectrum CHIRP ($2,300). 24V at 45 inch shaft with sonar.
• 45 inch shaft, 24V 80 lb thrust, MEGA Down Imaging ($2,400). First MEGA Down Imaging variant. Premium imaging in trolling motor lower unit.
• 60 inch shaft, 24V 80 lb thrust, Dual Spectrum CHIRP ($2,400). Standard 60 inch with CHIRP.
• 60 inch shaft, 24V 80 lb thrust, MEGA Down Imaging ($2,500). 60 inch with premium MEGA Down Imaging.
• 60 inch shaft, 36V 112 lb thrust, Dual Spectrum CHIRP ($2,600). 36V tier with CHIRP. Three batteries required.
• 60 inch shaft, 36V 112 lb thrust, MEGA Down Imaging ($2,700). 60 inch with MEGA Down Imaging at 36V.
• 72 inch shaft, 24V 80 lb thrust, Dual Spectrum CHIRP ($2,700). Long 72 inch with CHIRP at 24V.
• 72 inch shaft, 36V 112 lb thrust, Dual Spectrum CHIRP ($2,900). 72 inch at 36V with CHIRP.
• 72 inch shaft, 36V 112 lb thrust, MEGA Down Imaging ($3,000). Top-tier Terrova. Right for tournament bass boats 21-22 ft running Humminbird ecosystem.

MEGA Down Imaging value: Humminbird's premium imaging built into the trolling motor lower unit. Compared to standard Dual Spectrum CHIRP, MEGA Down Imaging provides higher detail on structure, cover, and fish at down-looking angles. The transducer fires through the motor lower unit, eliminating the need for a separate transom-mount transducer. Significant for Humminbird HELIX G4N, XPLORE, and APEX ecosystems. Premium of $100-$300 over CHIRP variants.

No-sonar variants: If you already run a separate transducer (transom-mount or in-hull) or prefer to keep sonar separate from the trolling motor, the no-sonar Terrova variants save $250-$500. Most common for anglers building from existing rigs or running ActiveTarget/LiveScope live sonar (which lives on a separate dedicated transducer regardless).

Who This Is For

This trolling motor is best for tournament bass anglers on bass boats 18-22 ft, multi-species anglers wanting i-Pilot, Humminbird ecosystem owners wanting MEGA Down Imaging integration, crappie tournament anglers, and BFL/B.A.S.S. Opens participants.

Specifications

• Mounting: Bow-mount
• Steering: Electric-steer with i-Pilot GPS
• Water Type: Freshwater
• Variants Available: 13
• Price Range: $1,749 to $2,999 depending on configuration
• Shaft Material: Composite, indestructible, lifetime warranty
• Warranty: 2-year freshwater plus lifetime composite shaft

Compatibility Reference

• Battery: 12V deep-cycle for 12V variants, two 12V in series for 24V, three for 36V. Lithium compatible
• Sonar: Universal Sonar 2 (US2) compatible. Built-in Dual Spectrum CHIRP or MEGA Down Imaging on select variants.
• i-Pilot Link: Yes, integrates with Humminbird HELIX G4N, XPLORE, APEX
• One-Boat Network (OBN): Compatible with Humminbird ecosystem
• Mount: Standard bow casting deck (or kayak attachment for Kayak Terrova variants)

Warranty

Covered by Minn Kota's 2-year freshwater limited warranty, plus lifetime warranty on the composite shaft against breakage. Carolina Sportsman Outfitters can help with warranty claims, parts orders, and post-purchase setup. Call 252-431-6001.

Frequently Asked Questions

What is i-Pilot?

Minn Kota's integrated GPS and remote control system, included on Terrova, Riptide Terrova, Ulterra, Quest variants, and Ultrex (with separate Spot-Lock remote). Features include Spot-Lock GPS anchor, AutoPilot heading hold, waypoint navigation, and speed control. Operated via wireless remote.

i-Pilot vs i-Pilot Link?

i-Pilot is the standalone Minn Kota system with its own remote. i-Pilot Link adds integration with compatible Humminbird fishfinders (HELIX G4N, XPLORE, APEX), letting you control trolling motor functions from the fishfinder screen, share waypoints, and display Spot-Lock coordinates on your fishfinder. Most current i-Pilot motors include i-Pilot Link compatibility.

What is Spot-Lock?

GPS anchor hold. Press Spot-Lock on the remote and the trolling motor automatically holds your boat in position over fish, structure, or cover. Compensates for wind and current. Replaces traditional anchoring for many bass and crappie applications. Game-changing feature once you fish with it.

What is AutoPilot?

Heading hold. Set a course and AutoPilot maintains the heading while you fish. Useful for trolling, parallel-structure fishing, or navigating to a waypoint. Compensates for wind drift.

What is MEGA Down Imaging in the trolling motor?

Humminbird's premium down imaging technology built into the trolling motor lower unit. Compared to standard Dual Spectrum CHIRP, MEGA DI provides higher detail on structure, cover, and fish at down-looking angles. Available on select Terrova, Ulterra, and Ultrex variants. Compatible with Humminbird HELIX G4N, XPLORE, and APEX fishfinders. For Lowrance or Garmin ecosystems, MEGA DI is not relevant - pick a no-sonar variant and run a separate transducer.

AutoStow/AutoDeploy on Ulterra explained?

Push a button on the i-Pilot remote and the Ulterra hydraulically stows or deploys itself in approximately 8 seconds. No manual cable pull. Manual stow on Terrova or Ultrex requires pulling a release strap and pushing the motor up by hand. For solo anglers, anglers with shoulder limitations, or anglers fishing windy conditions, AutoStow is significant value. The hydraulic system adds complexity and may require service over years.

Why pick Ultrex (cable-steer) over Terrova (electric-steer)?

Ultrex uses traditional cable-steer foot pedal for steering. Tournament bass anglers running aggressive position changes prefer cable-steer for the immediate mechanical feedback (zero lag). Terrova electric-steer has a slight processing delay. Ultrex still provides Spot-Lock and CoPilot via the i-Pilot Link remote, so you don't lose GPS features. Choice between Ultrex and Terrova is preference: cable-steer for tournament responsiveness, electric-steer for smoother general use.

How do I choose shaft length and voltage?

Shaft: measure waterline to bow deck top, add 16-18 inches. 16-17 ft uses 36-45 inch, 18-20 ft uses 45-52 inch, 20-22 ft uses 52-60 inch, 22+ ft uses 60-72 inch (Riptide Terrova has 87 inch for sportfisher applications). Voltage: 12V/55 lb for boats <18 ft, 24V/80 lb for 18-21 ft, 36V/112 lb for 21+ ft or heavy current/wind. Higher voltage means more thrust and longer runtime per amp-hour.

Saltwater vs freshwater models?

Riptide series uses stainless hardware and sealed electronics for inshore saltwater. Standard freshwater models corrode in saltwater within months. For inshore saltwater (bays, sounds, estuaries) Riptide is required. For offshore, even Riptide is not appropriate. 2-year saltwater warranty.

Lithium vs lead-acid batteries?

Lithium is 60-70% lighter and provides consistent voltage throughout discharge (no thrust drop-off as battery drains). Cost 2-3x more upfront but typically last 5-10x longer. For tournament anglers and serious bass anglers, lithium is increasingly standard. For 36V applications, three lithium batteries can save 100+ pounds total weight. Match battery group size to motor voltage requirements.

Do I need professional installation?

Bow-mount installation is typically DIY for handy anglers (2-4 hours including mounting plate, battery wiring, breaker). For OBN integration with Humminbird via NMEA 2000, complexity increases. Professional install ($200-$500) appropriate for first-time installers, multi-battery setups, or boats requiring deck modifications. Carolina Sportsman Outfitters coordinates installer referrals.
