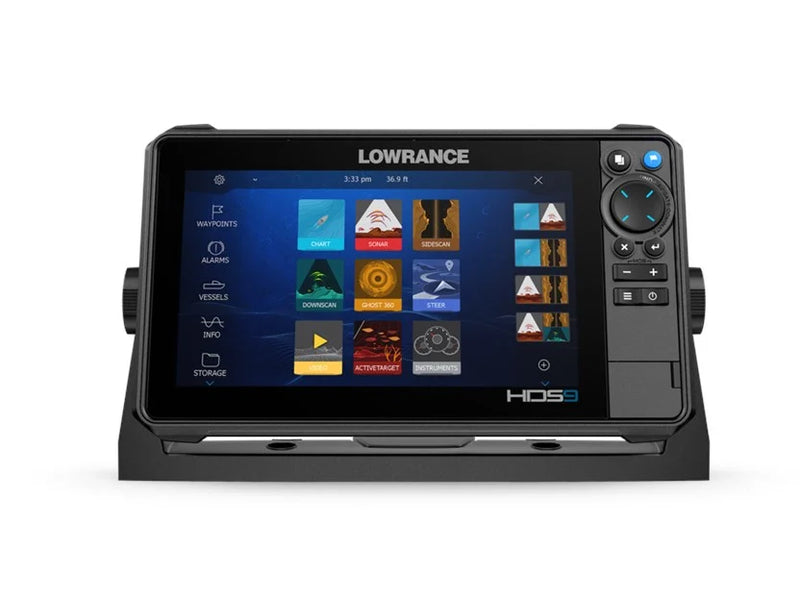

Lowrance HDS PRO Fishfinder & Chartplotter | 9", 10", 12", 16"

🎣 Lowrance's flagship. Pick your screen size, decide whether you want the transducer in the box, and you have a helm that will still be current when you add live sonar next season.

HDS PRO is built around the SolarMAX HD touchscreen, readable at extreme angles and through polarized sunglasses, which is the difference between guessing and seeing on a bright afternoon. Every unit is ActiveTarget 2 ready and Active Imaging HD ready, running up to 1.2 MHz for the sharpest CHIRP, SideScan and DownScan images Lowrance makes. Preloaded C-MAP DISCOVER OnBoard charts bring 1 foot contours on more than 19,000 U.S. lakes and 9,400 Canadian lakes.

Screen sizes are 9, 10, 12 and 16 inch. The 10, 12 and 16 add large programmable keys, and the 16 is the only model in the line running Full HD 1920 x 1080, which is the real reason to step up to it. The sonar platform, networking and ActiveTarget 2 support are identical across all four sizes, so a bigger screen buys you room for more panels, not a sharper picture.

• ✅ SolarMAX HD touchscreen, readable at extreme angles and through polarized lenses
• ✅ ActiveTarget 2 Live Sonar ready, and the only Lowrance line that runs two systems at once
• ✅ Active Imaging HD ready up to 1.2 MHz for CHIRP, SideScan and DownScan
• ✅ Preloaded C-MAP DISCOVER OnBoard, 19,000+ U.S. and 9,400+ Canadian lakes at 1 ft contours
• ✅ Touchscreen control of Ghost trolling motors, Power-Pole anchors and autopilot
• ✅ Radar, NMEA 2000, SiriusXM Weather and Audio, and multi-display networking
• ✅ FishReveal with SideScan view when paired with an S3100 module

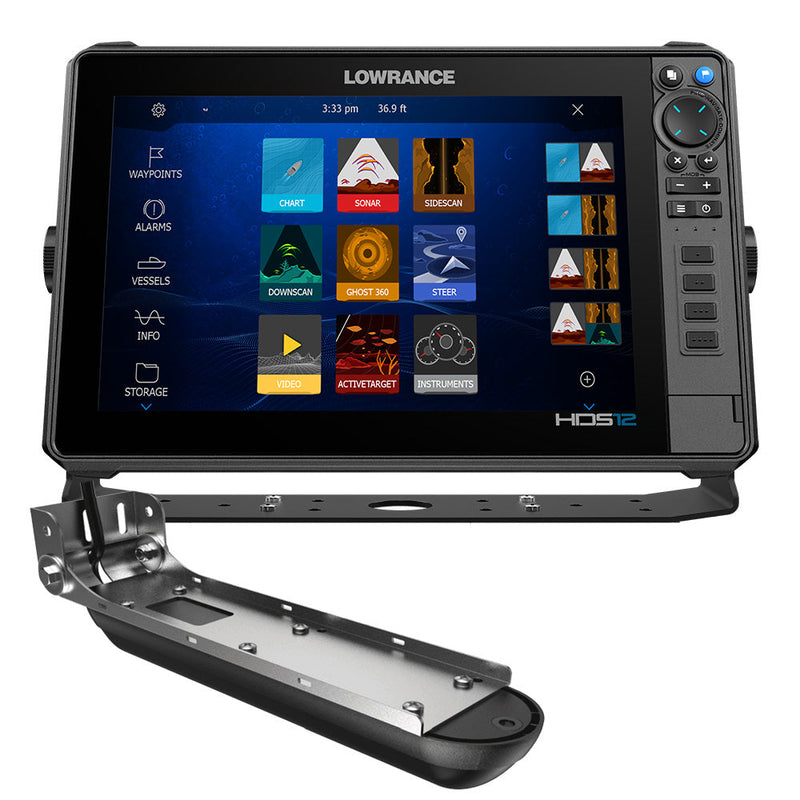

Units listed with a transducer ship with the Active Imaging HD 3-in-1. The 12 inch is also offered with the earlier Active Imaging 3-in-1 at a lower price. Options with no transducer are display only, for anglers running a thru-hull, an existing transducer, or a networked sonar module.

Built for tournament anglers and serious boat owners who want the deepest Lowrance feature set and a helm they can keep building on.

FAQ

Q: What is the difference between Active Imaging HD and Active Imaging 3-in-1?
A: Active Imaging HD runs up to 1.2 MHz for higher-definition SideScan and DownScan. The Active Imaging 3-in-1 is the earlier transducer, running 455/800 kHz. Both give you CHIRP, SideScan and DownScan; the HD version is sharper and holds detail at longer range.

Q: Is the 16 inch sharper than the 12?
A: Yes, and it is the only one that is. The 16 runs Full HD 1920 x 1080 while the 9, 10 and 12 share the same lower resolution. The sonar platform, networking and ActiveTarget 2 support are identical on all four. Buy the 16 for Full HD and room to run four panels; buy the 12 if two or three panels is your normal.

Q: How is HDS PRO different from Elite FS?
A: HDS PRO adds the SolarMAX HD screen, radar and autopilot support, SiriusXM, larger 12 and 16 inch sizes, and native Active Imaging HD. It is also the only Lowrance line that runs two ActiveTarget 2 systems at once. Elite FS covers ActiveTarget 2 and Active Imaging on a simpler platform for less money.

Q: Do I need the transducer option?
A: Only if you do not already have one. The no-transducer options are display only, so choose one of those if you are running a thru-hull, reusing a transducer, or feeding the display from a networked sonar module. For a fresh install, pick a package with the transducer included.

Q: Can I add live sonar later?
A: Yes. Every HDS PRO is ActiveTarget 2 ready out of the box. Add the ActiveTarget 2 system when you are ready, and on HDS PRO you can run a second system for Forward plus Back and Scout Wide views at the same time.

Need help picking a screen size or transducer? Carolina Sportsman Outfitters has been outfitting anglers since 2015, and we know the Lowrance part numbers. Call 252-431-6001 and we will confirm the transducer, the charts, and the network before you order.

Backed by the Lowrance manufacturer warranty and CSO's expert product support. Financing available at checkout, no credit needed.
