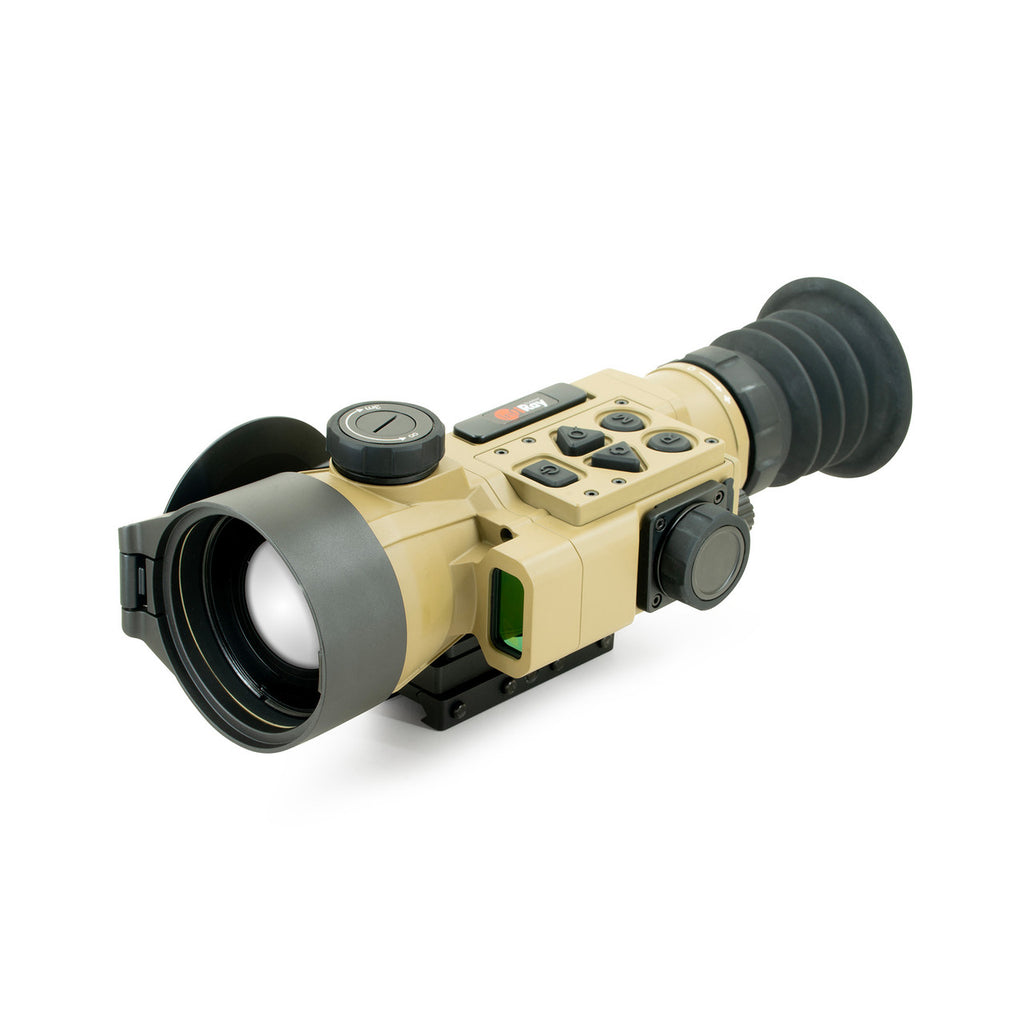

IRay Outdoor Hybrid Compact 3.5x 640x480 LRF 50mm
IRay Outdoor Hybrid Compact 3.5x 640x480 LRF 50mm
Roll over image to zoom in Click on image to zoom
IRay Outdoor Hybrid Compact 3.5x 640x480 LRF 50mmIRay Outdoor Hybrid Compact 3.5x 640x480 LRF 50mm

IRay Outdoor Hybrid Compact 3.5x 640x480 LRF 50mm

Price:
$6,499.00

Description

  • Optics

    Objective Focal Length

    50mm

    Detection Range

    3060 Yards

    Optical Magnification

    3.5X

    Display Type

    AMOLED

    Eye Relief

    60mm

    Digital Magnification

    8X

    Diopter Range

    -5 to +5

    Vertical Angular Field of View

    5.5°

    Horizontal Angular Field of View

    7.3°

    Focusing Mechanism

    Manual Focus

    Objective F#

    0.9

    Objective Diameter

    50mm

    Objective Lens Material

    Germanium

    Display Resolution

    1440×1080

  • Features & Performance

    Startup Time

    <10 Seconds, Instant from Standby

    Rangefinder

    Integrated 1200 yd LRF

    Color Palettes

    White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

    Picture-in-Picture

    Yes

    Storage Capacity

    64GB

    Connector Output

    Power/Data

    User-Updatable Firmware

    Yes

    Mobile App

    Yes

    One-Shot Zero

    Yes

    Stand-by Mode

    Yes

    Warranty

    5 Years

    Run Time

    7+

    Power Source

    USB-C External, 18650 Battery

    Reticle

    8 (7 Static, 1 DIY)

    Connector Type

    USB-C

    External Power Source

    USB-C

    Country of Manufacture

    China

    Wifi

    Yes

    Onboard Recording

    Yes

    Image Capture

    Yes

    Video Output

    Yes

  • Environmental Specifications

    Operating Temperature Range

    -4°F~122°F

    Recoil Rating

    1000 g/s² (300 Win./7mm Mag)

    Ingress Protection

    IP67

  • Physical

    Mounting Interface

    DLOC

    Housing Material

    Magnesium Alloy

    Weight

    25.56

    Height

    3.07

    Width

    4.05

    Length

    9.87

  • Sensor Specifications

    Non-Uniformity Correction (NUC)

    Manual, Automatic, Semi-Automatic

    Device Technology

    Thermal Imaging

    Sensor Resolution

    640×480

    Sensor Type

    InfiRay MICRO II

    Sensor Pixel Size

    10μm

    Thermal Sensitivity

    <15mk

    Sensor Frame Rate

    60hz/30hz

  • Optics

    Objective Focal Length

    50mm

    Detection Range

    3060 Yards

    Optical Magnification

    3.5X

    Display Type

    AMOLED

    Eye Relief

    60mm

    Digital Magnification

    8X

    Diopter Range

    -5 to +5

    Vertical Angular Field of View

    5.5°

    Horizontal Angular Field of View

    7.3°

    Focusing Mechanism

    Manual Focus

    Objective F#

    0.9

    Objective Diameter

    50mm

    Objective Lens Material

    Germanium

    Display Resolution

    1440×1080

  • Features & Performance

    Startup Time

    <10 Seconds, Instant from Standby

    Rangefinder

    Integrated 1200 yd LRF

    Color Palettes

    White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

    Picture-in-Picture

    Yes

    Storage Capacity

    64GB

    Connector Output

    Power/Data

    User-Updatable Firmware

    Yes

    Mobile App

    Yes

    One-Shot Zero

    Yes

    Stand-by Mode

    Yes

    Warranty

    5 Years

    Run Time

    7+

    Power Source

    USB-C External, 18650 Battery

    Reticle

    8 (7 Static, 1 DIY)

    Connector Type

    USB-C

    External Power Source

    USB-C

    Country of Manufacture

    China

    Wifi

    Yes

    Onboard Recording

    Yes

    Image Capture

    Yes

    Video Output

    Yes

  • Environmental Specifications

    Operating Temperature Range

    -4°F~122°F

    Recoil Rating

    1000 g/s² (300 Win./7mm Mag)

    Ingress Protection

    IP67

  • Physical

    Mounting Interface

    DLOC

    Housing Material

    Magnesium Alloy

    Weight

    25.56

    Height

    3.07

    Width

    4.05

    Length

    9.87
