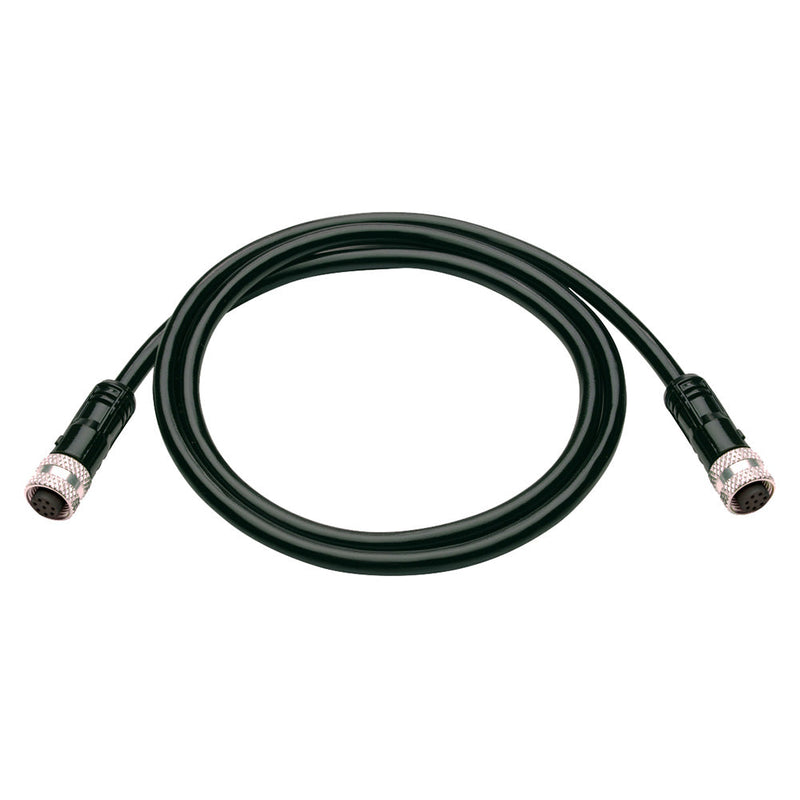

Humminbird Ethernet Cable for APEX, SOLIX, XPLORE and HELIX, 5 to 30 Feet
SKU:
Description
The Humminbird Ethernet Cable links your Humminbird fish finders so they share sonar, charts, waypoints and settings across the boat. It also connects a fish finder to a Humminbird Ethernet switch, MEGA Live, MEGA 360 Imaging and other Humminbird Ethernet accessories. Pick the length that reaches from one unit to the next: 5, 10, 15, 20 or 30 feet.
Which Humminbird fish finders does it fit?
- APEX, SOLIX, XPLORE and ONIX, all models: plug straight in, no adapter needed.
- HELIX 8, 9, 10, 12 and 15, plus HELIX 7 network models (G2N, G3N, G4N): each HELIX needs the Humminbird HELIX Ethernet adapter cable, model AS EC QDE (part 720074-1), sold separately.
- Older 1100, 900 and 800 series units with Ethernet, and 700 series HD units: also need the AS EC QDE adapter.
Know before you network: APEX, XPLORE and SOLIX G3 units running software 5.060 or newer network only with each other. They will not network with HELIX or older SOLIX units. Every unit on the network should run the same software version.
How to pick your length
Measure the route the cable will take, around the console and under the deck, then choose the next length up. Both ends have the same female Humminbird Ethernet connector. Need more reach later? The Humminbird 30 foot Ethernet extension cable (model AS ECX 30E) adds length to the cable you already have.
Lengths and Humminbird part numbers
- 5 feet: model AS EC 5E, part 720073-6
- 10 feet: model AS EC 10E, part 720073-2
- 15 feet: model AS EC 15E, part 720073-5
- 20 feet: model AS EC 20E, part 720073-3
- 30 feet: model AS EC 30E, part 720073-4
In the box
One Humminbird Ethernet cable in the length you choose, with a female connector on each end.
Common questions
Do I need a switch to connect two fish finders?
No. One Ethernet cable links two units directly. For three or more units, or units plus Ethernet accessories, run each one to a Humminbird Ethernet switch.
Can I connect two HELIX units together?
Yes. Use one Ethernet cable and one AS EC QDE adapter on each HELIX.
Does MEGA Live come with an Ethernet cable?
MEGA Live, MEGA Live 2 and TargetLock kits include a 20 foot Humminbird Ethernet cable. Buy this one when you need a longer run or a cable for a second unit.
