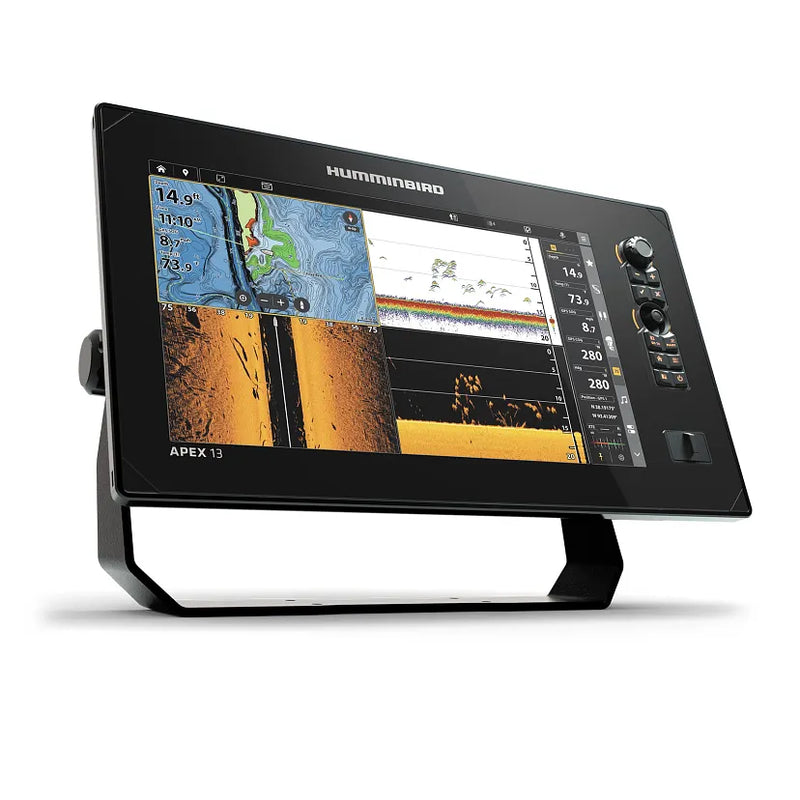

Humminbird APEX Fish Finder | Full-HD MEGA Imaging+ | 13", 16", 19"
SKU:
Description
🎣 The biggest, sharpest screens Humminbird builds. When you are running MEGA Live, Side Imaging, Down Imaging and a chart at the same time, this is the helm that makes all four readable.
APEX puts a Full-HD 1920 x 1080 panel behind the Cross Touch interface, driven by a dual-core processor so it stays quick whether you are working the touchscreen or the keypad. Resolution is the same 1920 x 1080 across all three sizes, so the 16 and 19 do not show finer sonar, they show the same picture with room to split it three and four ways without squinting.
MEGA Side Imaging+, MEGA Down Imaging+ and Dual Spectrum CHIRP come standard, reaching up to 250 feet below and to either side, with 2.5 inch target separation. Dual sonar ports mean you can add a dedicated 2D CHIRP transducer up to 2 kW, and integrated transducer ID makes Airmar installs simple. APEX now includes the LakeMaster and CoastMaster VX map card covering over 13,000 lakes and waterways.
- ✅ Full-HD 1920 x 1080 glass-bonded display in 13.3, 16 or 19 inch
- ✅ Cross Touch interface, touchscreen or keypad, driven by a dual-core processor
- ✅ MEGA Side Imaging+ and Down Imaging+ to 250 ft, 2.5 in target separation
- ✅ Dual sonar ports with a dedicated channel for 2D CHIRP transducers up to 2 kW
- ✅ LakeMaster and CoastMaster VX map card included, 13,000+ lakes and waterways
- ✅ HDMI in/out, dual Ethernet, Wi-Fi, Bluetooth, NMEA 2000 and AIS support
- ✅ MEGA Live 2 ready, with One-Boat Network control of Minn Kota and Cannon gear

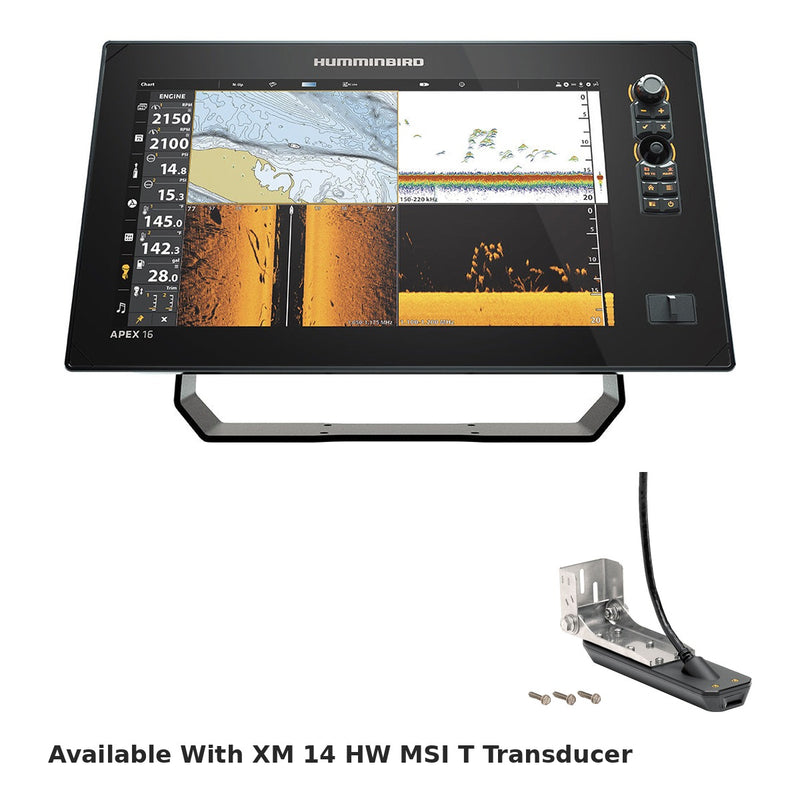

Units with the transducer included ship with the XM 14 HW MSI T transom-mount transducer. CHO models are control head only, meant for a thru-hull like the SSTH 14 HW MSI+, a Minn Kota with Built-in MEGA Imaging, or as a second display on an existing Humminbird network.
Built for tournament anglers and serious boat owners running a full networked helm who want the largest, sharpest displays Humminbird offers.
FAQ
Q: What does CHO mean?
A: Control Head Only. CHO models ship without a transducer. They are the right pick if you are adding a second display, running a thru-hull such as the SSTH 14 HW MSI+, or pulling Built-in MEGA Imaging off a compatible Minn Kota. If this is a fresh install, choose a model with the transducer included.
Q: Is the 19 inch sharper than the 13 inch?
A: No. All three run the same 1920 x 1080 resolution and the identical sonar suite. The larger panels give you more physical room for split screens, not more detail. Choose by helm space and how many panes you run at once.
Q: How is APEX different from XPLORE?
A: APEX has the higher 1920 x 1080 resolution, larger 13.3 to 19 inch sizes, HDMI in/out, dual Ethernet, and a dedicated 2 kW CHIRP sonar channel. XPLORE runs 1280 x 720 in 9 to 12.1 inch and costs less. Both share MEGA Imaging+ and One-Boat Network.
Q: What is the warranty?
A: APEX carries a 2 year limited manufacturer warranty. Register the unit with Humminbird to unlock product support, tutorials and model-specific FAQs.
Need help picking a screen size or transducer? Carolina Sportsman Outfitters has been outfitting anglers since 2015, and we know the Humminbird part numbers. Call 252-431-6001 and we will confirm the transducer, the mount, and the network before you order.
Backed by the Humminbird manufacturer warranty and CSO's expert product support. Financing available at checkout, no credit needed.
