Garmin GT36UHD-TM and GT15M-IH Transducer Bundle, Side Scan plus In-Hull CHIRP
SKU:
Description

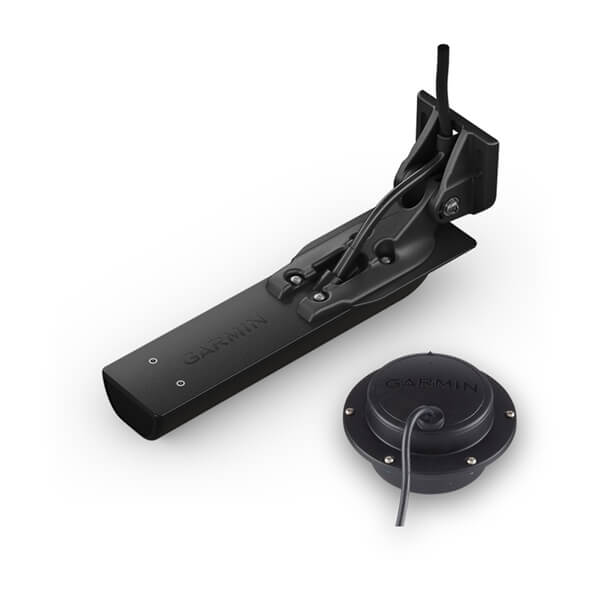

This Garmin bundle (part 010-02536-10) pairs the 12-pin GT36UHD-TM transom scanning transducer with the 8-pin GT15M-IH in-hull transducer and a Y-cable that runs both into one 12-pin sonar port. You get Ultra High-Definition ClearVu and SideVu on the transom plus 600 W mid-band CHIRP 2D sonar shooting through a solid fiberglass hull, so depth and fish arches keep reading at running speed.
What It Shows You
- SideVu side imaging at 455, 800 or 1,000 kHz, up to 500 feet.
- ClearVu down imaging up to 400 feet.
- 600 W mid-band CHIRP 2D sonar from the in-hull GT15M-IH for depth, bottom and fish arches.
Will It Fit My Garmin?
This transducer has Garmin's 12-pin plug, so it plugs straight into Garmin units with a 12-pin sonar port that support SideVu, such as ECHOMAP UHD2 sv, ECHOMAP Ultra 2 and GPSMAP xsv chartplotters. The Ultra High-Definition frequencies need a unit that supports UHD scanning. The included Y-cable joins the 12-pin and 8-pin transducers into one 12-pin port. Call us with your exact model and we will confirm it before you buy.
Which One Do I Need?
Pick this bundle for a solid fiberglass boat with 0 to 25 degrees of deadrise at the in-hull spot. For flat, shallow water hulls the GT8HW-IH bundle costs less. In-hull transducers do not work through aluminum, wood or cored hulls; on those boats pick the all-in-one GT56UHD-TM instead.
Specs
- ClearVu and SideVu: 455 kHz (425 to 485), 800 kHz (790 to 850) and 1,000 kHz (940 to 1,100), 500 W
- Beams: 1.1 by 52 degrees at 455 kHz, 0.64 by 35 degrees at 800 kHz, 0.52 by 52 degrees at 1,000 kHz
- Max range (Garmin rating): ClearVu 400 ft, SideVu 500 ft
- Traditional 2D sonar: none
- In-hull transducer: GT15M-IH, 600 W mid-band CHIRP, 8-pin, 20 ft cable, 0 to 25 degrees deadrise
- GT36UHD-TM cable: 25 ft, 12-pin
- Y-cable: 12-pin and 8-pin transducers to 12-pin sounder
In the Box
- GT36UHD-TM transducer with 25 ft cable, transom mount, trolling motor mount and hardware
- GT15M-IH transducer with 20 ft cable
- 4 plastic in-hull tanks
- Y-cable (12-pin and 8-pin transducer to 12-pin sounder)
- Documentation
Pros and Cons
- Pro: UHD scanning plus CHIRP 2D from one 12-pin port
- Pro: In-hull 2D reads at running speed
- Pro: Y-cable included
- Con: In-hull part needs a solid fiberglass hull
- Con: 1,000 kHz needs a UHD capable unit
Frequently Asked Questions
Why a bundle instead of a GT56UHD-TM?
The in-hull transducer keeps 2D depth and fish arches reading at speed with no hole in the hull, while the GT36 handles scanning on the transom.
Will the in-hull work in my aluminum boat?
No. In-hull transducers shoot through solid fiberglass only.
Is the Y-cable included?
Yes. It joins both transducers into one 12-pin sonar port.
Why Buy From Carolina Sportsman Outfitters
Carolina Sportsman Outfitters is an authorized Garmin dealer, so you get a genuine GT36UHD-TM and GT15M-IH bundle backed by Garmin's warranty plus our expert product support. Ask about 0% financing for up to 24 months for those who qualify, plus no credit needed options.
Visit our store at 7630 NC Hwy 39 N, Henderson, NC, or call 252-431-6001 and we will help you match the right transducer to your unit. See our return policy.
