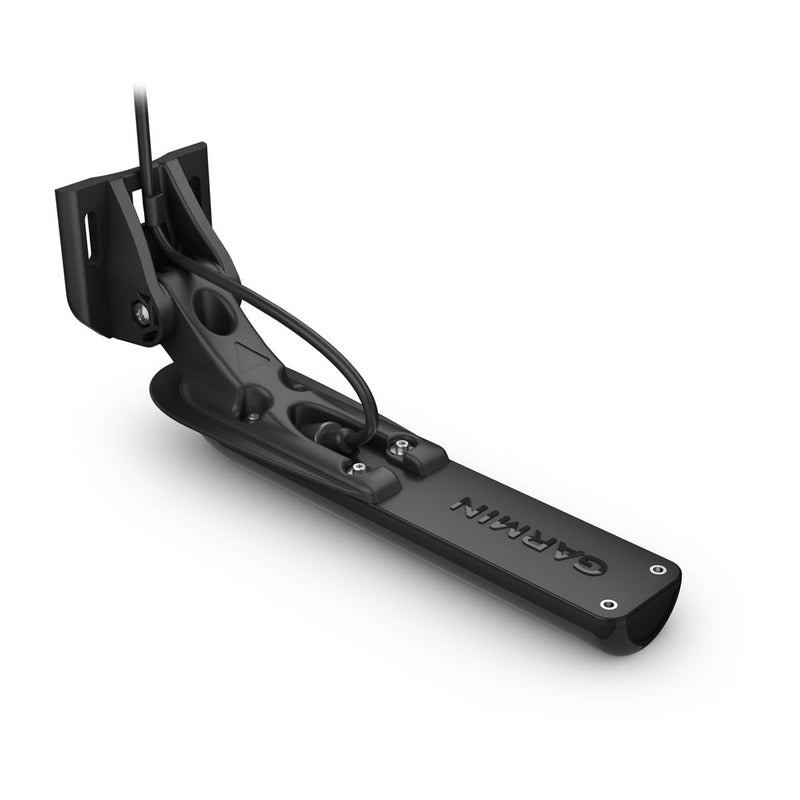

Garmin GT30-TM 12-Pin Transom Transducer, ClearVu and SideVu Scanning Sonar
SKU:
Description
The Garmin GT30-TM (part 010-01961-00) is a 12-pin transom mount scanning transducer with ClearVu down imaging and SideVu side imaging at 455 and 800 kHz. It adds picture-like views of brush, docks, rock and fish under and beside the boat, for anglers who already have traditional 2D sonar or plan to add it from a second transducer.
What It Shows You
- SideVu side imaging at 455 and 800 kHz to scan structure off both sides of the boat, up to 500 feet.
- ClearVu down imaging at 455 and 800 kHz for a photo-like view under the boat.
- Water temperature from the built-in sensor.
Will It Fit My Garmin?
This transducer has Garmin's 12-pin plug, so it plugs straight into Garmin units with a 12-pin sonar port that support SideVu, such as ECHOMAP UHD2 sv, ECHOMAP Ultra 2 and GPSMAP xsv chartplotters. It also works with Garmin's GCV 20 scanning sonar black box. Call us with your exact model and we will confirm it before you buy.
Which One Do I Need?
Pick the GT30-TM when you want ClearVu and SideVu and already run a traditional transducer. If you want everything in one transducer, the GT52HW-TM adds high-wide CHIRP 2D, and the GT56UHD-TM adds CHIRP plus Ultra High-Definition scanning. For thru-hull boats the GT30-TH and GT30-THP carry the same scanning sonar.
Specs
- ClearVu and SideVu: CHIRP 455 kHz (425 to 485) and 800 kHz (790 to 850), 500 W
- ClearVu beams: 1.4 by 53 degrees at 455 kHz, 0.8 by 30 degrees at 800 kHz
- SideVu beams: 1.1 by 53 degrees at 455 kHz, 0.7 by 30 degrees at 800 kHz
- Max range (Garmin rating): ClearVu 750 ft, SideVu 500 ft
- Traditional 2D sonar: none
- Sensors: depth and water temperature
- Connector: 12-pin
- Cable: 20 ft
- Mounting: transom, 0 to 70 degree transom angle
In the Box
- GT30-TM transducer with 20 ft cable
- Garmin does not publish the full box list for this part; call us at 252-431-6001 to confirm what ships with it
Pros and Cons
- Pro: ClearVu and SideVu at 455 and 800 kHz
- Pro: SideVu out to 500 feet
- Pro: Adds scanning to a boat that has 2D already
- Con: No traditional 2D sonar
- Con: No Ultra High-Definition frequencies
Frequently Asked Questions
Does the GT30 show regular 2D sonar?
No. The GT30 is a scanning transducer with ClearVu and SideVu only. Pair it with a traditional transducer, or pick an all-in-one like the GT52HW or GT56UHD.
Is the GT30-TM 4-pin or 12-pin?
It is 12-pin. Some old listings call it 4-pin; Garmin lists the GT30 family as 12-pin.
GT30 vs GT56UHD?
The GT56UHD-TM adds high-wide CHIRP 2D sonar and Ultra High-Definition 1,000 kHz scanning. The GT30 is scanning only at 455 and 800 kHz.
