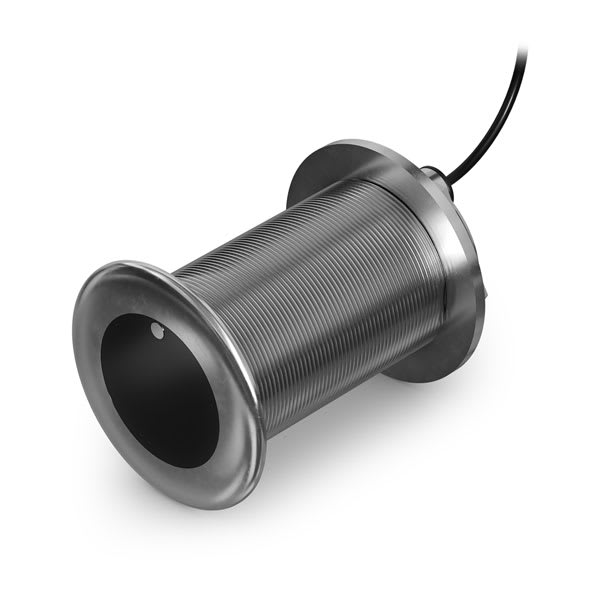

Garmin GT15M-THF Stainless Thru-Hull Transducer, 600 Watt CHIRP, 12 Degree Tilt
SKU:
Description
The Garmin GT15M-THF 12 degree (part 010-02868-01) is a flush mount thru-hull transducer in a stainless steel housing with 600 W mid-band CHIRP traditional sonar. It is the middle step in Garmin's flush mount CHIRP line, with 600 W of power. The 12 degree internal tilt points the beam straight down on hulls with 8 to 15 degrees of deadrise at the mounting spot, and the flush face sits almost even with the hull for clean readings at speed with no fairing block.
What It Shows You
- Mid-band CHIRP 2D sonar sweeping 85 to 165 kHz for clear fish arches, bait and bottom.
- Bottom tracking to 1,200 feet in salt water and 1,900 feet in fresh (Garmin rating).
- Water temperature, and support for Garmin RapidReturn sonar on units that offer it.
Will It Fit My Garmin and My Hull?
Every GT12M, GT15M and GT17M-THF uses Garmin's 8-pin plug, so it connects straight to Garmin units with an 8-pin sonar port. ECHOMAP UHD2 sv, ECHOMAP Ultra 2 and GPSMAP xsv units with a 12-pin port use the 8-pin transducer to 12-pin sounder adapter with XID (010-12122-10), sold separately. Your unit must also support mid-band CHIRP. Call us with your model and we will confirm it. For the hull, measure the deadrise right where the transducer will go, not the transom number on the spec sheet. This 12 degree version is for 8 to 15 degrees.
Which One Do I Need?
Pick the GT15M-THF for nearshore and offshore fishing to about 1,200 feet when you want strong CHIRP fish arches and bottom tracking. Pick the GT17M-THF for 1,000 W, a tighter 9 to 18 degree beam and 1,800 feet. Pick the GT12M-THF to save money in shallower water. Stainless steel housings come with thread and hull isolators in the box.
Specs
- Traditional sonar: mid-band CHIRP 85 to 165 kHz, 600 W, 24 to 16 degree beam
- Max depth (Garmin rating): 1,200 ft saltwater, 1,900 ft freshwater
- RapidReturn sonar compatible
- Sensors: depth and water temperature
- Cable: 50 ft
- Connector: 8-pin
- Housing: stainless steel, flush thru-hull
- Tilt: 12 degree, for 8 to 15 degrees of deadrise
- Tilt versions (Garmin product page): 0 degree for 0 to 7 degree deadrise, 12 degree for 8 to 15, 20 degree for 16 to 24
In the Box
- GT15M-THF transducer with 50 ft cable
- Jam nut
- Washer
- Thread isolator
- Hull isolator
- Documentation
Pros and Cons
- Pro: 600 W mid-band CHIRP
- Pro: Flush mount reads clean at speed, no fairing block
- Pro: 50 ft cable reaches most helms
- Con: No ClearVu or SideVu imaging
- Con: Thru-hull install needs a marine shop
- Con: Pick the tilt that matches your hull
Frequently Asked Questions
Which tilt do I need?
Measure deadrise where the transducer mounts. Garmin's product page lists 0 degree for 0 to 7, 12 degree for 8 to 15 and 20 degree for 16 to 24. This is the 12 degree version. Call us if your measurement falls near a line.
Is the GT15M-THF 8-pin or 12-pin?
It is 8-pin. 12-pin units use the 8-pin to 12-pin adapter with XID, sold separately.
GT12M vs GT15M vs GT17M?
GT12M: 350 W bronze, 800 feet salt. GT15M: 600 W stainless, 1,200 feet salt. GT17M: 1 kW stainless with a narrower beam, 1,800 feet salt.
