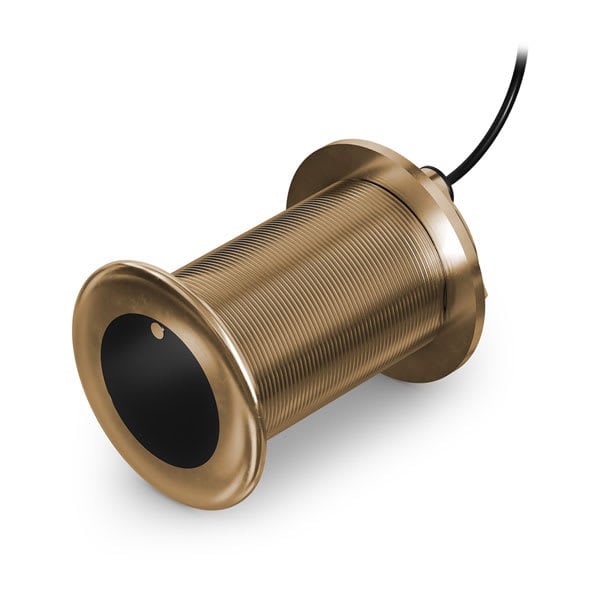

Garmin GT12M-THF Bronze Thru-Hull Transducer, 350 Watt CHIRP, 0 Degree Tilt
SKU:
Description
The Garmin GT12M-THF 0 degree (part 010-02867-00) is a flush mount thru-hull transducer in a bronze housing with 350 W mid-band CHIRP traditional sonar. It is the entry flush mount in Garmin's mid-band CHIRP thru-hull line. The 0 degree internal tilt points the beam straight down on hulls with 0 to 7 degrees of deadrise at the mounting spot, and the flush face sits almost even with the hull for clean readings at speed with no fairing block.
What It Shows You
- Mid-band CHIRP 2D sonar sweeping 85 to 165 kHz for clear fish arches, bait and bottom.
- Bottom tracking to 800 feet in salt water and 1,200 feet in fresh (Garmin rating).
- Water temperature, and support for Garmin RapidReturn sonar on units that offer it.
Will It Fit My Garmin and My Hull?
Every GT12M, GT15M and GT17M-THF uses Garmin's 8-pin plug, so it connects straight to Garmin units with an 8-pin sonar port. ECHOMAP UHD2 sv, ECHOMAP Ultra 2 and GPSMAP xsv units with a 12-pin port use the 8-pin transducer to 12-pin sounder adapter with XID (010-12122-10), sold separately. Your unit must also support mid-band CHIRP. Call us with your model and we will confirm it. For the hull, measure the deadrise right where the transducer will go, not the transom number on the spec sheet. This 0 degree version is for 0 to 7 degrees.
Which One Do I Need?
Pick the GT12M-THF for bays, sounds and nearshore water when you want flush mount CHIRP at a lower cost. Step up to the GT15M-THF for 600 W and 1,200 feet in salt water, or the GT17M-THF for 1,000 W and 1,800 feet offshore. All three use the same 50 foot cable and 8-pin plug, so they swap into the same wiring.
Specs
- Traditional sonar: mid-band CHIRP 85 to 165 kHz, 350 W, 24 to 16 degree beam
- Max depth (Garmin rating): 800 ft saltwater, 1,200 ft freshwater
- RapidReturn sonar compatible
- Sensors: depth and water temperature
- Cable: 50 ft
- Connector: 8-pin
- Housing: bronze, flush thru-hull
- Tilt: 0 degree, for 0 to 7 degrees of deadrise
- Tilt versions (Garmin product page): 0 degree for 0 to 7 degree deadrise, 12 degree for 8 to 15, 20 degree for 16 to 24
In the Box
- GT12M-THF transducer with 50 ft cable
- Jam nut
- Washer
- Documentation
Pros and Cons
- Pro: 350 W mid-band CHIRP
- Pro: Flush mount reads clean at speed, no fairing block
- Pro: 50 ft cable reaches most helms
- Con: No ClearVu or SideVu imaging
- Con: Thru-hull install needs a marine shop
- Con: Pick the tilt that matches your hull
Frequently Asked Questions
Which tilt do I need?
Measure deadrise where the transducer mounts. Garmin's product page lists 0 degree for 0 to 7, 12 degree for 8 to 15 and 20 degree for 16 to 24. This is the 0 degree version. Call us if your measurement falls near a line.
Is the GT12M-THF 8-pin or 12-pin?
It is 8-pin. 12-pin units use the 8-pin to 12-pin adapter with XID, sold separately.
GT12M vs GT15M vs GT17M?
GT12M: 350 W bronze, 800 feet salt. GT15M: 600 W stainless, 1,200 feet salt. GT17M: 1 kW stainless with a narrower beam, 1,800 feet salt.
