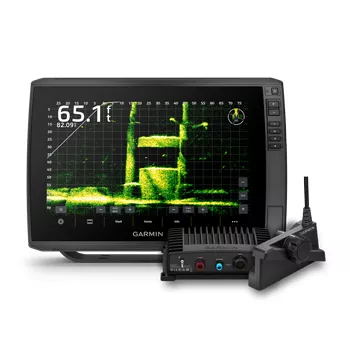

Garmin ECHOMAP Ultra 2 126sv LiveScope Plus Bundle | 12" Chartplotter + LVS34

🎣 Twelve inches is the size where you stop choosing between the chart and the live sonar and just run both, full size, at the same time. This is that screen with a complete LiveScope Plus system already in the box.

The Garmin ECHOMAP Ultra 2 126sv is the 12 inch flagship of the ECHOMAP line, and this bundle pairs it with the GLS 10 black box and the LVS34 LiveScope Plus transducer, with every mount and cable needed to rig it. The 1280 x 800 sunlight-readable touchscreen with keyed assist has room for three or four panes at once, chart, traditional sonar, ClearVü, and LiveScope, without squinting at any of them. LiveScope Plus shows fish, structure, and your lure in real time out to 200 feet in Forward, Down, or Perspective mode, with roughly 35 percent better resolution than the original LVS32.

Preloaded Garmin Navionics+ U.S. Inland and Coastal charts include a 1 year subscription for daily updates. Multi-band 10 Hz GPS holds position under bridges and bluffs, Quickdraw Contours records your own 1 foot maps, and Wi-Fi with ActiveCaptain handles updates and screen recording. NMEA 2000 and Garmin Marine Network let you add radar, sensors, and a second display later.

• ✅ Complete live sonar package: GLS 10 black box, LVS34 transducer, and all mounts and cables included
• ✅ 12 inch 1280 x 800 sunlight-readable IPS touchscreen, the largest split screens ECHOMAP offers
• ✅ See fish, structure, and your lure in real time out to 200 ft in Forward, Down, or Perspective mode
• ✅ Preloaded Garmin Navionics+ U.S. Inland and Coastal with a 1 year daily update subscription
• ✅ Multi-band 10 Hz GPS and Quickdraw Contours 1 ft mapping
• ✅ Wi-Fi, ActiveCaptain, NMEA 2000, and Garmin Marine Network for a full connected helm
• ✅ LiveScope 2 ready: the Ultra 2 runs LVS44 or LVS42HD later with no black box

In the box: the 126sv head unit with bail mount and quick release cradle, sun cover, cables, the GLS 10 black box, and the LVS34 with perspective, barrel, and shaft mounts. This bundle does not include a CHIRP, ClearVü, or SideVü transducer. Add a GT56UHD-TM if you want traditional and scanning sonar on the same unit.

Built for tournament bass and crappie anglers running a full deck of electronics who want the biggest ECHOMAP screen and a live sonar system that is ready to fish on day one.

FAQ

Q: Does this bundle include a CHIRP, ClearVü, or SideVü transducer?
A: No. The 126sv in this bundle ships without a traditional sonar transducer. The LVS34 is a live sonar transducer only. Add a Garmin GT56UHD-TM or GT54UHD-TM transom transducer for CHIRP, ClearVü, and SideVü.

Q: What is the difference between 010-02882-10 and 010-02882-00?
A: The -10 is this LiveScope Plus bundle, the 126sv head unit plus the GLS 10 and LVS34. The -00 is the 126sv chartplotter on its own, with no LiveScope hardware and no transducer.

Q: Should I get the 126sv bundle or the 106sv bundle?
A: The hardware and the LiveScope Plus system are identical. The only difference is the display, 12 inch versus 10 inch, both at 1280 x 800. Choose the 126sv if you plan to run three or more panes at once or you already run a second graph. Choose the 106sv if console space is tight.

Q: The Ultra 2 supports LiveScope 2 with no black box. Why does this bundle have a GLS 10?
A: Because this is the LiveScope Plus system, which is the LVS34 transducer plus the GLS 10 black box. LiveScope 2 (LVS44 or LVS42HD) has the processing built into the transducer and needs no black box, but it is a different, newer transducer sold separately. Your Ultra 2 will run either one.

Q: How far will the LVS34 see?
A: Up to 200 ft forward and down, with a 20 by 135 degree beam running 530 to 1,100 kHz at 500 W.

Need help with fit or compatibility? Carolina Sportsman Outfitters has been outfitting anglers since 2015, and we know the Garmin part numbers. Call 252-431-6001 and we will confirm the install and the connections before you order.

Backed by Garmin's 2 year marine limited warranty and CSO's expert product support. Financing available at checkout, no credit needed.
