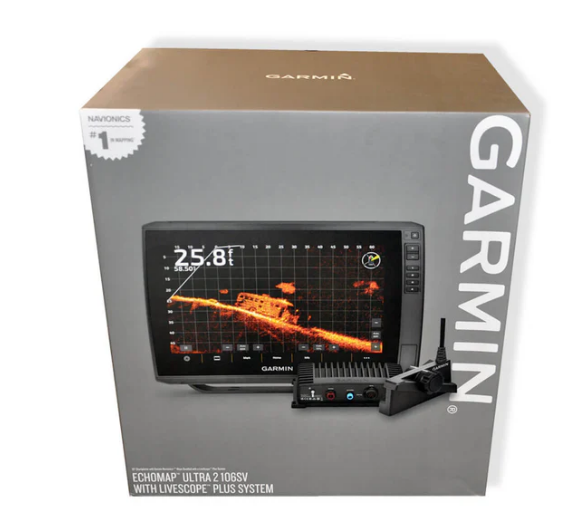

Garmin ECHOMAP Ultra 2 106Sv + Livescope Plus Bundle | 10" Chartplotter + LVS34 Livescope Plus

🐟 Premium 10" ECHOMAP Ultra 2 + LiveScope Plus complete bundle. Open-water ready, head unit, black box, and current-generation LVS34 transducer all included.

Garmin 106sv System

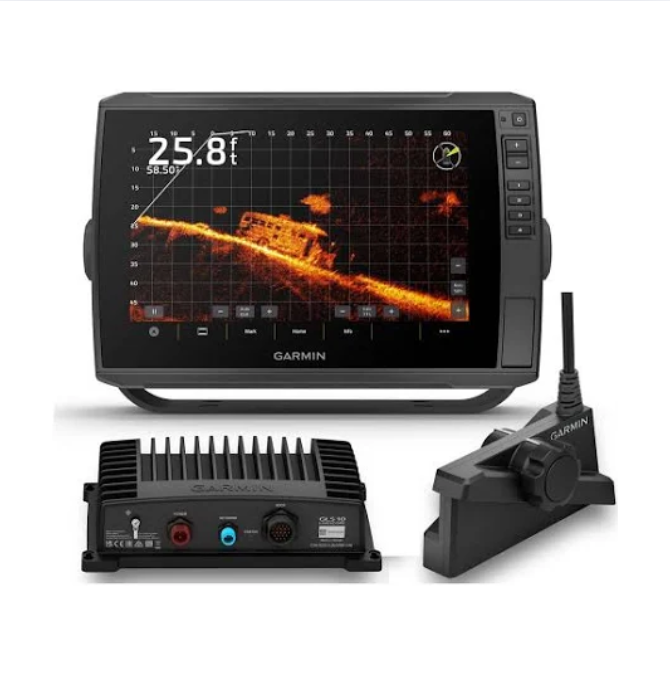

This is the complete LiveScope Plus package for bass boats, center consoles, and offshore rigs, the Ultra 2 premium 10" chartplotter, the GLS 10 black box, and the current-generation LVS34 forward-looking live sonar transducer. Everything needed to add real-time forward-looking sonar to a boat, in a single SKU.

The ECHOMAP Ultra 2 106sv is the premium 10" chartplotter tier, brighter IPS display, full Garmin Marine Network, Panoptix direct connection. This bundle adds the LVS34 open-water LiveScope Plus transducer and GLS 10 black box, giving you a complete turnkey live sonar setup. Buyers typically mount the LVS34 to a trolling motor shaft or a dedicated pole, run the GLS 10 to a mounting location, and network the 106sv as the primary sonar display.

The 106sv head unit runs on the full Garmin Marine Network (Ethernet), not the limited network support of UHD2 mainstream tier. That means this bundle networks seamlessly with Garmin radar (GMR Fantom/xHD), cameras (GC series), autopilot (Reactor series), and multi-display rigs. For anglers running serious tournament boats or offshore rigs, this networking capability alone can justify the Ultra 2 tier over UHD2.

Key Features

• ✅ 10" Ultra-Bright IPS Display, premium tier brightness, edge-to-edge glass
• ✅ LVS34 LiveScope Plus Transducer Included, current-generation forward-looking live sonar
• ✅ GLS 10 Black Box Included, processes LiveScope data
• ✅ CHIRP + ClearVü + SideVü Capable, when paired with a summer transducer (sold separately)
• ✅ Built-In GPS + U.S. Inland + Coastal Maps (keyed), premium tier cartography pre-loaded
• ✅ Full Garmin Marine Network (Ethernet), radar, cameras, autopilot, multi-display
• ✅ Panoptix PS22/PS31 Direct Connection, no additional black box for Panoptix
• ✅ NMEA 2000 Networking, engines, trolling motors, sensors
• ✅ Wi-Fi + ActiveCaptain App, software updates, waypoint sharing
• ✅ Quickdraw Contours, create 1-foot contour maps as you fish
• ✅ Dual microSD Card Slots, add Navionics Vision+, LakeMaster VX, CoastMaster

Who This System Is For

This bundle is best for serious tournament bass anglers, offshore captains, and multi-species anglers who want premium forward-looking live sonar on a proven 10" chartplotter platform.

Choose This If...

• You want a complete turnkey LiveScope Plus setup, head unit, black box, transducer, all in one SKU.
• You're buying into the premium Ultra 2 tier, brighter display, full Marine Network, Panoptix direct connection. Step up from UHD2 mainstream.
• 10" is the right size for your console, measure first. 10" fits most premium bass boat and center console consoles.
• You're willing to invest in professional installation, LiveScope Plus transducer placement and networking are not DIY-friendly for most anglers.
• You need U.S. Inland + Coastal mapping pre-loaded, the Ultra 2 keyed cartography is a premium feature you won't find on UHD2 mainstream tier.
• Your budget supports $2999 for a complete turnkey setup, not just the transducer, the full rig.

Specifications

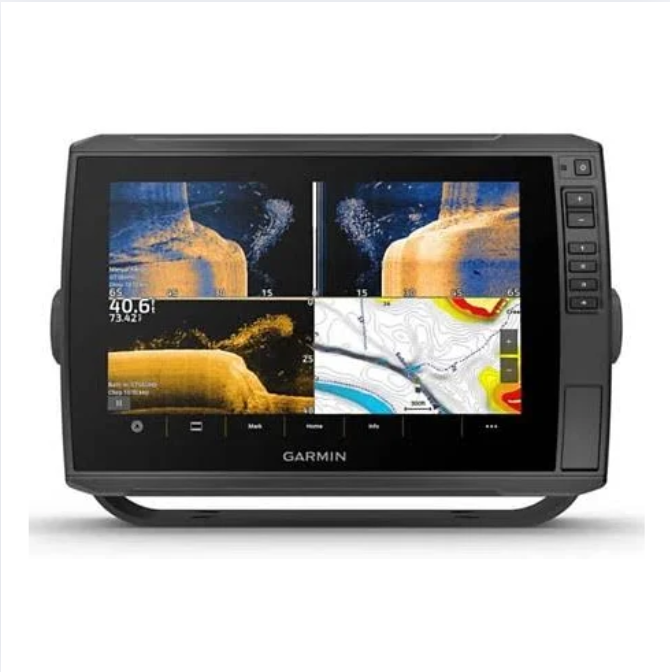

• Display: 10" Ultra-Bright IPS touchscreen, edge-to-edge glass
• Head Unit Chartplotter: ECHOMAP Ultra 2 106sv 10" Chartplotter (No Transducer)
• LiveScope Transducer: LVS34 LiveScope Plus (current generation, open-water)
• LiveScope Processor: GLS 10 black box
• Power: 12V DC
• Summer sonar transducer: NOT included, purchase GT56UHD-TM separately for CHIRP + ClearVü + SideVü
• Waterproof rating: IPX7 (head unit)
• SKU: 010-02880-10

What's Included

• Garmin ECHOMAP Ultra 2 106sv 10" Chartplotter head unit
• LVS34 LiveScope Plus transducer (current generation, open-water)
• GLS 10 black box (processor for LiveScope)
• Tilt/swivel gimbal mount for head unit
• Protective sun cover
• All power and data cables
• NMEA 2000 cables
• Quick-start guides
• U.S. Inland + Coastal mapping pre-loaded on head unit (keyed)

Compatibility Reference

This LiveScope Plus system works with:

• Head Units: ECHOMAP UHD2 7"/9" (73sv/74sv/75sv/93sv/94sv/95sv), ECHOMAP Ultra 2 all sizes (102sv/106sv/122sv/126sv/162sv/166sv), GPSMAP series
• Not compatible: ECHOMAP UHD2 5"/6" units (52cv/53cv/54cv/55cv/63sv/64sv/65sv, display tier limitation)
• Trolling Motors: Garmin Force, Force Pro, Force Kraken (for transducer mounting)
• Networking: NMEA 2000, Garmin Marine Network, Wi-Fi
• Cartography: All Garmin-compatible cartography (Navionics+, LakeMaster VX, CoastMaster Premium, C-MAP Genesis Edge)

Warranty

Covered by Garmin's 1-year limited warranty. Carolina Sportsman Outfitters provides post-purchase setup guidance by phone, call us for LiveScope installation advice, transducer mounting recommendations, or compatibility questions. Call 252-431-6001.

Frequently Asked Questions

Do I need to buy a summer sonar transducer separately?

Yes. The LVS34 transducer included with this bundle is a LiveScope Plus transducer, it provides forward-looking live sonar only. For CHIRP traditional sonar, ClearVü down imaging, and SideVü side imaging, you need a separate summer transducer like the GT56UHD-TM (approximately $500). Most buyers add the GT56UHD-TM for general fishing and use the LVS34 for LiveScope-specific applications.

Can I use the LVS34 on ice?

No, the LVS34 included with this bundle is the open-water version. For ice fishing LiveScope Plus, you need the LVS34-IF (ice-specific) transducer. See our 93sv + LiveScope Plus Ice Bundle ($3,300) or the standalone LiveScope Plus Ice System ($1,800).

How is LVS34 different from the older LVS32?

The LVS34 is the current-generation LiveScope Plus transducer, sharper target separation, cleaner imaging, and slightly longer practical range than the older LVS32. For most anglers, the difference is meaningful but not life-changing. If you already own an LVS32-based rig, upgrading to LVS34 is worth it if you fish competitively or you're consistently working the edge of LVS32's range.

Does this work with my trolling motor?

Yes. The LVS34 can be mounted to a Garmin Force, Force Pro, or Force Kraken trolling motor shaft (Garmin-specific mount required) or to a dedicated LiveScope pole. Most tournament anglers use the trolling motor mount for hands-free steering of the LiveScope beam. For non-Garmin trolling motors, use a dedicated LiveScope pole.

Can I upgrade to LiveScope XR later?

Yes. The GLS 10 black box included with this bundle works with LiveScope Plus (LVS34), LiveScope XR (LVS36, sold separately for approximately $1,500), and LiveScope Original (LVS32). Future-proof in that sense.

What's included in the box?

Head unit, LVS34 transducer, GLS 10 black box, gimbal mount, power and data cables, NMEA 2000 cables, sun cover, quick-start guide, and U.S. Inland + Coastal mapping pre-loaded.

Is this used in tournaments?

Yes, commonly. LiveScope Plus is the current tournament-standard forward-looking live sonar for bass tournaments (B.A.S.S. Elite, MLF Pro Tour, FLW Tour) where live sonar is permitted. Tournament rules around LiveScope use vary by circuit, check your specific circuit's regulations before tournament day.
