Description
See the world below.
ULTRA HIGH-DEFINITION SCANNING SONAR
Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 923xsv also supports 1 kW CHIRP traditional sonar capabilities.
PANOPTIX™ SONAR SUPPORT
Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.
Navigate with ease.
FASTER, SHARPER, SMARTER
With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this 9” plotter in a wider range of dash configurations.
IMPROVED DISPLAY OPTICS
New higher-resolution 9” IPS displays offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9” GPSMAP devices.
OPTIONAL BLUECHART® G3 VISION® CHARTS
These optional charts offer the best of Garmin and Navionics® data, Auto Guidance3 technology and other premium navigation features.
OPTIONAL RADAR BUNDLE

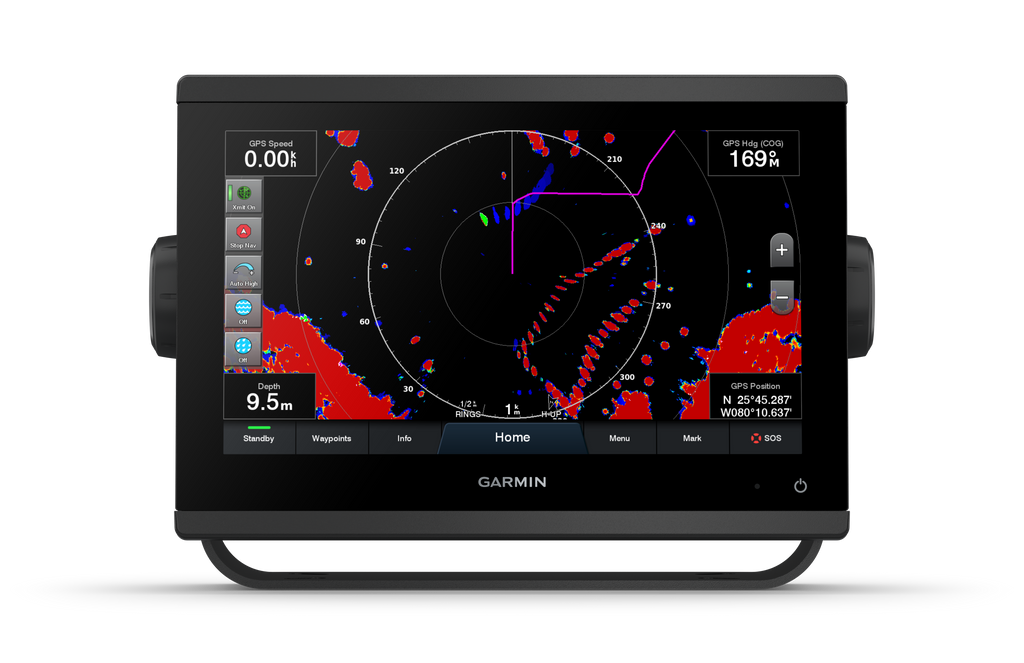

To help you avoid weather and traffic on the water, the compact 4 kW GMR™ 18 HD+ dome radar is available as a bundled option with your GPSMAP chartplotter/sonar package.
Connect to everything on your boat.
GARMIN MARINE NETWORK
If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.
NMEA 2000® AND NMEA 0183 NETWORKS
Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.
ACTIVECAPTAIN® APP
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more4.
INTEGRATED ANT® TECHNOLOGY
Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.
J1939 CONNECTIVITY
Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.
ONEHELM FEATURE
This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.
In the box:
-
GPSMAP 923xsv chartplotter
-
microSD™ card preinstalled
-
Power cable
-
NMEA 2000® T-connector
-
NMEA 2000 drop cable (2 meters)
-
8-pin transducer to 12-pin sounder adapter cable
-
Bail mount kit with knobs
-
Flush mount kit with gasket
-
Protective cover
-
Trim piece snap covers
-
Documentation
With 18 HD+ Radar
Above contents plus:
-
GMR 18 HD+ radome
-
Mounting hardware kit
-
Power cable (15 m)
-
Network cable (15 m)
-
Installation instructions
-
Mounting template
Physical & Performance
| Display size |
7.8" x 4.4"; 9.0" diagonal (19.9 x 11.2 cm; 22.9 cm diagonal) |
| Display resolution | 1280 x 720 pixels |
| Physical dimensions | 9.2" x 6.4" x 3" (23.3 x 16.2 x 7.6 cm) |
| Receiver | 10 Hz high-sensitivity |
| Water rating | IPX7 |
| Weight |
3.6 lbs (1.6 kg) |
| Mounting options | Bail , flush or flat |
| Display type | WXGA IPS display |
| Antenna | Internal or external over NMEA 2000 |
Maps & Navigation
| Preloaded maps |
worldwide basemap |
| Accepts data cards |
2 microSD™ cards (back of unit) |
| Routes | 100 |
| Track log | 50,000 points; 50 saved tracks |
Features
| ClearVü | Yes with CHIRP (built-in) |
| Waypoints | 5,000 |
| Transmit power | 1 kW traditional; 1 kW CHIRP |
| NMEA 0183 compatible | Yes |
| Dual-beam (77/200 kHz) sonar capable | Yes |
| Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
| Additional |
|
| NMEA 2000® compatible | Yes |
| ActiveCaptain compatible | Yes |
| Sonar recording | Yes |
| Garmin Marine Network™ ports |
1 |
| Garmin Sonar compatible |
Yes (built-in) |
| GSD™ Black Box sonar support | Yes |
| Sonar history rewind | Yes |
| Garmin SmartMode compatible (customizable monitor presets) | Yes |
| Maximum depth | 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) |
| Dual-frequency (50/200 kHz) sonar capable | Yes |
| SiriusXM™ Weather & Radio compatible | Yes |
| Wireless connectivity | Yes |
| Water temperature log and graph | Yes |
| GCV™ Black Box sonar support | Yes |
| Wireless mouse compatible | No |
| NMEA 0183 input ports |
1 (Differential) |
| J1939 Compatible | Yes |
| Supports AIS (tracks target ships position) | Yes |
| Polarized support | Yes |
| Frequencies supported |
ClearVü/SideVü (260/455/800/1000/1200 kHz) |
| Wireless remote compatible | Yes |
| Supports FUSION-Link™ compatible radios | Yes |
| Transducer pin numbers | 12-pin (orange) |
| Bottom lock (shows return from the bottom up) | Yes |
| NMEA 0183 output ports |
1 (Differential) |
| Tide tables | Yes |
| Power consumption |
Max power usage at 10 Vdc: 22 W Typical current draw at 12 Vdc: 1.3 A Max current draw at 12 Vdc: 1.8 A |
| Garmin Radar compatible | Yes |
