Garmin LiveScope System with GLS 10 and LVS32 Thru-Hull Live Sonar Transducer
SKU:
Description

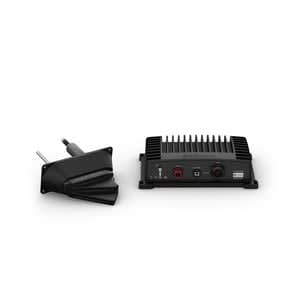

The Garmin LiveScope system (part 010-02233-00) pairs the GLS 10 sonar black box with the original LVS32 live sonar transducer and thru-hull mounting hardware. It shows fish, bait and your lure moving in real time out to 200 feet, and it works on more older Garmin units than any newer LiveScope.
What It Shows You
- Forward live sonar to see fish and cover ahead of the boat, out to 200 feet.
- Down live sonar to watch fish come up to your bait.
- Real time movement of fish and lures, not a history scroll.
Will It Fit My Garmin?
Garmin lists the LVS32 system for ECHOMAP Plus 7x and 9x units, ECHOMAP UHD 7x and 9x, ECHOMAP Ultra and Ultra 2, GPSMAP 7400 and 7600 series, GPSMAP 722, 742, 922 and 942 (Plus and non-Plus), GPSMAP 723, 743, 923, 943, 1022, 1042, 1222, 1223, 1242 and 1243 units, and GPSMAP 8400, 8600, 9000 and 9200 series. Some older units such as ECHOMAP Plus run LiveScope only with the LVS32. Call us with your exact model and we will confirm it before you buy.
Which One Do I Need?
Pick this system when your chartplotter is an older ECHOMAP Plus or GPSMAP 7400 or 7600 that does not list the newer transducers, or when you want a thru-hull LiveScope. For a newer unit, LiveScope 2 (LVS44) or LiveScope 2 HD (LVS42HD) give better detail with no black box. You can later move up to an LVS34 or LVS62 on the same GLS 10.
Specs
- Frequency: 530 to 1,100 kHz, 500 W
- Range (Garmin rating): forward 200 ft
- Power: 10 to 32 V, 21 W typical, 58 W max, 7.5 A fuse
- LVS32-TH size: 9.6 by 1.8 by 5.4 inches without fairing block; 4.4 lb
- GLS 10 black box: 9.6 by 5.9 by 2.6 inches, 4.3 lb, IPX7
- Network: Garmin Marine Network, small connector
In the Box
- LiveScope GLS 10 sonar black box
- Panoptix LVS32 transducer
- Thru-hull mount hardware
- Power cable
- 2 meter Garmin Marine Network cable (small connector)
- Network adapter cable
- Mounting hardware
- Documentation
Pros and Cons
- Pro: Works with older ECHOMAP Plus and GPSMAP units
- Pro: Black box included, upgrade path to LVS34 or LVS62
- Pro: Thru-hull hardware included
- Con: Original generation detail and range
- Con: Trolling motor and perspective mounts sold separately
Frequently Asked Questions
LVS32 vs LVS34?
LVS34 (LiveScope Plus) has better resolution and noise reduction. LVS32 works on more older units like ECHOMAP Plus.
Does this kit come with a trolling motor mount?
Garmin lists thru-hull mount hardware in the box. Trolling motor and perspective mounts are sold separately.
Do I need a GLS 10?
It is included in this system.
