Home / Garmin GT15M-TM 8-Pin Transom Transducer, Mid-Band CHIRP Traditional Sonar
BEST SELLER

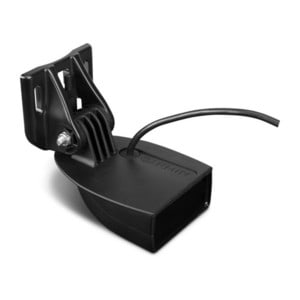

Garmin GT15M-TM 8-pin transom transducer 010-12402-10 with 30 foot cable, mid-band CHIRP traditional sonar
Roll over image to zoom in
Garmin

Garmin GT15M-TM 8-Pin Transom Transducer, Mid-Band CHIRP Traditional Sonar

SKU:

$229.99
Quantity:
🚚 Ships from Warehouse
Fast Shipping
Authorized Dealer
Easy Returns

Description

The Garmin GT15M-TM (part 010-12402-10) is an 8-pin transom mount transducer with 600 W mid-band CHIRP traditional sonar. It is built for anglers who want strong, deep 2D sonar and clear fish arches without paying for imaging channels they will not use, rated to 1,900 feet in freshwater.

What It Shows You

  • Mid-band CHIRP 2D sonar sweeping 85 to 165 kHz for clear fish arches, bait and bottom hardness.
  • Good target separation in deep lakes, rivers and coastal water.
  • Water temperature from the built-in sensor.

Will It Fit My Garmin?

This transducer has Garmin's 8-pin plug, so it plugs straight into Garmin units with an 8-pin sonar port. Units with a 4-pin port use the 8-pin transducer to 4-pin sounder adapter (010-12719-00), and ECHOMAP UHD2 sv, ECHOMAP Ultra 2 and GPSMAP xsv units with a 12-pin port use the 8-pin transducer to 12-pin sounder adapter with XID (010-12122-10). Adapters are sold separately. Your unit also has to support the frequencies listed below, so call us with your model and we will confirm it before you buy.

Which One Do I Need?

Pick the GT15M-TM when you only need traditional sonar and fish deeper water. Pick the GT8HW-TM for shallow freshwater, where high-wide CHIRP shows a wider cone. If you want ClearVu down imaging too, the GT23M-TM has the same mid-band CHIRP plus ClearVu. The GT15M-IH is the same sonar in an in-hull version that shoots through a solid fiberglass hull.

Specs

  • Traditional sonar: mid-band CHIRP 85 to 165 kHz, 600 W, 24 to 13 degree beam
  • Max depth (Garmin rating): 1,900 ft freshwater
  • Connector: 8-pin
  • Sensors: depth and water temperature
  • Cable: 30 ft
  • Mounting: transom, 0 to 70 degree transom angle

In the Box

  • GT15M-TM transducer with 30 ft cable
  • Transom mount
  • Documentation

Pros and Cons

  • Pro: 600 W mid-band CHIRP for deep water
  • Pro: Simple traditional sonar setup
  • Pro: 30 ft cable
  • Con: No ClearVu or SideVu imaging
  • Con: No trolling motor mount in the box

Frequently Asked Questions

Is the GT15M-TM 12-pin?

No, it is 8-pin. Units with a 12-pin port use the 8-pin to 12-pin adapter with XID, sold separately.

Does it show down imaging?

No. It is traditional CHIRP only. The GT23M-TM adds ClearVu with the same CHIRP.

How deep does it read?

Garmin rates it to 1,900 feet in freshwater. Real depth depends on water, bottom and your unit.

Why Buy From Carolina Sportsman Outfitters

Carolina Sportsman Outfitters is an authorized Garmin dealer, so you get a genuine GT15M-TM backed by Garmin's warranty plus our expert product support.

Visit our store at 7630 NC Hwy 39 N, Henderson, NC, or call 252-431-6001 and we will help you match the right transducer to your unit. See our return policy.
