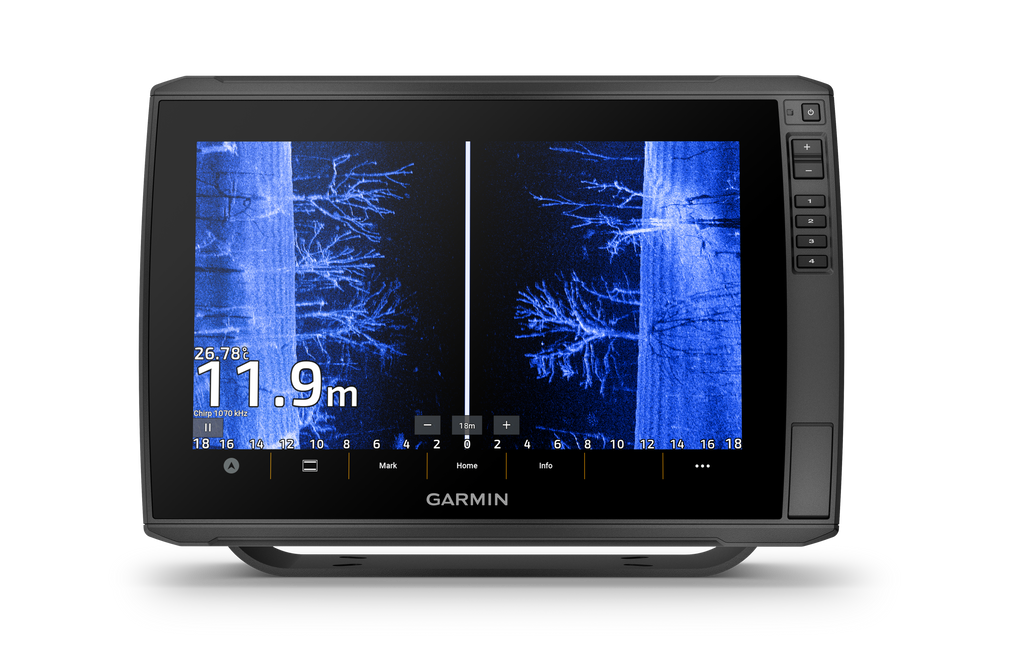

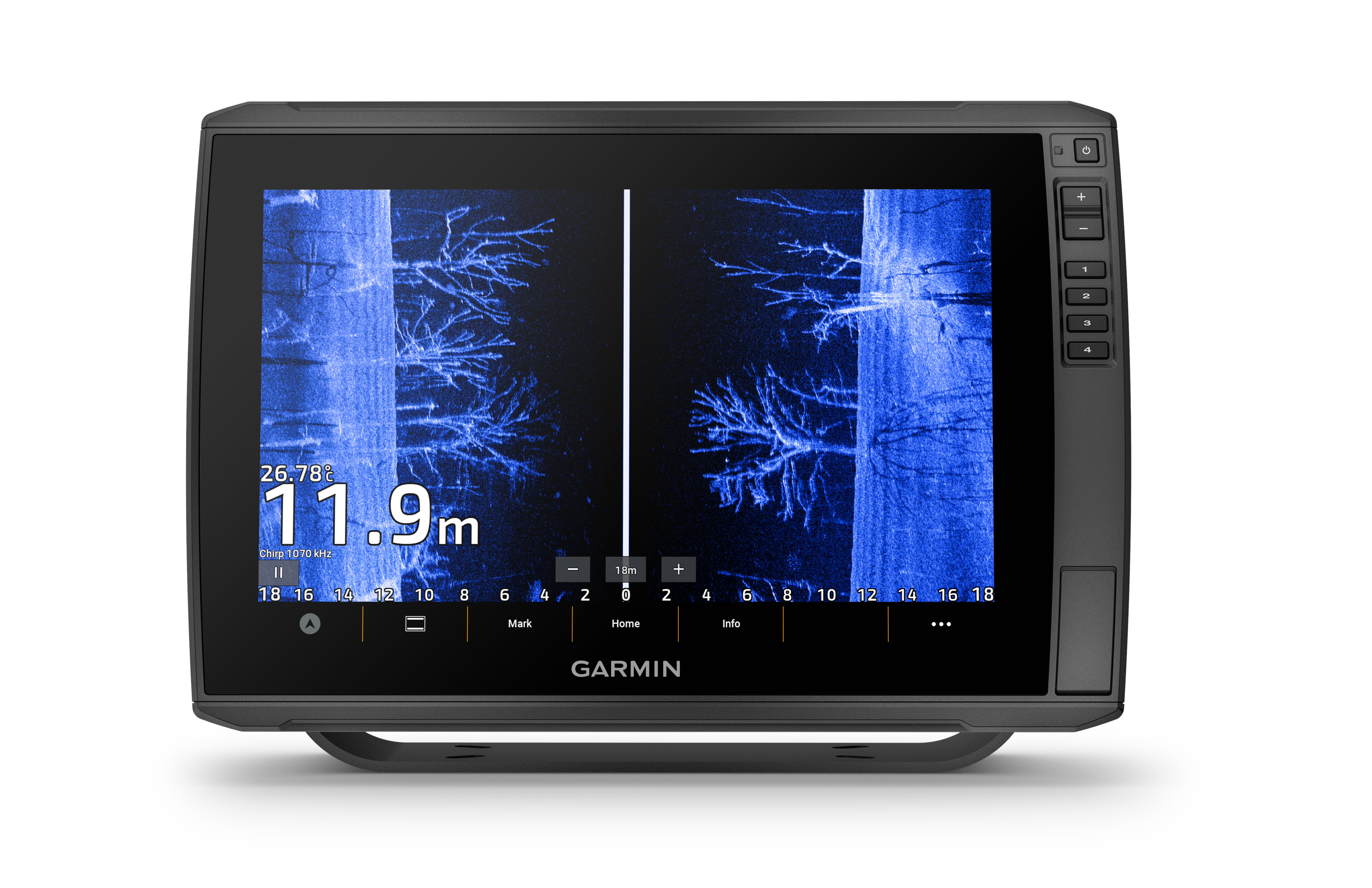

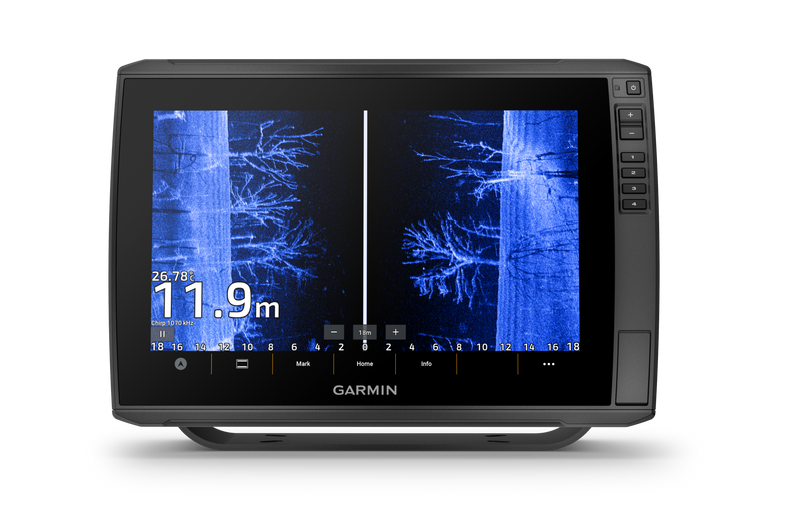

Garmin ECHOMAP Ultra 2 126Sv 12" Fishfinder | CHIRP + Clearvu + Sidevu | GT56UHD | Inland + Coastal

🐟 Premium 12" ECHOMAP Ultra 2 with brighter IPS display, full marine network support, and LiveScope Plus compatibility. Priced around $3299 in garmin's premium echomap tier.

Garmin ECHOMAP Ultra 2 126sv 12" Fish Finder with Transducer

The Garmin ECHOMAP Ultra 2 126sv is one of the best 12-inch premium fish finders for serious offshore anglers, charter captains, and pros running full multi-display tournament rigs in the $2,000-$3,500 premium tier. It's a 12" touchscreen fishfinder and chartplotter in Garmin's Ultra 2 premium tier, a step above the mainstream UHD2 line with a brighter IPS display, more powerful processor, full Garmin Marine Network (Ethernet) support, and edge-to-edge touch glass. This is the tier tournament pros and offshore captains step up to when sonar detail, multi-display networking, and display brightness matter more than budget. The included GT56UHD-TM transom-mount transducer is Garmin's Ultra High-Definition flagship transducer, CHIRP + ClearVü + SideVü with deeper range and sharper imaging than the GT54UHD found on UHD2 mainstream tier units.

This model ships with Navionics+ U.S. Inland + Coastal maps pre-loaded (keyed), making it ideal for anglers who fish both inland reservoirs and coastal waters. It's fully LiveScope Plus, LiveScope XR, and LiveScope Original compatible via the GLS 10 black box, and supports Panoptix PS22/PS31 live sonar directly. Unlike the UHD2 mainstream tier, the Ultra 2 gets full Garmin Marine Network (Ethernet) support, not limited, which matters on multi-unit boats where sharing sonar, radar, cameras, and autopilot across displays is critical.

Key Features

• ✅ 12" Ultra-Bright IPS Display, solar-readable at full sunlight, significantly brighter than UHD2 tier
• ✅ GT56UHD-TM Transducer Included, Ultra High-Definition CHIRP + ClearVü + SideVü, deeper range than GT54UHD
• ✅ Ultra High-Definition ClearVü & SideVü, photo-like images of structure, bait, and fish with premium tier processing
• ✅ High-Wide CHIRP Sonar, wider beam for better coverage while trolling or covering water
• ✅ Built-In GPS + U.S. Inland + Coastal, premium tier cartography
• ✅ Quickdraw Contours, create 1-foot contour maps of unmapped lakes
• ✅ LiveScope Plus / XR / Original Compatible, live forward-looking sonar via GLS 10 black box
• ✅ Panoptix PS22 / PS31 Compatible, live sonar direct connection
• ✅ Full Garmin Marine Network (Ethernet), NOT limited like UHD2; networks radar, cameras, autopilot, multi-display setups
• ✅ Wi-Fi + ActiveCaptain App, wireless software updates, waypoint sharing, smart notifications
• ✅ NMEA 2000 Networking, engines, trolling motors, sensors
• ✅ Dual microSD Card Slots, expand with LakeMaster, CoastMaster, or C-MAP chips
• ✅ Edge-to-Edge Glass Touch, premium display construction, better glove use and wet-hand usability

Who This Fish Finder Is For

The ECHOMAP Ultra 2 126sv is best for offshore charter captains, tournament pros, serious multi-species anglers, and owners of center console and sportfishing boats running premium electronics who need Garmin's premium tier performance, brighter display, faster processor, full networking, for tournament, offshore, or professional fishing applications. It's a common console choice on 22-32 ft center consoles, offshore rigs, and large bass boats with premium electronics packages. At 12 inches, the display dominates the helm with room for 4-6 split screens simultaneously. This is full-tournament-rig territory, the size tournament anglers, charter captains, and offshore fishermen step up to when sonar detail matters more than console real estate. Compared to the mainstream UHD2 tier (93sv, 94sv, 95sv), the Ultra 2 126sv trades ~$1,200 for premium display, processor, and networking capability, a meaningful step up if you run a multi-unit rig, fish offshore, or compete in tournaments where live sonar detail at speed matters.

Choose This If...

• You need the brighter premium IPS display, the Ultra 2 is noticeably brighter than UHD2 at full sunlight. If you fish in direct sun on open water, this matters.
• You run a multi-display networked boat, Ultra 2 gets full Garmin Marine Network (Ethernet); UHD2 gets limited network support only. Networked radar, cameras, and autopilot need this.
• You need 10-inch or larger screens, UHD2 tops out at 9" (95sv). For 10"+ displays, you're in Ultra 2 or GPSMAP territory.
• You want LiveScope Plus at its best, Ultra 2's faster processor and brighter display genuinely show more detail on LiveScope than UHD2 at the same refresh rate.
• Your budget supports the premium tier, $3299 for this unit vs ~$1,300 for a UHD2 equivalent at 9". The upgrade is real but so is the cost.
• Anglers who fish both inland reservoirs and coastal waters, this variant ships with Navionics+ U.S. Inland + Coastal maps pre-loaded (keyed). For Worldwide Basemap without regional maps, pick the 122sv variant.

Specifications

• Display: 12" Ultra-Bright IPS touchscreen, edge-to-edge glass
• Head Unit Dimensions: 13.5" W x 8.6" H x 2.5" D
• Head Unit Weight: 7.9 lbs
• Power: 12V DC
• Connectors: 12-pin Garmin transducer port, NMEA 2000, Garmin Marine Network (Ethernet), dual microSD slots
• Transducer: GT56UHD-TM included with 20 ft cable
• Waterproof rating: IPX7
• SKU: 010-02882-01

Compatibility Reference

The ECHOMAP Ultra 2 126sv works with these Garmin ecosystem components:

• Transducers: GT20, GT22, GT52HW, GT54UHD, GT56UHD (premium), Panoptix PS22/PS31, LVS32/LVS34 (via GLS 10), thru-hull transducers
• Live Sonar: LiveScope Plus, LiveScope XR, LiveScope Original (via GLS 10 black box)
• Trolling Motors: Garmin Force, Force Pro, Force Kraken, full integration
• Marine Network: Full Garmin Marine Network (Ethernet), radar, cameras, autopilot, multi-display rigs
• Networking: NMEA 2000, Wi-Fi, Garmin Marine Network
• Cartography: Navionics+, Navionics Vision+, LakeMaster VX, CoastMaster Premium, C-MAP Genesis Edge, Quickdraw Contours
• Apps & Integration: ActiveCaptain, Garmin Quatix marine smartwatches, Reactor autopilots

Warranty

Covered by Garmin's 1-year limited warranty. Carolina Sportsman Outfitters provides post-purchase setup guidance by phone for customers who need help with premium-tier installation, multi-display networking, LiveScope integration, or thru-hull transducer selection, call us any time during business hours.

Frequently Asked Questions

What's the difference between Ultra 2 and UHD2?

Ultra 2 is Garmin's premium ECHOMAP tier; UHD2 is mainstream. Key differences: (1) brighter IPS display, noticeably more readable in direct sun; (2) larger screen sizes available (Ultra 2 goes 10"/12"/16"; UHD2 tops out at 9"); (3) full Garmin Marine Network (Ethernet) support vs limited; (4) faster processor for smoother LiveScope and multi-split screens; (5) edge-to-edge glass construction. Most serious tournament anglers, offshore captains, and multi-display boat owners step up to Ultra 2. Recreational anglers on smaller boats are usually best served by UHD2.

Is the ECHOMAP Ultra 2 126sv LiveScope compatible?

Yes, fully. Supports LiveScope Plus, LiveScope XR, and LiveScope Original via the Garmin GLS 10 black box (sold separately, around $499). The Ultra 2's faster processor and brighter display show LiveScope detail better than UHD2 at the same refresh rate.

Does it support Panoptix live sonar?

Yes. Panoptix PS22 and PS31 live sonar connect directly to the Ultra 2 without requiring the GLS 10 black box. For Panoptix live sonar specifically, Ultra 2 is the preferred tier over UHD2.

Does the transducer come included?

Yes. This "Fishfinder" package includes the GT56UHD-TM transom-mount transducer with 20 ft of cable, Garmin's premium Ultra High-Definition transducer. If you already own a GT-series transducer or want to spec a thru-hull transducer, consider the "Chartplotter" variant (same head unit, no transducer included, saves approximately $400).

What maps are included?

This unit ships with Navionics+ U.S. Inland + Coastal maps pre-loaded (keyed). Preloaded coverage combines major U.S. inland reservoirs and rivers with coastal waters on both the Atlantic and Gulf, a premium feature that saves the cost of adding a second Navionics chip. For Worldwide Basemap without regional maps, pick the 122sv variant. All units accept LakeMaster VX, CoastMaster Premium, and C-MAP Genesis Edge via microSD for expanded coverage. Works for ice fishing with the addition of a LakeMaster VX chip.

Will this fit on my boat?

The head unit is 13.5" W x 8.6" H x 2.5" D. At 13.5 inches wide, it needs a console with real dashboard real estate, typically 22-32 ft center consoles, offshore rigs, and large bass boats with premium electronics packages. Flush-mount installation is common at this tier. Requires 12V DC power wired to the accessory panel. Most anglers have a professional installer do Ultra 2 tier installations, especially when networking multiple displays, budget $200-$500 for a shop install if you're not DIY-experienced.

Is this used in tournaments?

Yes, the Ultra 2 is common at the top levels of tournament fishing. Used by B.A.S.S. Elite, MLF Pro Tour, FLW pros, and offshore tournament anglers. LiveScope functionality is subject to each tournament's specific live sonar rules, check your circuit's current regulations before tournament day.
