Description

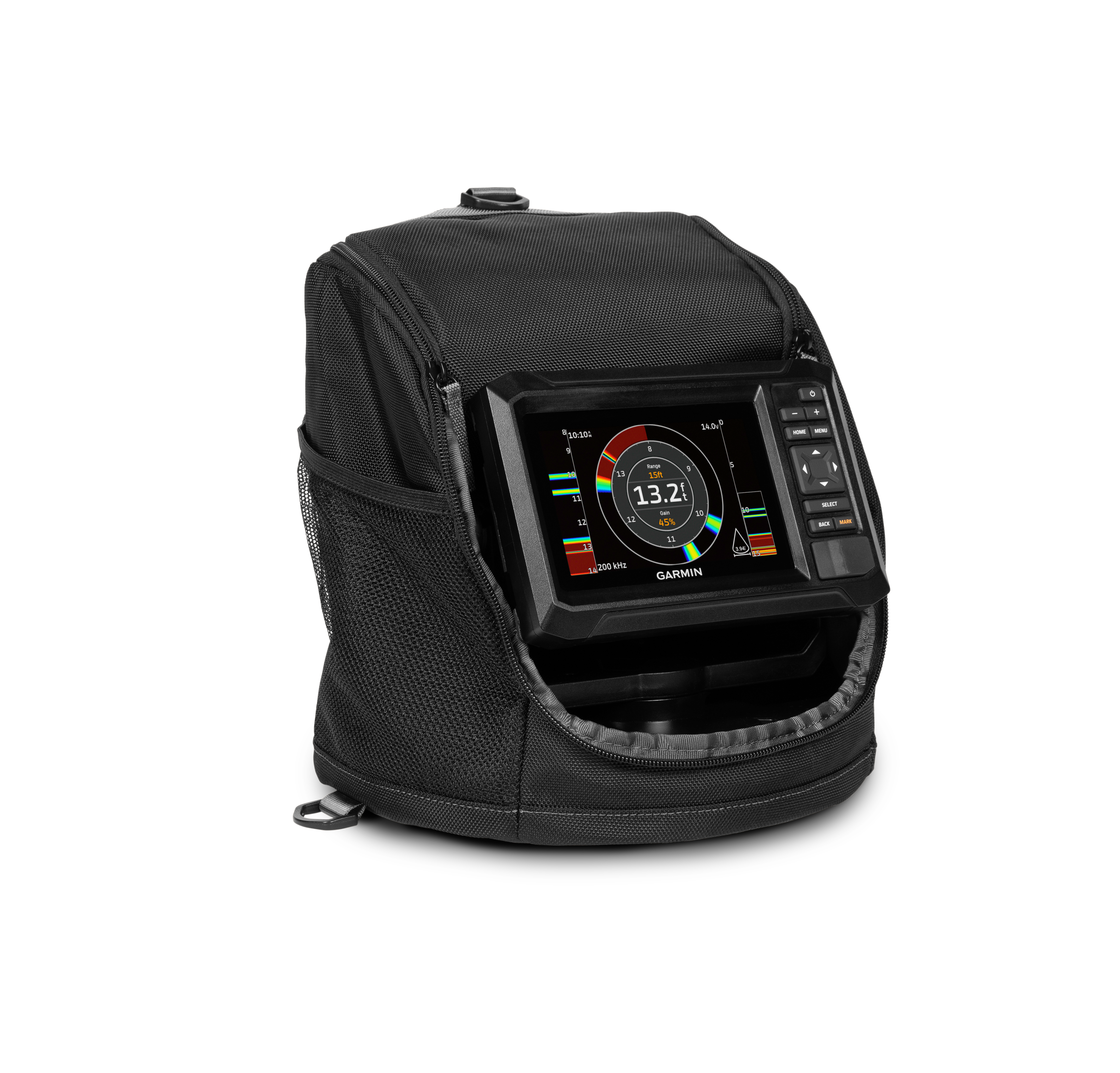

- ECHOMAP™ UHD2 chartplotter (version depends on mapping selected)
- Dual Beam-IF transducer
- Tilt/swivel mount
- Portable bag
- Base/handle
- Foam float
- Power cable
- Rechargeable battery
- Battery charger
- Documentation
Physical & Performance
| Display Size | 4.3" x 2.6" (10.9 x 6.6 cm) |
| Display resolution | 800 x 480 pixels |
| GPS | Yes |
| Dimension | 7.4" x 4.8" x 2.4" (18.8 x 12.2 x 6.2 cm) |
| Receiver |
5 Hz |
| Power Input | 9 to 18 Vdc |
| Waterproof |
IPX7 |
| Weight |
9.5 lbs (4.3 kg) |
| Display Type | WVGA, IPS |
Maps & Navigation
| Garmin Navionics+ (Inland) | yes (see Additional) |
| Navigation Routes | 100 |
| Garmin Navionics+™ | Yes |
| Garmin Navionics Vision+™ | Yes |
| Accepts Data Cards |
1 microSD™ card; 32 GB maximum size |
| Garmin Navionics+ Inland & Coastal | yes (see Additional) |
Features
| Waypoints |
5000 |
| Built-in Auto Guidance+ | yes (downloadable via ActiveCaptain app) |
| Has built-in receiver | Yes |
| Displays sonar | Yes |
| ANT+ (Connectivity) | No |
| TOPO | Yes |
| SideVü | No |
| BlueChart g3 Vision | No |
| Garmin Wi-Fi network (local connection) | Yes |
| Bag size | Small |
| Touchscreen | No |
| Additional |
Garmin Navionics+ Inland & Coastal: 55cv Canada Garmin Navionics + (Inland): 53cv U.S. Lakes |
| Input | Keyed |
| LakeVü g3 Ultra | No |
| BeiDou | No |
| NMEA 2000 Compatible | Yes |
| Garmin Quickdraw Contours | Yes |
| ActiveCaptain® compatible |
yes |
| BLUETOOTH® pairing | No |
| Supports multi-band, multi-constellation GPS | No |
| GLONASS | Yes |
| Track points | 50,000 |
| Panoptix™ sonar | No |
| Raster chart support | No |
| LakeVü g3 | No |
| 4-pin transducer ports | 1 |
| Supports WAAS | Yes |
| Transducer holding feature | Foam float |
| ClearVü | built-in 260/455/800/1000/1200 kHz |
| Tracks | 50 saved tracks |
| Battery type, size | SLA, 7Ah |
| Galileo | Yes |
| LiveScope | No |
| Power output | 500 W |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| Included transducer | DB-IF |
| BlueChart g3 | No |
| Standard Mapping | Yes |
