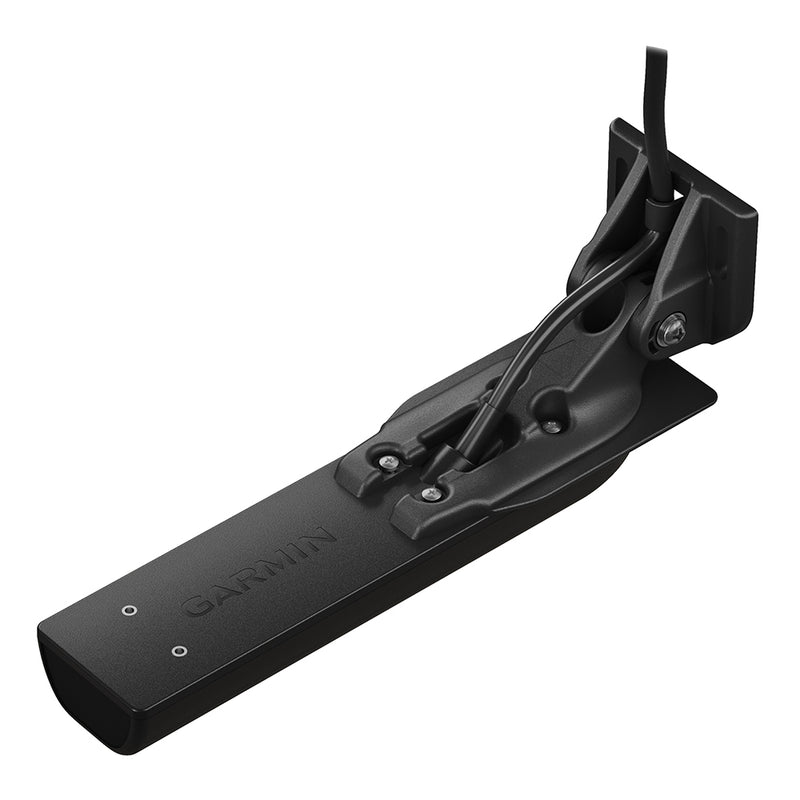

Garmin GT56UHD-TM 12-Pin Transom Transducer, CHIRP, Ultra HD ClearVu, Side Scan
SKU:
Description
The Garmin GT56UHD-TM (part 010-13073-00) is Garmin's top 12-pin all-in-one transom transducer, with high-wide CHIRP 2D sonar plus ClearVu and SideVu at 455, 800 and 1,000 kHz. The 1,000 kHz Ultra High-Definition channel draws brush, stumps and fish in sharp detail, while 455 kHz scans out to 500 feet when you are searching new water.
What It Shows You
- High-wide CHIRP 2D sonar for fish arches, bait and bottom to 800 feet.
- SideVu side imaging at 455, 800 or 1,000 kHz, out to 500 feet.
- ClearVu down imaging to 400 feet, plus water temperature.
Will It Fit My Garmin?
This transducer has Garmin's 12-pin plug, so it plugs straight into Garmin units with a 12-pin sonar port that support SideVu, such as ECHOMAP UHD2 sv, ECHOMAP Ultra 2 and GPSMAP xsv chartplotters. The Ultra High-Definition frequencies need a unit that supports UHD scanning. Call us with your exact model and we will confirm it before you buy.
Which One Do I Need?
Pick the GT56UHD-TM for one transducer that does it all in freshwater and inshore. Pick the GT36UHD-TM if you already have a separate 2D transducer, or the GT51M-TM for deep and salt water. Garmin sells the same sonar as the GT56UHD-THP thru-hull pair and the GT56UHD-TR built for Force trolling motors. Transom and trolling motor mounts are both in the box.
Specs
- Traditional sonar: high-wide CHIRP 150 to 240 kHz, 350 W, 24 to 16 degree beam
- ClearVu and SideVu: 455 kHz (425 to 485), 800 kHz (790 to 850) and 1,000 kHz (940 to 1,100), 500 W
- Beams: 1.1 by 52 degrees at 455 kHz, 0.64 by 35 degrees at 800 kHz, 0.52 by 52 degrees at 1,000 kHz
- Max depth and range (Garmin rating): 800 ft traditional (freshwater), 400 ft ClearVu, 500 ft SideVu
- Sensors: depth and water temperature
- Connector: 12-pin
- Cable: 25 ft
- Mounting: transom (0 to 70 degrees) or trolling motor
- Size without mount: 218.5 by 51.8 by 27.7 mm
In the Box
- GT56UHD-TM transducer with 25 ft cable
- Transom mount
- Trolling motor mount
- Mounting hardware
- Ferrite beads
- Documentation
Pros and Cons
- Pro: CHIRP 2D, ClearVu and SideVu in one
- Pro: Three scanning frequencies up to UHD 1,000 kHz
- Pro: SideVu out to 500 feet
- Con: Needs a UHD capable unit for 1,000 kHz
- Con: Not the deepest option for offshore
Frequently Asked Questions
GT56UHD vs GT54UHD?
The GT56 scans at 455, 800 and 1,000 kHz on both ClearVu and SideVu with ClearVu to 400 feet. The GT54 uses 800 kHz ClearVu to 200 feet and 455 or 1,200 kHz SideVu.
Can it go on my trolling motor?
Yes. A trolling motor mount comes in the box. Garmin Force owners use the GT56UHD-TR made for the Force nose cone.
Is it 12-pin?
Yes.
