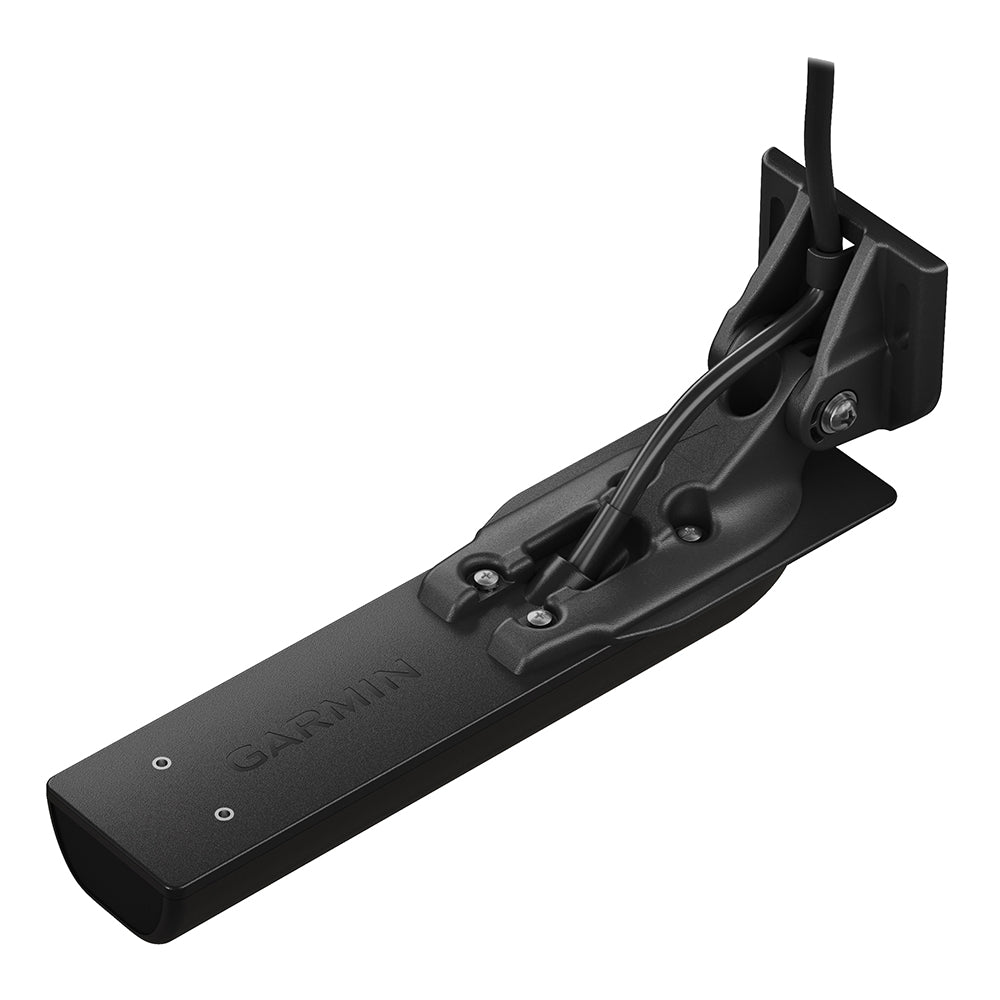

Garmin GT36UHD-TM 12-Pin Transom Transducer, Ultra HD ClearVu and SideVu
SKU:
Description
The Garmin GT36UHD-TM (part 010-13072-00) is a 12-pin transom mount scanning transducer with ClearVu and SideVu at 455, 800 and 1,000 kHz, including Ultra High-Definition 1,000 kHz. It gives the same scanning as the GT56UHD-TM without the traditional 2D element, for boats that already have a separate CHIRP transducer.
What It Shows You
- SideVu side imaging at 455, 800 or 1,000 kHz, up to 500 feet, so you can trade range for detail on the water.
- ClearVu down imaging up to 400 feet.
- Water temperature from the built-in sensor.
Will It Fit My Garmin?
This transducer has Garmin's 12-pin plug, so it plugs straight into Garmin units with a 12-pin sonar port that support SideVu, such as ECHOMAP UHD2 sv, ECHOMAP Ultra 2 and GPSMAP xsv chartplotters. The Ultra High-Definition frequencies need a unit that supports UHD scanning. Garmin also lists the GCV 20 scanning sonar black box. Call us with your exact model and we will confirm it before you buy.
Which One Do I Need?
Pick the GT36UHD-TM when you already have traditional 2D sonar from another transducer and want top Garmin scanning. Pick the GT56UHD-TM to get high-wide CHIRP 2D in the same housing. If you need 2D too, Garmin's GT36 bundles add an in-hull GT8HW-IH or GT15M-IH plus a Y-cable. Transom and trolling motor mounts are both in the box.
Specs
- ClearVu and SideVu: 455 kHz (425 to 485), 800 kHz (790 to 850) and 1,000 kHz (940 to 1,100), 500 W
- Beams: 1.1 by 52 degrees at 455 kHz, 0.64 by 35 degrees at 800 kHz, 0.52 by 52 degrees at 1,000 kHz
- Max range (Garmin rating): ClearVu 400 ft, SideVu 500 ft
- Traditional 2D sonar: none
- Sensors: depth and water temperature
- Cable: 25 ft
- Connector: 12-pin
- Size without mount: 218.5 by 51.8 by 27.7 mm
- Mounting: transom (0 to 70 degrees) or trolling motor
In the Box
- GT36UHD-TM transducer with 25 ft cable
- Transom mount
- Trolling motor mount
- Mounting hardware
- Documentation
Pros and Cons
- Pro: Three scanning frequencies up to UHD 1,000 kHz
- Pro: SideVu out to 500 feet
- Pro: Transom and trolling motor mounts included
- Con: No traditional 2D sonar
- Con: Needs a UHD capable unit for 1,000 kHz
Frequently Asked Questions
GT36UHD vs GT56UHD?
Same ClearVu and SideVu. The GT56UHD-TM adds high-wide CHIRP traditional 2D sonar.
Do I need a second transducer?
If you want fish arches and depth from traditional sonar, yes. The GT36 bundles include an in-hull CHIRP transducer and Y-cable.
Is it 12-pin?
Yes.
