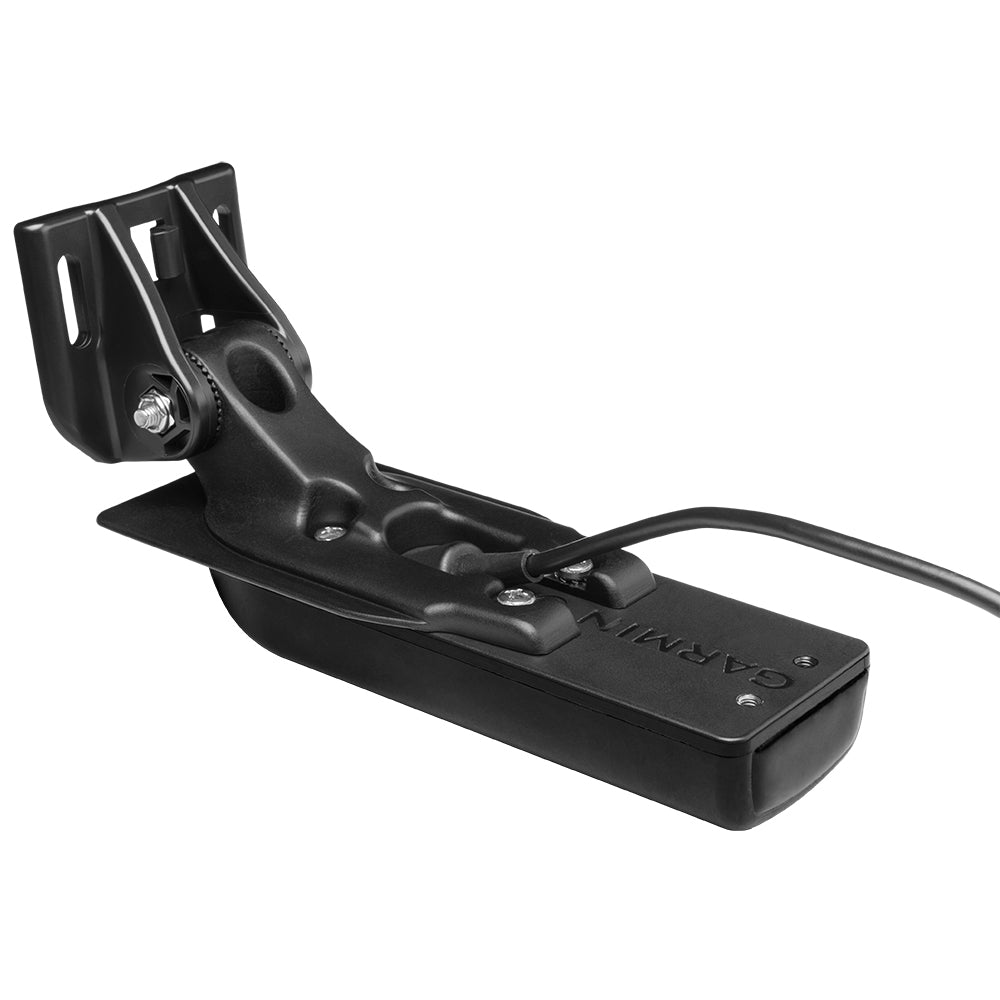

Garmin GT24UHD-TM 8-Pin Transom Transducer, CHIRP and Ultra HD ClearVu
SKU:
Description
The Garmin GT24UHD-TM (part 010-12908-00) is an 8-pin all-in-one transom transducer that pairs high-wide CHIRP traditional sonar with Ultra High-Definition (UHD) ClearVu down imaging at 800 kHz. The UHD ClearVu beam is very thin, 0.94 by 60 degrees, so brush piles, stumps and fish stand out with photo-like detail down to 200 feet.
What It Shows You
- High-wide CHIRP 2D sonar for fish arches, bait and bottom to 800 feet.
- Ultra High-Definition ClearVu down imaging at 800 kHz for the sharpest down view in the 8-pin line.
- Water temperature from the built-in sensor.
Will It Fit My Garmin?
This transducer has Garmin's 8-pin plug, so it plugs straight into Garmin units with an 8-pin sonar port. Units with a 4-pin port use the 8-pin transducer to 4-pin sounder adapter (010-12719-00), and ECHOMAP UHD2 sv, ECHOMAP Ultra 2 and GPSMAP xsv units with a 12-pin port use the 8-pin transducer to 12-pin sounder adapter with XID (010-12122-10). Adapters are sold separately. Your unit also has to support the frequencies listed below, so call us with your model and we will confirm it before you buy. Ultra High-Definition ClearVu needs a Garmin unit that supports UHD; Garmin does not list STRIKER units for UHD.
Which One Do I Need?
Pick the GT24UHD-TM for shallow and mid-depth freshwater when your unit supports UHD and you want the sharpest down view. Pick the GT22HW-TM for standard ClearVu on units without UHD, or the GT23M-TM for deep water. For side imaging step up to the 12-pin GT54UHD-TM or GT56UHD-TM. Transom and trolling motor mounts are both in the box.
Specs
- Traditional sonar: high-wide CHIRP 150 to 240 kHz, 350 W, 24 to 16 degree beam
- UHD ClearVu: CHIRP 800 kHz (760 to 880), 350 W, 0.94 by 60 degree beam
- Max depth (Garmin rating): 800 ft traditional, 200 ft ClearVu
- Sensors: depth and water temperature
- Cable: 20 ft
- Connector: 8-pin
- Mounting: transom (0 to 70 degrees) or trolling motor
In the Box
- GT24UHD-TM transducer with 20 ft cable
- Transom mount
- Trolling motor mount
- Mounting hardware
- Documentation
Pros and Cons
- Pro: Sharpest down imaging in an 8-pin Garmin transducer
- Pro: High-wide CHIRP plus UHD ClearVu in one
- Pro: Transom and trolling motor mounts included
- Con: UHD ClearVu range is 200 feet
- Con: Needs a UHD capable unit; not listed for STRIKER
- Con: No side imaging
Frequently Asked Questions
Does the GT24UHD-TM work with STRIKER?
Garmin does not list STRIKER units as supporting Ultra High-Definition ClearVu, so we do not recommend it for STRIKER. Call us with your model.
Is the GT24UHD-TM 4-pin or 8-pin?
It is 8-pin. There is no 4-pin version.
Does it have SideVu?
No. For UHD side imaging look at the GT54UHD-TM or GT56UHD-TM.
