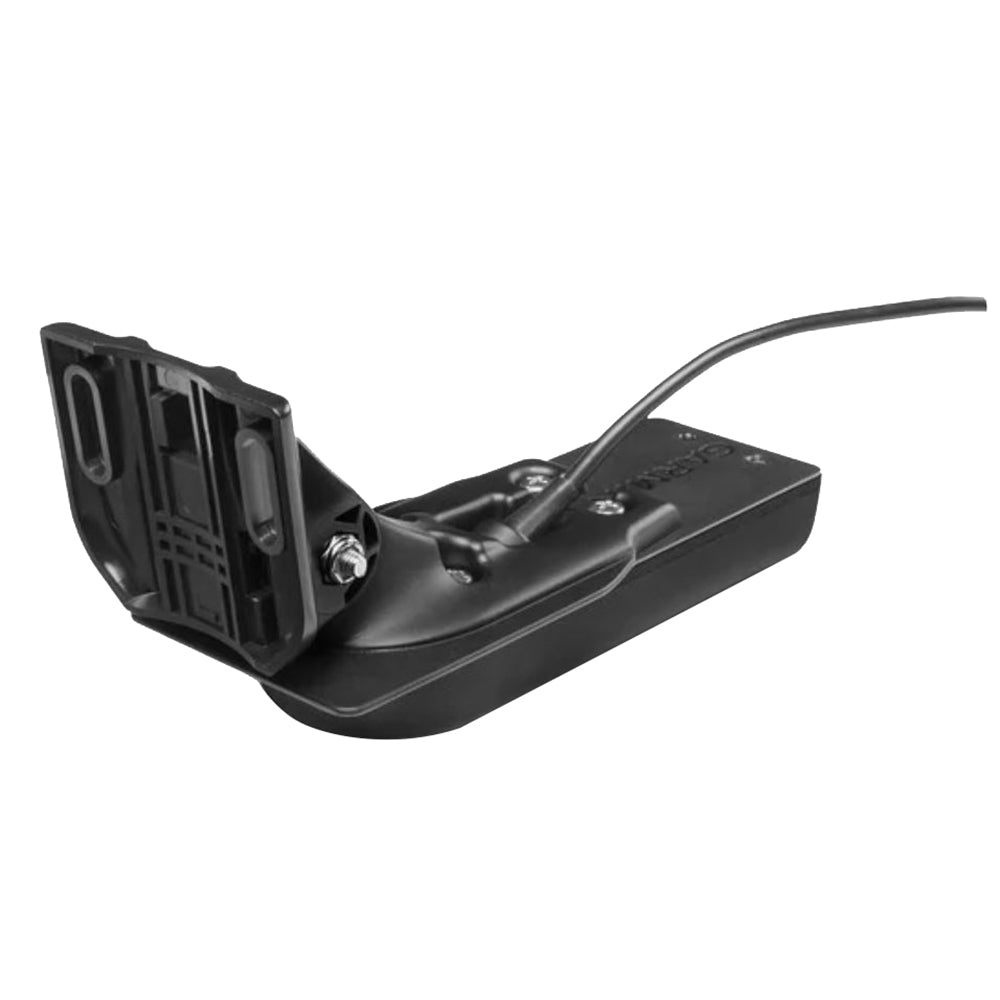

Garmin GT52HW-TM 12-Pin Transom Transducer, High-Wide CHIRP, ClearVu, Side Scan
SKU:
Description
The Garmin GT52HW-TM (part 010-12405-00) is a 12-pin all-in-one transom transducer with high-wide CHIRP 2D sonar plus ClearVu and SideVu at 455 and 800 kHz. It is the value all-in-one for freshwater, giving fish arches, down imaging and side scan from a single transducer on the transom or trolling motor.
What It Shows You
- High-wide CHIRP 2D sonar from 150 to 240 kHz with a wide cone, to 800 feet.
- SideVu side imaging at 455 and 800 kHz for brush, docks and rock, up to 500 feet.
- ClearVu down imaging up to 500 feet, plus water temperature.
- Find brush piles and docks on SideVu, then idle back over them and watch for fish arches on 2D.
Will It Fit My Garmin?
This transducer has Garmin's 12-pin plug, so it plugs straight into Garmin units with a 12-pin sonar port that support SideVu, such as ECHOMAP UHD2 sv, ECHOMAP Ultra 2 and GPSMAP xsv chartplotters. Call us with your exact model and we will confirm it before you buy.
Which One Do I Need?
Pick the GT52HW-TM for an all-in-one freshwater setup when your unit does not run UHD, or to save over a UHD model. Pick the GT54UHD-TM or GT56UHD-TM for Ultra High-Definition detail. Pick the GT51M-TM for deep or salt water. Transom and trolling motor mounts are both in the box.
Specs
- Traditional sonar: high-wide CHIRP 150 to 240 kHz, 250 W, 24 to 16 degree beam
- ClearVu and SideVu: CHIRP 455 kHz (425 to 485) and 800 kHz (790 to 850), 350 W
- Beams: 2.0 by 50 degrees at 455 kHz, 1.0 by 30 degrees at 800 kHz
- Max depth and range (Garmin rating): 800 ft traditional, 500 ft ClearVu, 500 ft SideVu
- Sensors: depth and water temperature
- Cable: 20 ft
- Connector: 12-pin
- Mounting: transom (0 to 70 degrees) or trolling motor
In the Box
- GT52HW-TM transducer with 20 ft cable
- Transom mount
- Trolling motor mount
- Mounting hardware
- Documentation
Pros and Cons
- Pro: CHIRP 2D, ClearVu and SideVu in one
- Pro: Works on non-UHD sv units
- Pro: Transom and trolling motor mounts included
- Con: No Ultra High-Definition frequencies
- Con: Not built for deep salt water
Frequently Asked Questions
GT52HW vs GT56UHD?
The GT56UHD adds Ultra High-Definition 1,000 kHz scanning and longer ClearVu range. The GT52HW scans at 455 and 800 kHz.
Does it need a UHD unit?
No. It runs 455 and 800 kHz scanning, which standard SideVu units support.
Is it 12-pin?
Yes.
