Home / Garmin GT8HW-IH 8-Pin In-Hull Transducer, High-Wide CHIRP Traditional Sonar
BEST SELLER

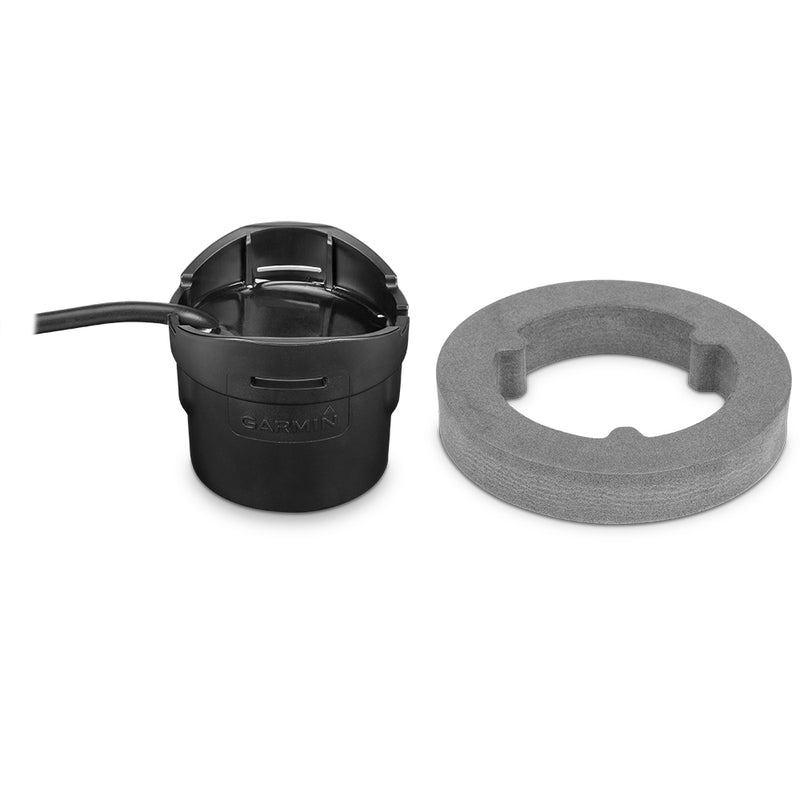

Garmin GT8HW-IH 8-pin in-hull transducer 010-12401-10 with in-hull fitting, high-wide CHIRP
Roll over image to zoom in
Garmin

Garmin GT8HW-IH 8-Pin In-Hull Transducer, High-Wide CHIRP Traditional Sonar

SKU:

$149.99
Quantity:
🚚 Ships from Warehouse
Fast Shipping
Authorized Dealer
Easy Returns

Description

The Garmin GT8HW-IH (part 010-12401-10) is an 8-pin in-hull transducer with high-wide CHIRP traditional sonar. It mounts inside the boat and shoots through a solid fiberglass hull, so there is no hole to drill and nothing on the transom to catch weeds, stumps or ramp damage.

What It Shows You

  • High-wide CHIRP 2D sonar from 145 to 230 kHz for fish arches, bait and bottom.
  • Wide 24 to 16 degree cone for shallow and mid-depth freshwater.
  • Steady depth readings at running speed.

Will It Fit My Garmin?

This transducer has Garmin's 8-pin plug, so it plugs straight into Garmin units with an 8-pin sonar port. Units with a 4-pin port use the 8-pin transducer to 4-pin sounder adapter (010-12719-00), and ECHOMAP UHD2 sv, ECHOMAP Ultra 2 and GPSMAP xsv units with a 12-pin port use the 8-pin transducer to 12-pin sounder adapter with XID (010-12122-10). Adapters are sold separately. Your unit also has to support the frequencies listed below, so call us with your model and we will confirm it before you buy.

Which One Do I Need?

Pick the GT8HW-IH for a solid fiberglass hull with 0 to 6 degrees of deadrise, like many bass boats and flats boats. For a deeper V hull up to 25 degrees, pick the GT15M-IH. In-hull units do not work through aluminum, wood or cored hulls. The GT8HW-IH is also the in-hull half of Garmin's GT36UHD-TM bundle, which adds UHD side imaging on the transom.

Specs

  • Traditional sonar: high-wide CHIRP 145 to 230 kHz, 250 W, 24 to 16 degree beam
  • Max depth (Garmin rating): 800 ft freshwater
  • Sensors: depth only (no water temperature)
  • Cable: 20 ft
  • Connector: 8-pin
  • Mounting: in-hull, 0 to 6 degree deadrise

In the Box

  • GT8HW-IH transducer with 20 ft cable
  • In-hull fitting
  • Documentation

Pros and Cons

  • Pro: No hole in the hull
  • Pro: Wide high-wide CHIRP cone
  • Pro: Reads at running speed
  • Con: Solid fiberglass, low deadrise hulls only (0 to 6 degrees)
  • Con: No water temperature
  • Con: No imaging

Frequently Asked Questions

Is this an ice fishing transducer?

No. The GT8HW-IH is an in-hull boat transducer. The ice version is the 4-pin GT8HW-IF.

What hulls does it fit?

Solid fiberglass hulls with 0 to 6 degrees of deadrise at the mounting spot. For more deadrise use the GT15M-IH.

Is it 8-pin?

Yes. 12-pin units use the 8-pin to 12-pin adapter with XID, sold separately.

Why Buy From Carolina Sportsman Outfitters

Carolina Sportsman Outfitters is an authorized Garmin dealer, so you get a genuine GT8HW-IH backed by Garmin's warranty plus our expert product support.

Visit our store at 7630 NC Hwy 39 N, Henderson, NC, or call 252-431-6001 and we will help you match the right transducer to your unit. See our return policy.
