Home / Garmin GT8HW-TM 8-Pin Transom Transducer, High-Wide CHIRP Traditional Sonar
BEST SELLER

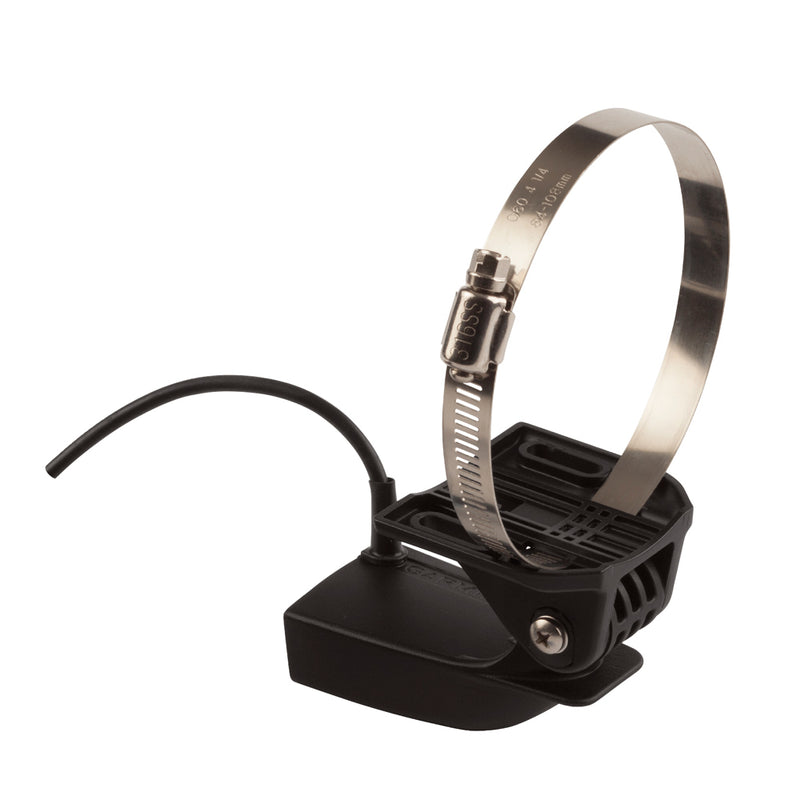

Garmin GT8HW-TM 8-pin transom transducer 010-12401-00 with transom and trolling motor mounts, high-wide CHIRP
Roll over image to zoom in
Garmin

Garmin GT8HW-TM 8-Pin Transom Transducer, High-Wide CHIRP Traditional Sonar

SKU:

$179.99
Quantity:
🚚 Ships from Warehouse
Fast Shipping
Authorized Dealer
Easy Returns

Description

The Garmin GT8HW-TM (part 010-12401-00) is an 8-pin transom mount transducer with high-wide CHIRP traditional sonar. High-wide CHIRP sweeps 145 to 230 kHz with a wide 24 to 16 degree beam, so you see more fish and bait under the boat in the shallow and mid-depth freshwater where most anglers fish.

What It Shows You

  • High-wide CHIRP 2D sonar for clear fish arches, bait and bottom with wide coverage.
  • Good detail in shallow water, rated to 800 feet in freshwater.
  • Water temperature from the built-in sensor.

Will It Fit My Garmin?

This transducer has Garmin's 8-pin plug, so it plugs straight into Garmin units with an 8-pin sonar port. Units with a 4-pin port use the 8-pin transducer to 4-pin sounder adapter (010-12719-00), and ECHOMAP UHD2 sv, ECHOMAP Ultra 2 and GPSMAP xsv units with a 12-pin port use the 8-pin transducer to 12-pin sounder adapter with XID (010-12122-10). Adapters are sold separately. Your unit also has to support the frequencies listed below, so call us with your model and we will confirm it before you buy.

Which One Do I Need?

Pick the GT8HW-TM when you want simple, strong traditional sonar for lakes and rivers. Pick the GT15M-TM for deeper or salt water. If you want ClearVu down imaging too, the GT22HW-TM has the same style of high-wide CHIRP plus ClearVu. Transom and trolling motor mounts both come in the box. The GT8HW-IH is the in-hull version and the GT8HW-IF is the 4-pin ice fishing version.

Specs

  • Traditional sonar: high-wide CHIRP 145 to 230 kHz, 250 W, 24 to 16 degree beam
  • Max depth (Garmin rating): 800 ft freshwater
  • Sensors: depth and water temperature
  • Cable: 20 ft
  • Connector: 8-pin
  • Mounting: transom (0 to 70 degrees) or trolling motor

In the Box

  • GT8HW-TM transducer with 20 ft cable
  • Transom mount
  • Trolling motor mount
  • Mounting hardware
  • Documentation

Pros and Cons

  • Pro: Wide coverage cone for shallow water
  • Pro: Transom and trolling motor mounts included
  • Pro: Built-in water temperature
  • Con: No ClearVu or SideVu imaging
  • Con: Not built for deep salt water

Frequently Asked Questions

Is the GT8HW-TM 4-pin?

No, it is 8-pin. The 4-pin high-wide transducer is the GT8HW-IF for ice fishing.

GT8HW-TM vs GT15M-TM?

The GT8HW has a wider high-wide CHIRP cone for shallow freshwater. The GT15M has 600 W mid-band CHIRP for deeper water.

Can it go on my trolling motor?

Yes. A trolling motor mount comes in the box.

Why Buy From Carolina Sportsman Outfitters

Carolina Sportsman Outfitters is an authorized Garmin dealer, so you get a genuine GT8HW-TM backed by Garmin's warranty plus our expert product support.

Visit our store at 7630 NC Hwy 39 N, Henderson, NC, or call 252-431-6001 and we will help you match the right transducer to your unit. See our return policy.
