Home / Garmin GT20-TM 8-Pin Transom Transducer, 2D Sonar and ClearVu Down Imaging
BEST SELLER

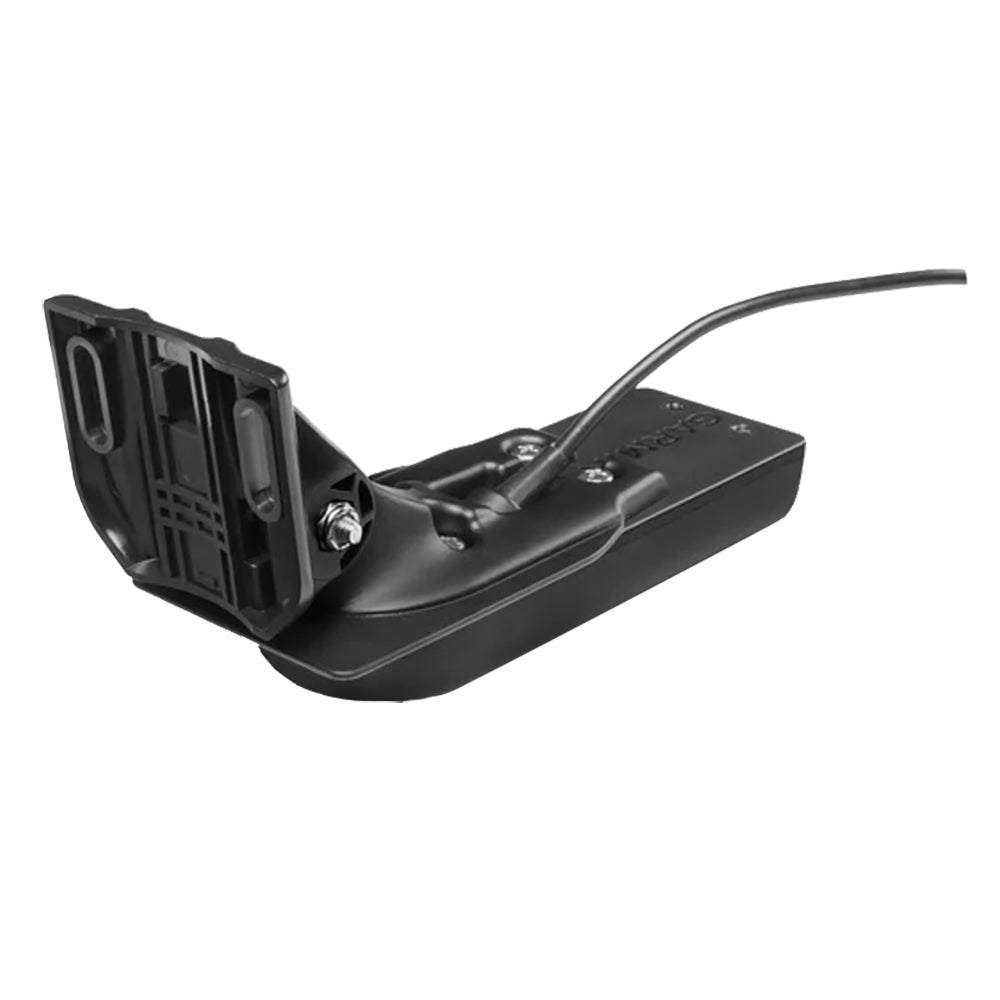

Garmin GT20-TM 8-pin transom transducer 010-01960-01 with 20 foot cable and transom bracket, 2D sonar and ClearVu down imaging
Roll over image to zoom in
Garmin

Garmin GT20-TM 8-Pin Transom Transducer, 2D Sonar and ClearVu Down Imaging

SKU:

$99.99
Quantity:
🚚 Ships from Warehouse
Fast Shipping
Authorized Dealer
Easy Returns

Description

The Garmin GT20-TM 8-pin (part 010-01960-01) is a transom mount fish finder transducer with traditional 2D sonar and ClearVu down imaging, built for Garmin units with an 8-pin sonar port. It mounts on your boat's transom or on your trolling motor with the mounts in the box.

What It Shows You

  • 2D sonar (77/200 kHz) for depth, bottom, fish arches and bait.
  • ClearVu down imaging (CHIRP 455/800 kHz) for a photo-like view of brush, rock and fish under the boat.
  • Water temperature from the built-in sensor.

Will It Fit My Garmin?

Garmin's transducer selection guide lists the 8-pin GT20-TM as a direct fit for GPSMAP 8600xsv, GPSMAP 9000xsv and the GSD 25 sonar module. Dealer listings show it replacing 010-12087-01 and fitting echoMAP 50dv and 70dv plus GPSMAP 5x7, 8x0, 10x0 and 7600xsv units. With Garmin adapter cables it also works on ECHOMAP UHD2 cv (010-12719-00) and on ECHOMAP UHD2 sv, ECHOMAP Ultra 2 and GPSMAP x3 xsv units (010-12122-10).

8-Pin or 4-Pin?

Both GT20-TM versions give the same sonar. Only the plug is different. Get this 8-pin for 8-pin Garmin units. Get the 4-pin (010-01960-00) for STRIKER and ECHOMAP UHD2 cv units.

Specs

  • Part number: 010-01960-01
  • Connector: 8-pin Garmin sonar plug
  • Traditional sonar: 77/200 kHz, 500 W
  • ClearVu down imaging: CHIRP 455/800 kHz
  • Beam width: traditional 45 and 15 degrees; ClearVu 2.5 by 53 degrees at 455 kHz, 1.6 by 29 degrees at 800 kHz
  • Max depth (Garmin rating): 1,900 ft traditional, 750 ft ClearVu
  • Sensors: depth and water temperature (no speed)
  • Cable: 20 ft
  • Mounting: transom or trolling motor

In the Box

  • GT20-TM transducer with 20 ft cable and built-in temperature sensor
  • Transom mount bracket and hardware
  • Trolling motor mount
  • Installation instructions

Pros and Cons

  • Pro: 2D sonar and ClearVu down imaging in one transducer
  • Pro: transom and trolling motor mounts both included
  • Pro: built-in water temperature
  • Con: no side imaging (SideVu), even on sv units
  • Con: the traditional 2D side is fixed 77/200 kHz, not CHIRP

Frequently Asked Questions

Does the GT20-TM have side imaging?

No. It shows 2D sonar and ClearVu down imaging. On an sv unit you will not get SideVu with this transducer.

Can I mount it on my trolling motor?

Yes. A trolling motor mount comes in the box along with the transom bracket.

Do I need an adapter cable?

Not on an 8-pin Garmin unit. ECHOMAP UHD2, ECHOMAP Ultra 2 and GPSMAP x3 xsv units need the Garmin adapter cable listed above (sold separately).
