Home / Garmin GT20-TM 4-Pin Transom Transducer, ClearVu Down Imaging for STRIKER
BEST SELLER

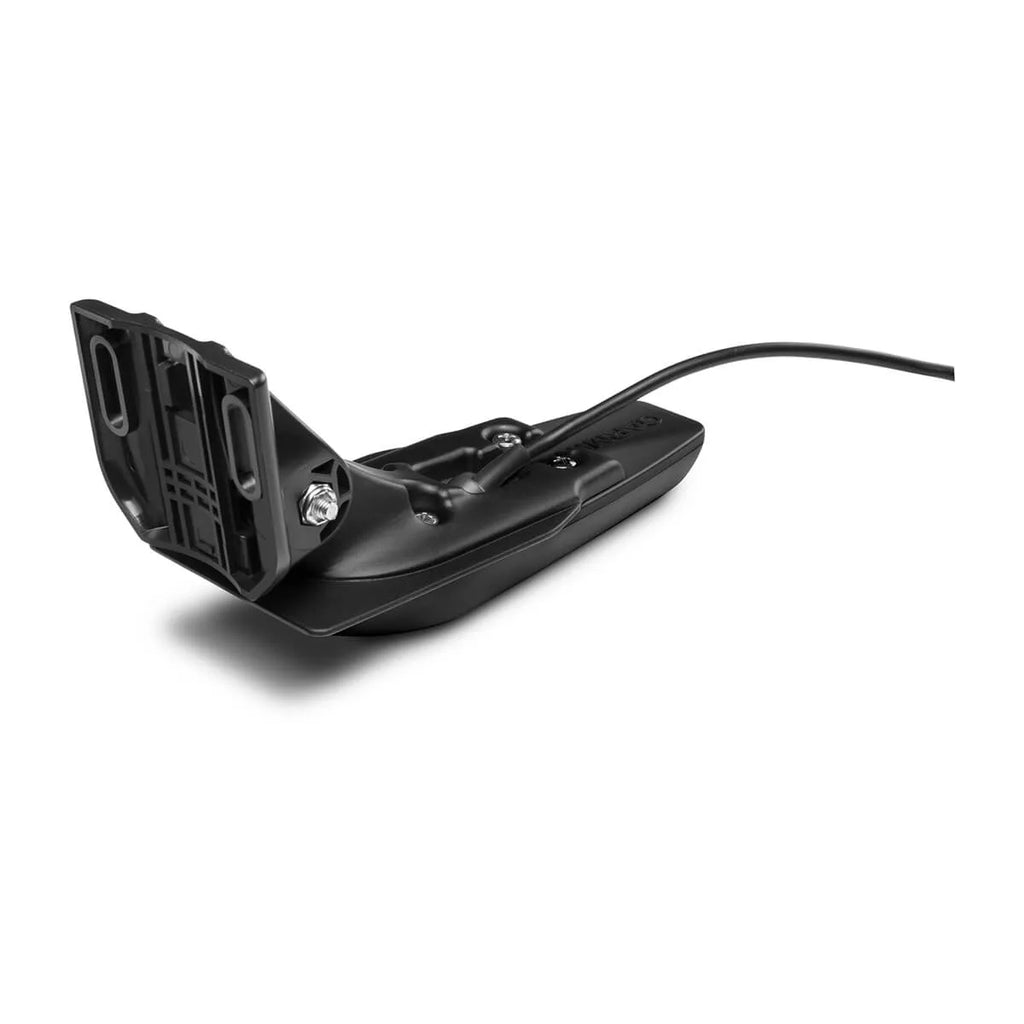

Garmin GT20-TM 4-pin transom transducer 010-01960-00 with 20 foot cable and transom bracket, 2D sonar and ClearVu down imaging
Roll over image to zoom in
Garmin

Garmin GT20-TM 4-Pin Transom Transducer, ClearVu Down Imaging for STRIKER

SKU:

$99.99
Quantity:
🚚 Ships from Warehouse
Fast Shipping
Authorized Dealer
Easy Returns

Description

The Garmin GT20-TM 4-pin (part 010-01960-00) is a transom mount fish finder transducer with traditional 2D sonar and ClearVu down imaging. It plugs straight into Garmin units with a 4-pin sonar port, like the STRIKER cv and sv lines, and mounts on your boat's transom or on your trolling motor with the mounts in the box.

What It Shows You

  • 2D sonar (77/200 kHz) for depth, bottom, fish arches and bait.
  • ClearVu down imaging (CHIRP 455/800 kHz) for a photo-like view of brush, rock and fish under the boat.
  • Water temperature from the built-in sensor.

Will It Fit My Garmin?

Garmin's transducer selection guide lists the 4-pin GT20-TM for STRIKER cv, STRIKER sv and ECHOMAP UHD2 cv units. Dealer listings also show it replacing the older CV20-TM (010-12758-00) and fitting echo dv and cv units. Not sure what you have? Count the pins on the plug that goes into your unit.

4-Pin or 8-Pin?

Both GT20-TM versions give the same sonar. Only the plug is different. Get this 4-pin for STRIKER and ECHOMAP UHD2 cv units. Get the 8-pin (010-01960-01) for Garmin units with an 8-pin port.

Specs

  • Part number: 010-01960-00
  • Connector: 4-pin Garmin sonar plug
  • Traditional sonar: 77/200 kHz, 500 W
  • ClearVu down imaging: CHIRP 455/800 kHz
  • Beam width: traditional 45 and 15 degrees; ClearVu 2.5 by 53 degrees at 455 kHz, 1.6 by 29 degrees at 800 kHz
  • Max depth (Garmin rating): 1,900 ft traditional, 750 ft ClearVu
  • Sensors: depth and water temperature (no speed)
  • Cable: 20 ft
  • Mounting: transom or trolling motor

In the Box

  • GT20-TM transducer with 20 ft cable and built-in temperature sensor
  • Transom mount bracket and hardware
  • Trolling motor mount
  • Installation instructions

Pros and Cons

  • Pro: 2D sonar and ClearVu down imaging in one transducer
  • Pro: transom and trolling motor mounts both included
  • Pro: built-in water temperature
  • Con: no side imaging (SideVu), even on sv units
  • Con: the traditional 2D side is fixed 77/200 kHz, not CHIRP

Frequently Asked Questions

Does the GT20-TM have side imaging?

No. It shows 2D sonar and ClearVu down imaging. On an sv unit you will not get SideVu with this transducer.

Can I mount it on my trolling motor?

Yes. A trolling motor mount comes in the box along with the transom bracket.

Is the GT20-TM 4-pin the replacement for the CV20-TM?

Dealer listings show the 4-pin GT20-TM replacing the CV20-TM (010-12758-00). Call 252-431-6001 and we will check your unit.
