Description

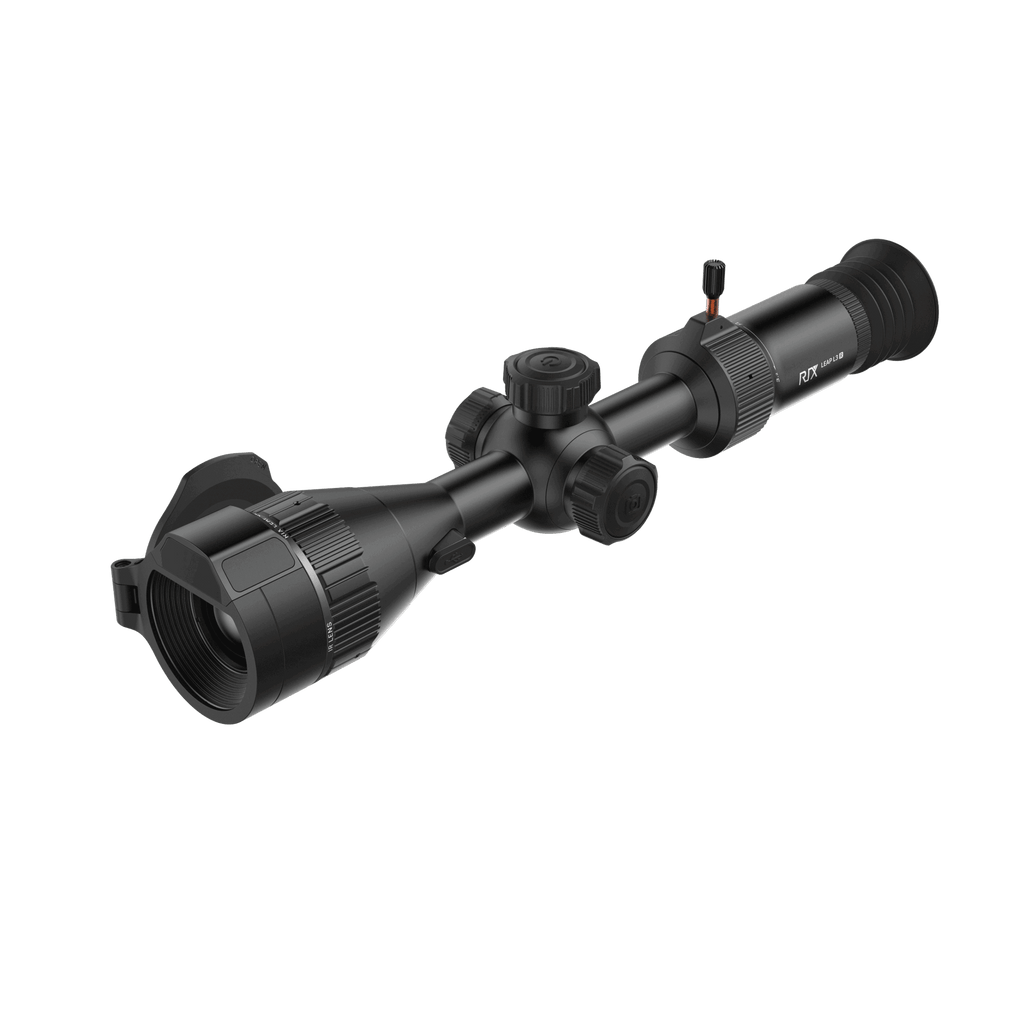

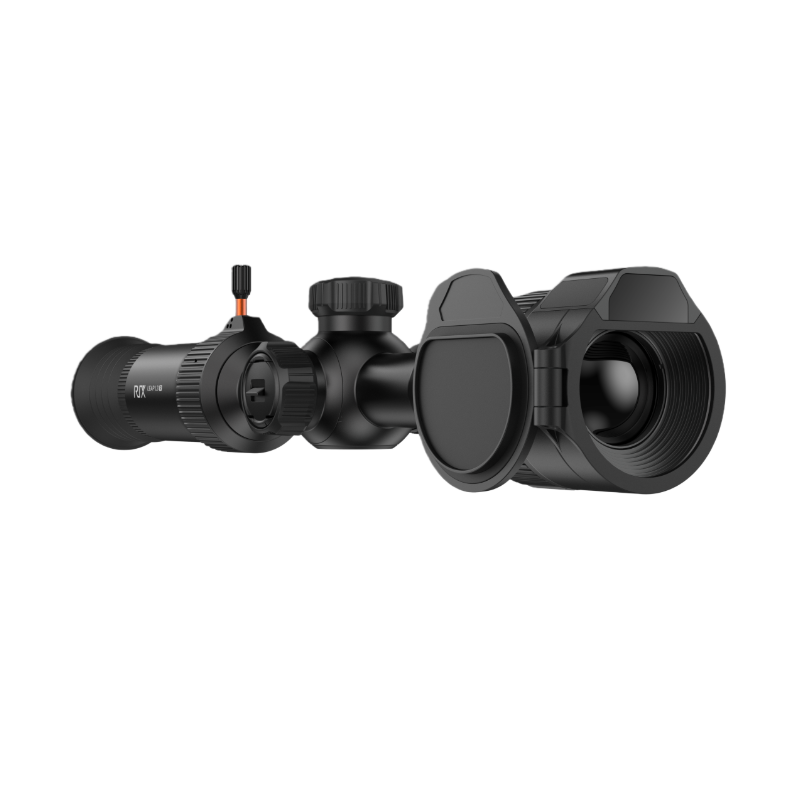

LEAP L3R
Sensor Specifications
TypeVOx Uncooled
Resolution, pixels384×288
Pixel Pitch, µm12
NETD, mK<20
Frame Rate, Hz50
Optical Specifications
Objective Lens, mm
35
Optical Zoom, x
3.2 to 9.6
Field of View (H×V)
7.5/13.2
Digital Zoom, x
1 to 4
Eye Relief, mm
50
Diopter Adjustment, D
-5 to +5
Detection Range, m/yd
1800/1969
Display Specifications
Type
AMOLED
Resolution, pixels
1920×1080
Laser Rangefinding
Measurement Range, m/yd
1200/1312
Measurement Accuracy, m/yd
±1/±1.09
Video Recorder
Video / Photo Resolution, pixel
1280×720
Video / Photo Format
.mp4 / .jpg
Built-in Memory, GB
32
Physical Specifications
Degree of Protection, IP code
IP67
Operating Temperature Range, °F
-4 to +122
Weight, lb
2.4
Dimensions, inch
14.2×3.5×3
Connections and Compatibilities
Battery Type
18650
Operating Time on Battery Pack (at t=72°F), h
4
External Power Supply, V
5V (Type-C USB)
Max Recoil Power on Rifled Weapon (Eo), g/Joules
1000/6000
Compatible Mounts
30mm rings
WHY CHOOSE LEAP L3R/L6R
BUILT-IN LENS LRF
The LEAP L3R/L6R’s laser rangefinder is seamlessly integrated into the lens system, perfectly aligning the laser and optical axes for pinpoint accuracy out to 1,312 yd.
Its compact, optimized design ensures crystal-clear imaging and excellent shock resistance, while the integrated ballistic calculator delivers instant data for faster, more precise shots.
