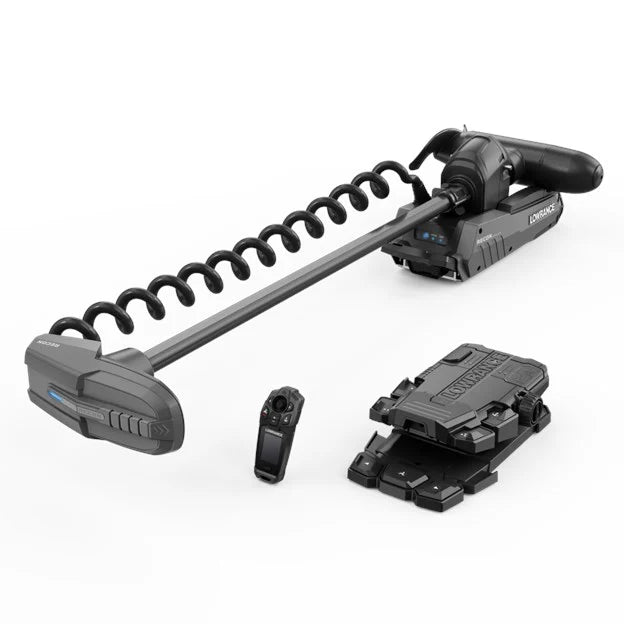

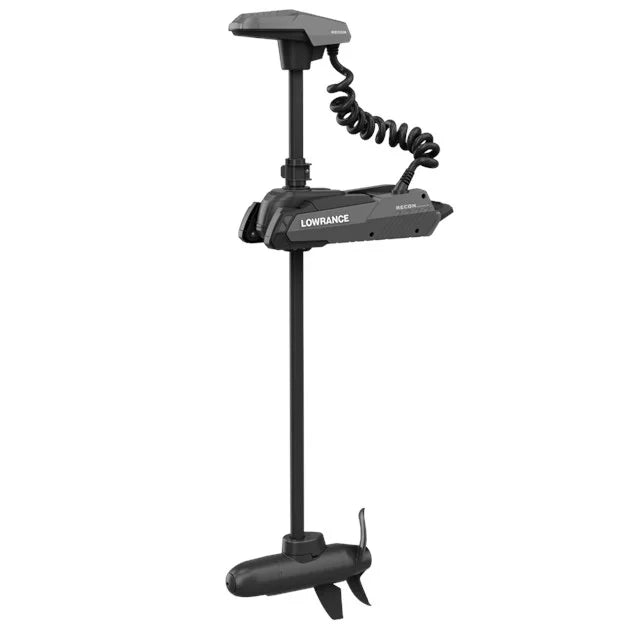

Lowrance RECON Freshwater Trolling Motor

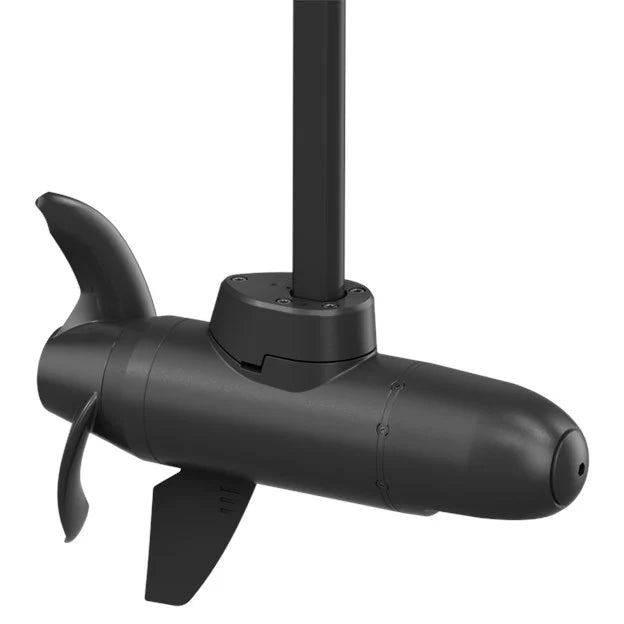

The Lowrance RECON Freshwater Trolling Motor puts you in total control of your boat, your position, and your fishing. Powered by a dual-voltage brushless motor delivering up to 120 lbs of thrust at 36V (97 lbs at 24V), the RECON holds you on target with a GPS anchor that locks within a 3-foot radius — even in heavy wind and current.

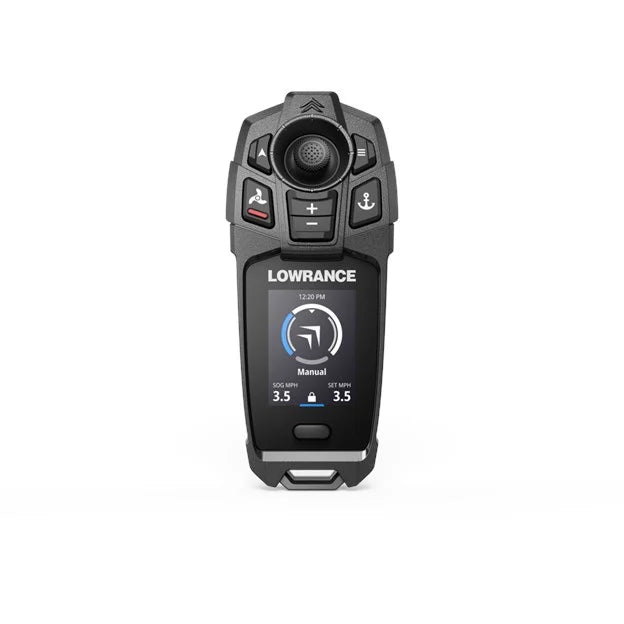

The industry-first FreeSteer Joystick Remote gives you 360-degree thumb control with 8-direction diagonal jogging to reposition your anchor point without re-anchoring. Freshwater models also include a wireless foot pedal with 40 degrees of heel-to-toe travel and a detachable programmable lower keypad. The included HDI nosecone delivers Lowrance-pedigree sonar imaging directly to your compatible fishfinder, with an optional upgrade path to Active Imaging 3-in-1 for DownScan, SideScan, and CHIRP in one transducer.

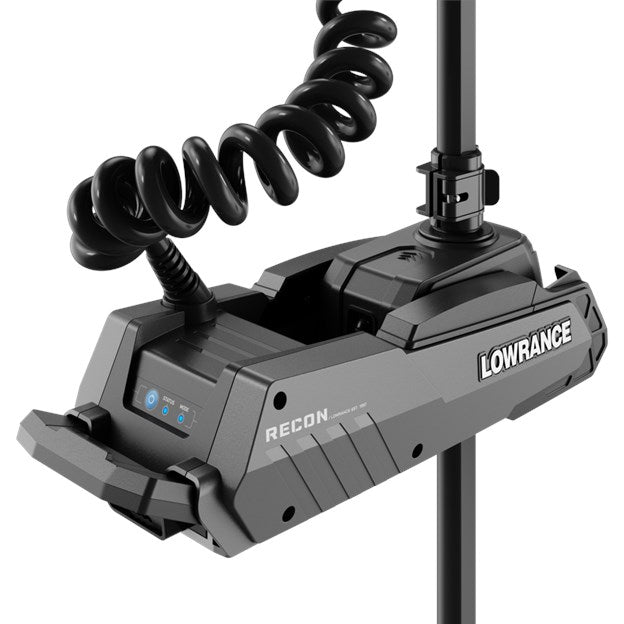

The carbon-fiber infused composite shaft is backed by a lifetime warranty. NMEA 2000 connectivity integrates with Lowrance HDS PRO, HDS LIVE, Elite FS, and Eagle displays for full motor control from your screen. User-serviceable design with clear diagnostic codes on the remote, app, or display. One-hand cam lock depth collar, LED indicators, back-lit controls, and multiple accessory mounting points.

Available in 48, 54, 60, and 72 inch shaft lengths. Backed by Lowrance 3-year motor warranty, lifetime shaft warranty, and CSO expert product support. 0% financing available — no credit needed.

Frequently Asked Questions

Q: What batteries does the Lowrance RECON need?
A: 2x 12V batteries wired in series for 24V (90 lbs thrust) or 3x 12V batteries wired in series for 36V (120 lbs thrust). Compatible with deep cycle lead acid, AGM, or LiFePO4. Minimum 60Ah capacity recommended.

Q: Will the RECON fit my existing trolling motor mount?
A: The RECON uses the same bolt hole pattern as the MotorGuide Xi5. It will fit MotorGuide Universal Quick Release Brackets and some HD brackets with the Xi5 pattern. Ensure the shaft is at least 1.25 inches from the rub rail when deployed.

Q: What shaft length do I need?
A: 48 inch for boats 17-19 feet with low bow height. 54 inch for 18-20 foot bass boats (most popular). 60 inch for 20-22 foot boats or higher bow heights. 72 inch for 22+ foot boats, deep-V hulls, or rough water conditions.

Q: Does the RECON include sonar?
A: Yes. All freshwater models include an HDI nosecone that delivers sonar imaging to any compatible Lowrance display. You can upgrade to Active Imaging 3-in-1 for DownScan, SideScan, and CHIRP from the trolling motor.

Q: RECON vs Lowrance Ghost - which should I choose?
A: The RECON is the next generation. It adds the FreeSteer joystick remote with 8-direction jogging, a wireless foot pedal, higher thrust (120 lbs vs 97 lbs on Ghost at 36V), and improved GPS accuracy within 3 feet. The Ghost is cable-steer only with foot pedal control.
