Humminbird XPLORE Chartplotter Fish Finder

🎣 Humminbird's newest series. Pick your screen size, decide whether you need the transducer, and rig it.

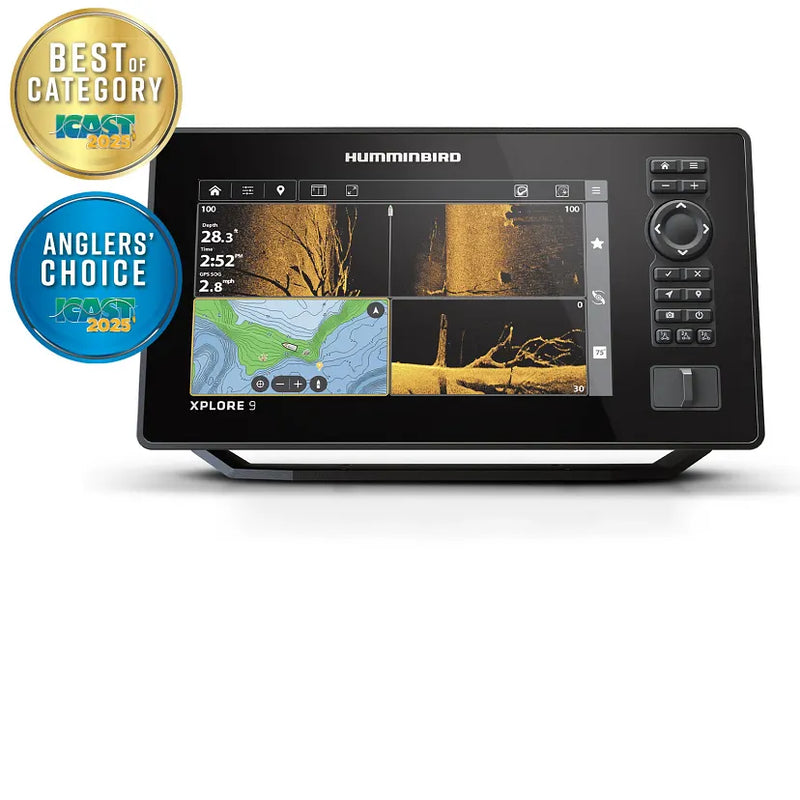

XPLORE is built around a Full-HD 1280 x 720 display with the Cross Touch interface, so you can run it by touchscreen or by keypad, whichever your hands prefer when the water gets rough. Options with the transducer included run MEGA Side Imaging+ and MEGA Down Imaging+ on the XM 14 HW CMSI T transom transducer, giving you 20 percent more detail and 60 percent more range than standard MEGA Imaging. Dual Spectrum CHIRP handles the 2D work with Wide Mode for coverage and Narrow Mode for detail, down to 1,200 feet on the standard transducer.

Internal GPS with Humminbird Basemap covers more than 10,000 lakes, and XPLORE is compatible with LakeMaster and CoastMaster charts covering over 13,000 lakes, waterways, and coastal waters across the U.S. and Canada with 1 foot contours and built-in SmartStrike. The new waypoint system syncs 10,000 waypoints to your phone with custom colors and icons through the One-Boat Network app.

• ✅ Full-HD 1280 x 720 display with Cross Touch, touchscreen and keypad in one
• ✅ MEGA Side Imaging+ and MEGA Down Imaging+ out to 200 ft, 20% more detail than MEGA
• ✅ Dual Spectrum CHIRP 2D sonar with Wide and Narrow modes, 1,200 ft depth
• ✅ Compatible with LakeMaster and CoastMaster charts, 13,000+ lakes and waterways
• ✅ Internal GPS, Humminbird Basemap, AutoChart Live with 8 hours of recording
• ✅ MEGA Live 2 ready, plus One-Boat Network control of Minn Kota and Cannon gear
• ✅ Ethernet, Wi-Fi, Bluetooth and NMEA 2000 networking built in

Screen sizes are 9 in, 10.1 in and 12.1 in. Units with the transducer ship with the XM 14 HW CMSI T; the CHO options are control head only, for anglers running a thru-hull, a Minn Kota with Built-in MEGA Imaging, or an existing Humminbird network. MEGA Live 2 bundles pair the head unit with Humminbird's forward-facing sonar.

Built for bass, crappie, and walleye anglers who want current-generation MEGA imaging and premium map compatibility without stepping all the way up to APEX.

What's in the Box

Box contents depend on the option you choose. Check your option below before ordering.

Every option includes:

• Control head
• Power adapter
• Unit cover
• Mounting bracket

Option specific contents:

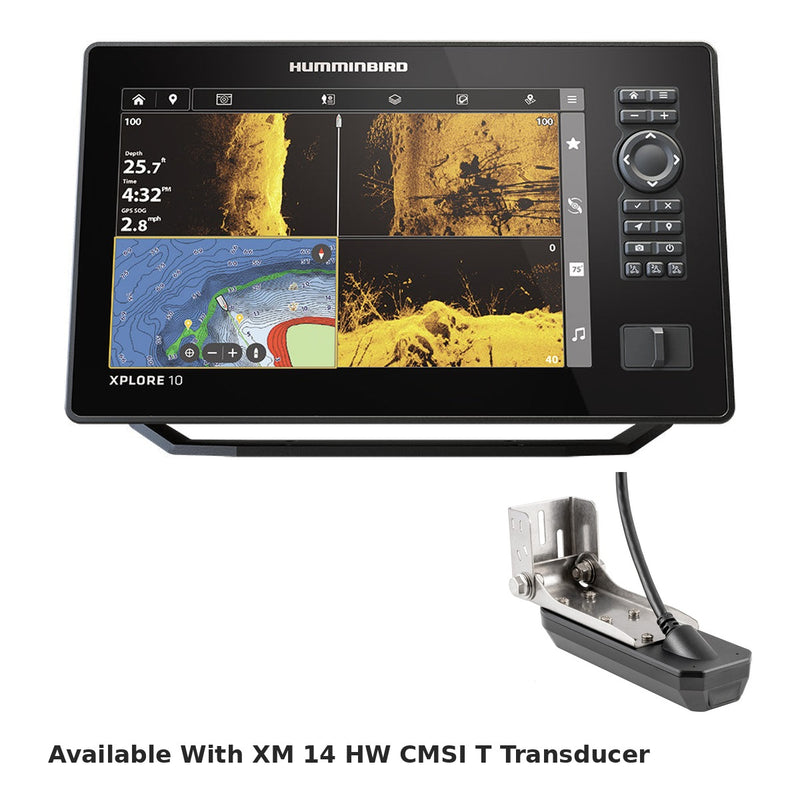

• Head Unit Only, Transducer Included: Yes (9 in 412000-1, 10 in 412010-1, 12 in 412020-1): Also includes XM 14 HW CMSI T transom-mount transducer. No MEGA Live 2 included.
• Head Unit Only, Transducer Included: No (9 in 412000-1CHO, 10 in 412010-1CHO, 12 in 412020-1CHO): No transducer included.
• MEGA Live 2 Bundle, Transducer Included: Yes (9 in 412000-1/ML2, 10 in 412010-1/ML2, 12 in 412020-1/ML2): Also includes XM 14 HW CMSI T transom-mount transducer, MEGA Live 2 transducer (710310-1), 20 ft Ethernet cable, 10 ft power cable, trolling motor mounting bracket.
• MEGA Live 2 Bundle, Transducer Included: No (9 in 412000-1CHO/ML2, 10 in 412010-1CHO/ML2, 12 in 412020-1CHO/ML2): Also includes MEGA Live 2 transducer (710310-1), 20 ft Ethernet cable, 10 ft power cable, trolling motor mounting bracket. No imaging transducer (MEGA Live 2 only).

FAQ

Q: What does CHO mean?
A: Control Head Only. The CHO models ship without a transducer. Pick CHO if you already run a compatible transducer, a thru-hull, a Minn Kota with Built-in MEGA Imaging, or an existing Humminbird Ethernet network. Otherwise choose a model with the transducer included, or you will open the box with nothing to scan with.

Q: Which transducer is included?
A: On the Transducer Included: Yes options, the XM 14 HW CMSI T transom-mount transducer, with built-in temperature. It runs MEGA Side Imaging+ and Down Imaging+ at 455 kHz and 1.1 MHz plus Dual Spectrum CHIRP at 150 to 220 kHz. The CHO options (Transducer Included: No) come with no transducer.

Q: How is XPLORE different from APEX?
A: Same sonar family, different platform. XPLORE runs a 1280 x 720 display in 9, 10.1 and 12.1 inch sizes. APEX runs 1920 x 1080 in 13.3, 16 and 19 inch, and adds HDMI in/out and dual Ethernet. XPLORE carries a 3 year warranty with registration; APEX carries 2 years.

Q: Does it come with maps?
A: Humminbird Basemap is built in, covering more than 10,000 lakes. For more detail, XPLORE is compatible with LakeMaster and CoastMaster charts.

Q: Does it work with MEGA Live 2?
A: Yes. Every XPLORE is MEGA Live 2 compatible, in Forward or Down mode with real-time zoom. The MEGA Live 2 bundle options include that sonar; the head unit only options do not.

Need help picking a screen size or transducer? Carolina Sportsman Outfitters has been outfitting anglers since 2015, and we know the Humminbird part numbers. Call 252-431-6001 and we will confirm the transducer, the mount, and the network before you order.

Backed by the Humminbird manufacturer warranty and CSO's expert product support. Financing available at checkout, no credit needed.
