Description
❄️ The premium ice fishing sonar bundle — pair the legendary LiveScope Plus LVS34-IF transducer with a 9" ECHOMAP UHD2 95sv touchscreen and a 16.5Ah lithium battery for the sharpest live-scanning sonar available on the ice.
The Garmin LiveScope Plus Ice Fishing Bundle (010-02690-35) is the choice of serious ice anglers who want the same target-separation imaging used by tournament bass anglers — but optimized for ice fishing. The LVS34-IF transducer is the ice-fishing variant of the standard LVS34, with a cable that stays flexible in freezing temperatures. The 16.5Ah lithium battery delivers all-day power without the weight of traditional lead-acid batteries.

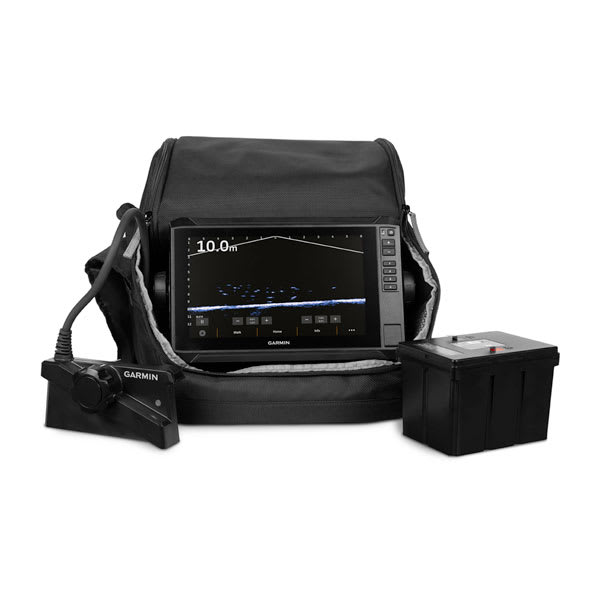

What's in This Bundle
- ✅ ECHOMAP UHD2 95sv chartplotter — 9" touchscreen with keyed assist (largest screen in this class)
- ✅ LiveScope Plus LVS34-IF transducer — ice-flex cable
- ✅ GLS 10 sonar black box
- ✅ Ice fishing pole mount + tilt mount
- ✅ 16.5Ah lightweight lithium-ion battery
- ✅ Battery charger
- ✅ Power cable
- ✅ Portable fishing bag with handle (rugged, glove-friendly)
- ✅ Garmin Navionics+ U.S. Inland mapping for 23,000+ U.S. lakes (1-year subscription)
- ✅ Documentation
Why LiveScope Plus on the Ice
- ✅ 200ft Forward range — see fish schools far from your hole before drilling more
- ✅ 200ft Down range — watch your jig and fish responses with crystal clarity
- ✅ 35% better target separation than the original LiveScope — distinguish individual fish in tight schools
- ✅ AHRS image stabilization — sharp image even in wind that rocks your portable shelter
- ✅ 7 vivid color palettes — maximum contrast for fish and structure ID
- ✅ Sharper resolution with reduced sonar artifacts vs. original LiveScope
- ✅ Two modes: Forward (locate fish + know where to drill) and Down (jigging in real time)
The 16.5Ah Lithium Battery — Why It Matters
Lithium ice fishing batteries are a game-changer. A traditional 12V 7Ah sealed lead-acid (SLA) battery weighs ~5 lbs and gives you maybe 4-5 hours of LiveScope use. The included 16.5Ah lithium-ion battery weighs about the same but delivers 3-4x the run time (12-15+ hours typical). It also performs better in cold temperatures where SLA batteries lose capacity. One charge gets you through any tournament day — even multi-day events.
9" UHD2 95sv Display
- ✅ Large 9" touchscreen with keyed assist
- ✅ Sunlight-readable for bright outdoor ice conditions
- ✅ Custom split-screen (sonar + flasher + map)
- ✅ Built-in Wi-Fi with ActiveCaptain mobile app
- ✅ Quickdraw Contours mapping
- ✅ Multi-band GPS positioning
- ✅ Compatible with traditional sonar transducers for open-water use
- ✅ Garmin Navionics+ U.S. Inland mapping included with 1-year subscription
This Bundle vs. Panoptix PS22-IF Bundle
This bundle (LiveScope Plus, $3,299.99): Premium imaging quality with the same LVS34 technology used by tournament bass anglers. 9" display, lithium battery, more detail, better target separation. Best for serious ice anglers, tournament fishermen, and anyone who wants the sharpest possible image.
Panoptix PS22-IF Bundle ($1,999.99): Simpler LiveVü technology with pole-free design. 7" display. Lighter and faster between holes. Best for hole-hopping anglers and casual ice fishing.
Summer Use Too
The ECHOMAP UHD2 95sv chartplotter and the LVS34 transducer (with standard non-IF cable swap) can both transition to open-water use. Many anglers use the same chartplotter year-round — ice setup in winter, swap to transom-mount transducer + LVS34 on trolling motor in summer.
Warranty
1-year limited manufacturer warranty from Garmin. Backed by CSO's expert product support. 0% financing available — no credit needed on qualifying purchases.
Frequently Asked Questions
LiveScope Plus Ice Bundle vs. Panoptix PS22-IF Bundle — which is better?
LiveScope Plus (this bundle, $3,299.99): Premium LVS34 technology with 35% better target separation than original LiveScope, AHRS image stabilization, 9" display, 16.5Ah lithium battery for all-day power, ice-flex cable. Best for tournament ice anglers and anyone who wants the absolute sharpest image. Panoptix PS22-IF Bundle ($1,999.99): Simpler LiveVü technology with pole-free design, 7" display, lighter and faster between holes. Best for hole-hopping and casual ice fishing. Pay the extra $1,300 for LiveScope Plus if you want maximum image quality and are serious about your ice fishing.
Why does the lithium battery matter?
Standard sealed lead-acid (SLA) batteries are heavy, lose significant capacity in cold temperatures, and typically give 4-5 hours of LiveScope use. The included 16.5Ah lithium-ion battery weighs about the same as a 7Ah SLA but delivers 3-4x the runtime (12-15+ hours typical) and performs much better in cold. One charge gets you through any tournament day, even multi-day events. Lithium is the right battery for serious ice fishing.
What's the difference between LVS34 and LVS34-IF?
Same sonar hardware. The IF (Ice Fishing) version has a cable specially formulated to stay flexible in sub-freezing temperatures so it doesn't stiffen, crack, or fail in cold. The standard LVS34 cable can become very stiff in cold weather and is more prone to damage. If you only fish open water, get the standard LVS34. If you ice fish (this bundle), the LVS34-IF is the right choice.
Can I use the chartplotter on my boat in summer?
Yes — the ECHOMAP UHD2 95sv chartplotter is a fully-featured open-water unit. Many anglers use the same chartplotter year-round: ice fishing setup in winter, swap to transom-mount transducer + add the standard LVS34 transducer (or use the LVS34-IF) on the trolling motor in summer. The GLS 10 black box stays in the chartplotter network year-round.
What chartplotter is included?
The 9-inch ECHOMAP UHD2 95sv — Garmin's mid-size flagship ECHOMAP. Features: 9" touchscreen with keyed assist (gloves-friendly), sunlight-readable, multi-band GPS, built-in Wi-Fi with ActiveCaptain mobile app, custom split-screen layouts (sonar + flasher + map), Quickdraw Contours mapping, Garmin Navionics+ U.S. Inland mapping included with 1-year subscription. Compatible with Garmin Force trolling motors and Power-Pole anchors for summer boat use.
Does this include a flasher mode?
Yes — the ECHOMAP UHD2 95sv supports a traditional flasher view that you can run in split-screen alongside LiveScope Forward and Down. Many ice anglers prefer the flasher for jigging while monitoring LiveScope Forward to see fish approaching from a distance. All three views can be on screen simultaneously.
Technical Specifications
| Model Number | 010-02690-35 |
| Bundle Type | Premium portable ice fishing system |
| Chartplotter | ECHOMAP UHD2 95sv (9" touchscreen with keyed assist) |
| Transducer | Panoptix LiveScope Plus LVS34-IF (ice-flex cable) |
| Sonar Black Box | GLS 10 |
| Sonar Modes | LiveScope Forward + LiveScope Down |
| LVS34 Frequency | 530-1,100 kHz |
| LVS34 Max Depth | 200 ft Down + Forward |
| LVS34 Beamwidth | 20° × 135° |
| Image Improvements vs LVS32 | 35% better target separation, AHRS stabilization, vivid color |
| Color Palettes | 7 vivid options |
| Battery | 16.5Ah lithium-ion (lightweight) |
| Battery Runtime | 12-15+ hours typical |
| Battery Charger | Included |
| Mapping | Garmin Navionics+ U.S. Inland (1-year subscription) |
| Lake Coverage | 23,000+ U.S. lakes |
| Mounts | Ice fishing pole mount + tilt mount |
| Carrying Case | Rugged, portable, glove-friendly with handle |
| Waterproof | IPX7 |
| Warranty | 1-year limited manufacturer |
What's in the Box
ECHOMAP UHD2 95sv chartplotter (9"), LVS34-IF Panoptix LiveScope Plus transducer (ice-flex cable), GLS 10 sonar black box, ice fishing pole mount, tilt mount, power cable, portable fishing bag with handle, 16.5Ah lithium-ion battery, battery charger, U.S. Inland Navionics+ map subscription, documentation
Compatibility
Self-contained premium portable ice fishing bundle. The ECHOMAP UHD2 95sv chartplotter and LVS34 transducer (with cable swap to standard non-IF cable, sold separately) can both transition to open-water use. Compatible with Garmin Force trolling motors and Power-Pole anchors via NMEA 2000. ActiveCaptain mobile app via built-in Wi-Fi. The 16.5Ah lithium battery can be used to power other 12V devices in the field.
Warranty
1-year limited manufacturer warranty from Garmin. Includes 1-year Garmin Navionics+ map subscription.
