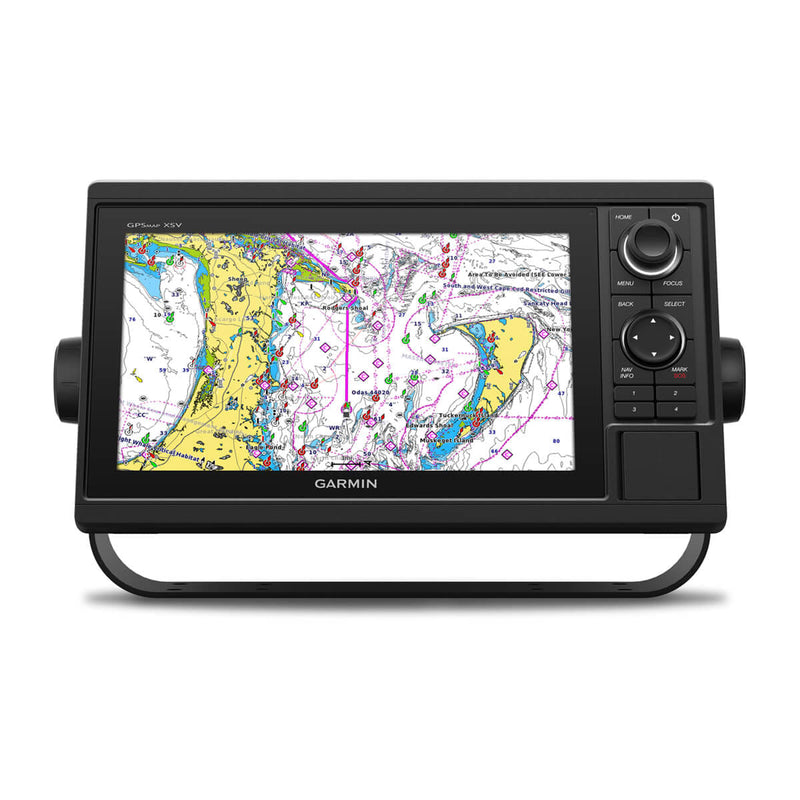

Garmin GPSMAP 1042/1242 xsv Chartplotter Fish Finder Combo, 10/12 in
SKU:
Description
📟 The keypad GPSMAP 10" and 12", a proven big-screen combo for bass and walleye boats.
Chart Card Compatibility
This unit has a microSD card slot and runs Garmin LakeVü g3 inland lake maps and Navionics+ and Navionics Platinum+ charts. Drop in the card for your region and go.
It comes in 10" and 12", with built-in traditional CHIRP, SideVü, and ClearVü, Garmin LiveScope compatible. Available models: 1022xsv, 1042xsv, 1222xsv, 1242xsv. xsv models offer a no-transducer option or the GT52HW-TM transducer.
Which model do I need?
- The letters are the sonar. cv is ClearVü down imaging only. sv is SideVü side imaging plus ClearVü down imaging. xsv adds built-in 1kW traditional CHIRP with both, no black box needed.
- The maps. The US/Canada version ships with Garmin Navionics+ for the US and Canada; the Worldwide version ships with a worldwide basemap. For this series, 1022 is worldwide, 1042 is US/Canada. Choose US/Canada for fishing in North America.
- ✅ SideVü side imaging to scan out to the sides of the boat
- ✅ ClearVü down imaging for photo-like detail straight down
- ✅ Traditional CHIRP sonar for marking fish, bait and bottom
- ✅ Garmin LiveScope compatible for forward-facing live sonar
- ✅ Preloaded Garmin Navionics+ mapping with Auto Guidance
- ✅ Built for US inland, coastal and Great Lakes anglers
Frequently asked
- Does it come with a transducer? xsv models offer a no-transducer option or the GT52HW-TM transducer.
- Worldwide vs US/Canada, which do I need? US/Canada ships with Garmin Navionics+ for North America. Worldwide ships with a worldwide basemap. Fishing in the US or Canada, choose US/Canada.
- What does cv, sv and xsv mean? cv is ClearVü down imaging only. sv is SideVü plus ClearVü, side and down. xsv adds built-in 1kW traditional CHIRP with both and no black box.
Not sure which to pick? Call Carolina Sportsman Outfitters at 252-431-6001 and we'll match the exact model and maps to where you fish. Outfitting anglers since 2015. Financing available at checkout, no credit needed.
What's in the Box
Box contents depend on the option you choose. Check your option below before ordering.
No Transducer / Worldwide / 10":
- GPSMAP 1022xsv chartplotter
- Power/data cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 m)
- 8-pin transducer to 12-pin sounder adapter cable
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
No Transducer / US/Canada / 10":
- GPSMAP 1042xsv chartplotter
- Power/data cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 m)
- 8-pin transducer to 12-pin sounder adapter cable
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation

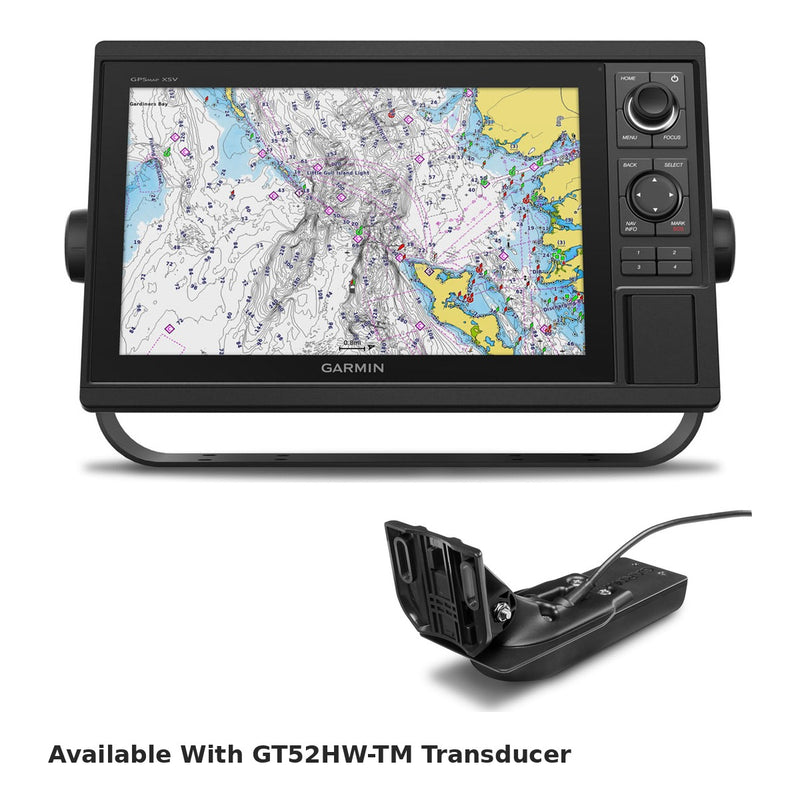

With GT52HW-TM Transducer / US/Canada / 10":
- GPSMAP 1042xsv chartplotter
- GT52HW-TM transducer
- Power/data cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 m)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
No Transducer / Worldwide / 12":
- GPSMAP 1222xsv chartplotter
- Power/data cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 m)
- 8-pin transducer to 12-pin sounder adapter cable
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
No Transducer / US/Canada / 12":
- GPSMAP 1242xsv chartplotter
- Power/data cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 m)
- 8-pin transducer to 12-pin sounder adapter cable
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
With GT52HW-TM Transducer / US/Canada / 12":
- GPSMAP 1242xsv chartplotter
- GT52HW-TM transducer
- Power/data cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 m)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
