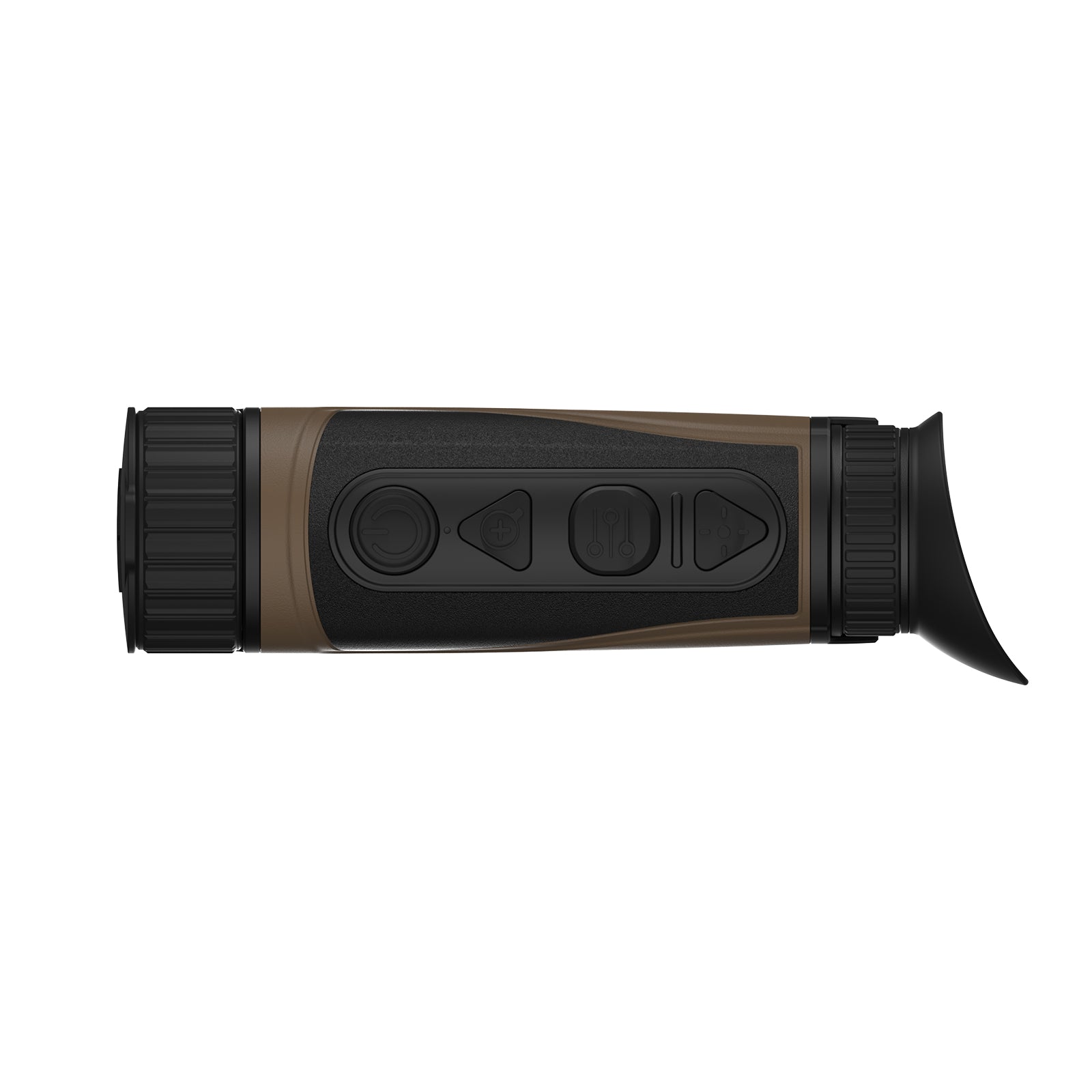

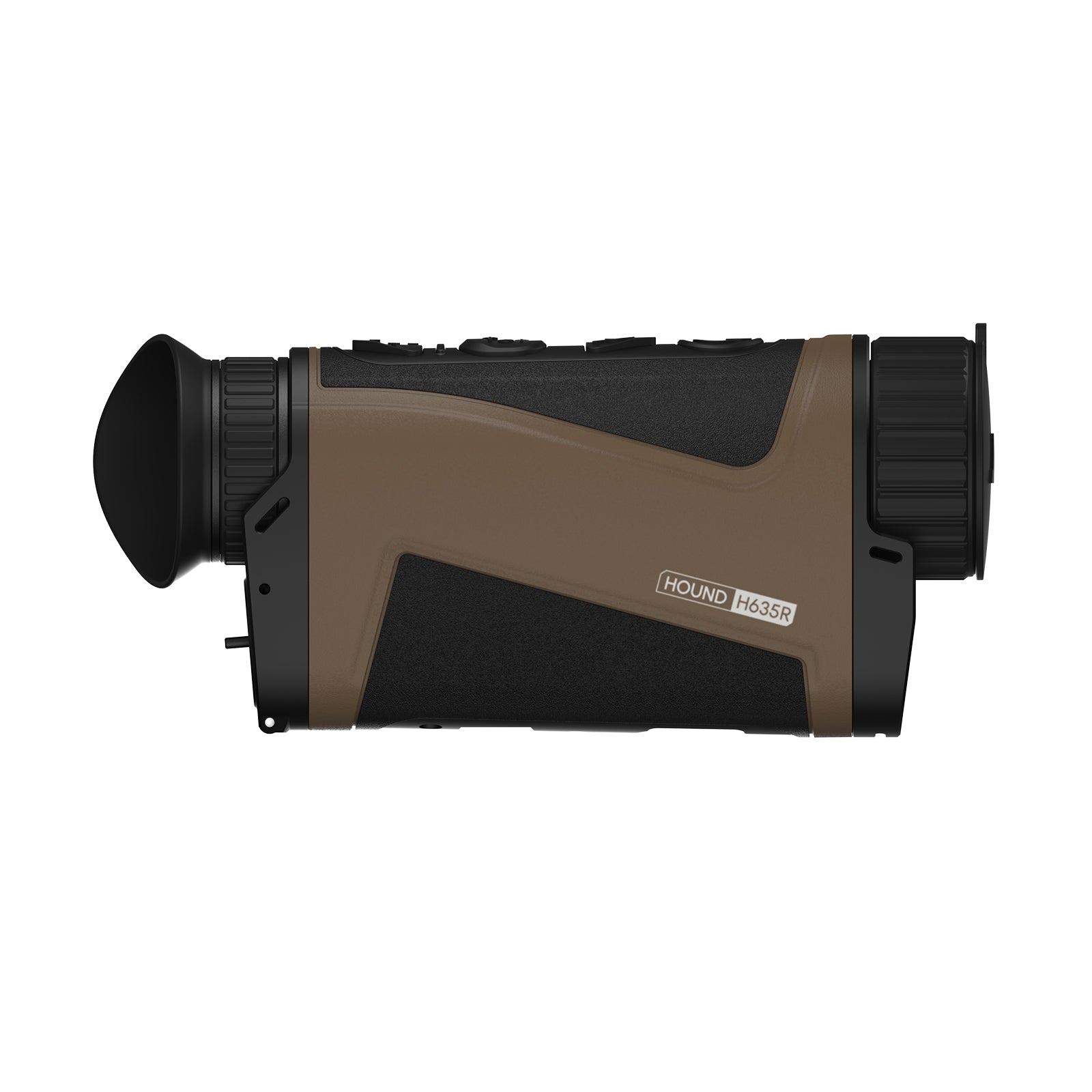

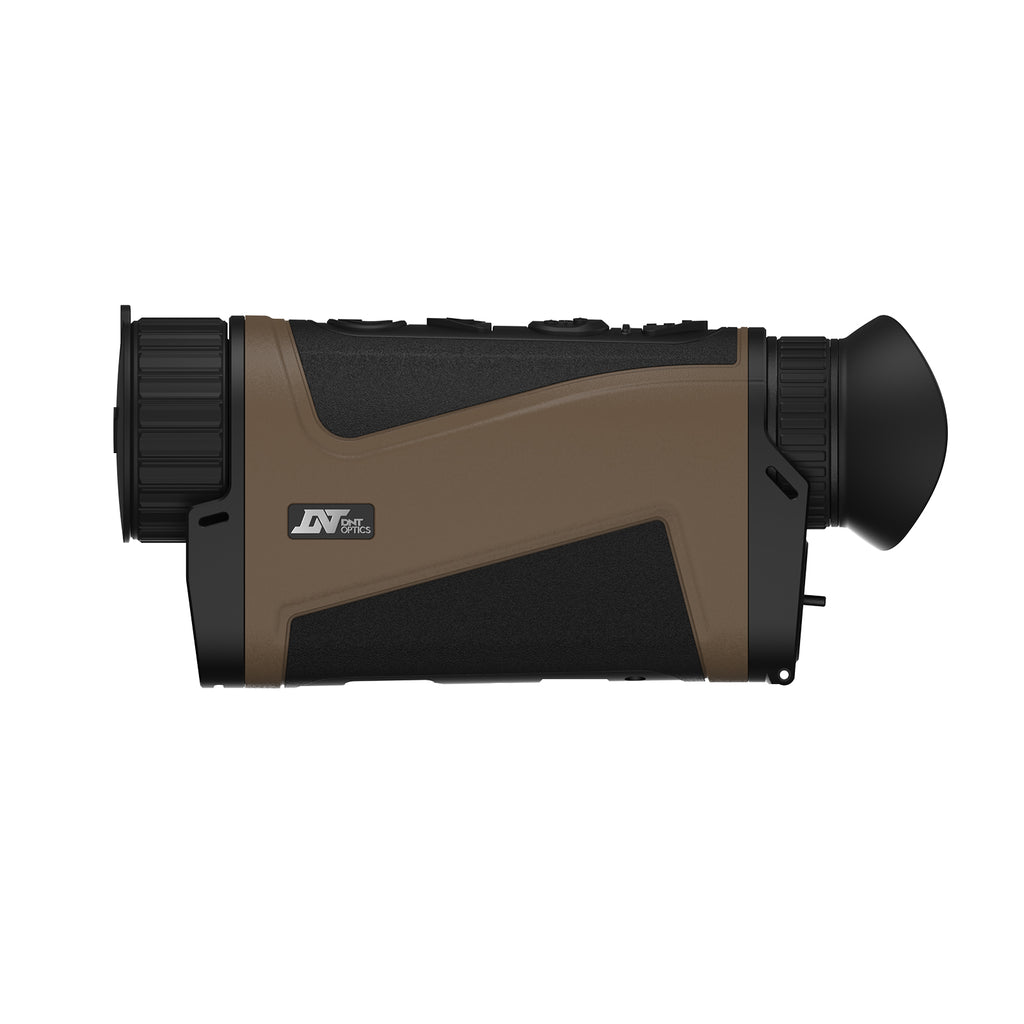

DNT Optics HOUND H635R 640×512 Thermal Monocular with Laser Rangefinder & Ballistic Calculator (35mm)

DNT Optics HOUND H635R — Flagship 640×512 Ballistic Thermal Monocular

The DNT Optics HOUND H635R is the flagship of the HOUND family, combining a high-resolution 640×512 thermal sensor with a 35mm objective lens, integrated laser rangefinder, and precision ballistic calculator in a body that still weighs under 11 ounces. For hunters who demand the sharpest thermal image available in a handheld format — and need rangefinding and ballistic solutions without carrying separate devices — the H635R sets a new standard. The 640-class sensor resolves fine details like antler tines, ear movement, and body posture at distances where 384-class sensors render only blobs, giving you positive target ID before committing to a shot.

Thermal Sensor & Image Quality

The H635R’s 640×512 uncooled infrared sensor with 12 μm pixel pitch and ≤18 mK NETD produces roughly 2.8× more thermal pixels than the H315R/H325R, resulting in dramatically finer detail, better contrast gradients, and longer effective detection range. DNT’s AI-enhanced Image Super Resolution (ISR) pushes digital zoom clarity even further, maintaining sharp edge definition up to 8× where most 640 sensors begin showing artifacts. The 35mm objective lens delivers a 21.9 yd × 17.6 yd field of view at 100 yards with 2× base magnification — a balanced compromise between scanning width and reach. Four thermal palettes (White Hot, Black Hot, Red Hot, Iron Hot) are available.

Laser Rangefinder & Ballistic Calculator

The integrated Class 1 eye-safe laser rangefinder is identical across all HOUND models: 5 to 1,200 yards of accurate distance measurement, feeding directly into the onboard ballistic calculator. Custom profiles for rifle and crossbow setups are adjustable on-device or via the DNT App. The combination of the 640 sensor’s superior target ID and instant ballistic solutions makes the H635R particularly effective for long-range predator calling and Western big-game hunts where shots regularly exceed 300 yards.

Display & Optics

A 1024×768 Micro-OLED display running at 50 Hz renders the 640 sensor’s full thermal resolution with vivid contrast and zero perceptible lag. Base magnification is 2× with digital zoom to 8×. Eye relief is 25 mm with fast diopter adjustment.

Build Quality & Connectivity

Aircraft-grade aluminum construction, IP67 waterproof and dustproof, powered by a single 18650 flat-top battery for up to 5 hours of runtime (slightly shorter than the 384 models due to the higher-resolution sensor). USB-C external power is available. Built-in 32 GB storage, photo/video recording with reticle and ballistic overlays, and Wi-Fi connectivity to the DNT App.

What’s in the Box

HOUND H635R monocular, carrying pouch, lanyard, wrist strap, 2× 18650 flat-top batteries, 4-port charger, USB-C data cable, USB-C charging cable, lens cleaning cloth, user manual, and quick-start guide.

Warranty

3-year manufacturer warranty, extendable to 5 years with free product registration at dntoptics.com. Covered by Carolina Sportsman Outfitters’ satisfaction guarantee and 0% interest financing.

Specifications

Frequently Asked Questions

Is the 640 sensor worth the upgrade over the 384 models?

For hunters who regularly shoot beyond 200 yards or need to positively ID game at long distances before shooting, yes. The 640×512 sensor produces 2.8× more thermal pixels, which translates to noticeably finer detail — distinguishing a coyote from a domestic dog, or counting tines on a buck, at ranges where a 384 sensor shows only a heat blob. If you primarily hunt inside 150 yards in timber or thick brush, the H315R or H325R will serve you well at a lower price point.

Why is the H635R battery life slightly shorter?

The 640×512 sensor draws more power than the 384×288 sensor. The H635R delivers approximately 5 hours per charge versus 5.5 hours for the H315R/H325R. Carrying a spare 18650 battery (pocket-sized, weighs less than 2 oz) eliminates any concern for multi-hour hunts.

Can I use the HOUND H635R as a weapon-mounted scope?

No. The HOUND series is designed exclusively as a handheld monocular with no rail-mount interface. It’s intended to complement a separate daytime optic. For a mountable thermal scope with rangefinder and ballistic calculator, see the DNT HYDRA-LRF or ThermNight series.

What does the 3-year (extendable to 5-year) warranty cover?

DNT’s warranty covers manufacturing defects in materials and workmanship. The H635R ships with a 3-year warranty, which extends to 5 years when you register the product for free at dntoptics.com. This is the most generous warranty in the HOUND lineup, reflecting the H635R’s premium positioning.

How does the H635R compare to the HYDRA HS635R scope?

Both use the same 640×512 / 35mm sensor platform, but they serve different roles. The HOUND H635R is a handheld monocular with a ballistic calculator — you scan and range with it, then shoot with your daytime scope. The HYDRA HS635R is a mountable 3-in-1 thermal scope (standalone/clip-on/handheld) with a laser rangefinder designed to replace or augment your daytime optic directly on the rifle.
