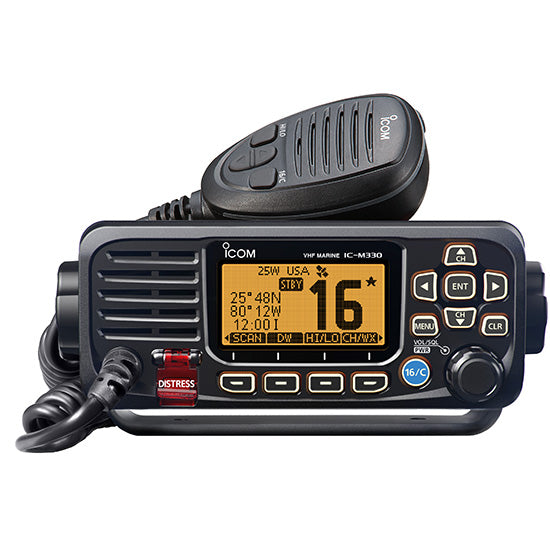

Icom M330 Compact Fixed-Mount VHF Radio - Black

📻 The Icom M330 Compact Fixed-Mount Marine VHF Radio in black delivers 25 watts of professional marine communication power in Icom's smallest fixed-mount body. The slim 6.2-inch chassis fits center consoles, smaller bay boats, and any helm with limited dash real estate while delivering full-size VHF performance. Made in Japan.

Compact Fixed-Mount Marine VHF

The M330 packs Icom's professional fixed-mount features into the smallest body in the class. 25W transmit power for full VHF range (12-25+ miles with proper antenna), AquaQuake water-draining technology that vibrates moisture out of the speaker grill, IPX7 submersible waterproofing rated to 1 meter for 30 minutes, and built-in Class D DSC with a dedicated Channel 70 receiver for digital distress calling. Icom's class-leading receiver delivers 70+ dB selectivity and IMD performance.

Key Features

• ✅ 25W / 1W selectable transmit power
• ✅ Ultra-compact body, 6.2 in W x 2.6 in D x 4.3 in H (slimmest in Icom fixed-mount line)
• ✅ IPX7 waterproof, submersible to 1 m for 30 min
• ✅ AquaQuake water draining, vibrates water out of speaker grill
• ✅ Built-in Class D DSC with dedicated Ch 70 receiver for digital distress
• ✅ Full dot-matrix LCD with backlighting
• ✅ USA, Canadian, International, NOAA Weather channels
• ✅ Dual-watch and tri-watch scan functions
• ✅ NMEA 0183 input for GPS position injection (for DSC distress calls)
• ✅ 13.8V DC nominal power
• ✅ 3-year factory warranty
• ✅ Made in Japan at Icom's Wakayama plant

Marine VHF Radios, Quick Reference

• FIXED-MOUNT VHF, Permanently installed, 12-25+ mile range, 25W power, requires external antenna (sold separately).
• HANDHELD VHF, Portable, 3-7 mile range, 5-6W power, battery-powered, all Icom handhelds float.
• FLOATING HANDHELD, Floats if dropped overboard. Critical safety feature. Both M25 and IC-M37 float.

FCC licensing: Recreational US boating does NOT require FCC license for VHF use. Commercial vessels require FCC Marine Radio Operator license. International voyaging requires Ship Station License.

Channel 16 is the international DISTRESS and CALLING channel, monitor when underway, use for emergencies.

Frequently Asked Questions

Why a fixed-mount VHF?
Fixed-mount VHF radios are permanently installed on the boat, wired to 12V power and an external antenna. The advantages over handheld VHF: 1) Much better range (external antenna delivers 12-25+ miles vs handheld 3-7 miles). 2) Higher transmit power (25W vs 5-6W handheld). 3) Always powered by boat (no battery to die). 4) Better audio quality. Fixed-mount is the primary marine radio for serious boating.

What antenna do I need?
Marine VHF antenna is sold separately. Typical recreational boaters use a 4-8 ft fiberglass antenna (Shakespeare 5101 is a common choice). The antenna is the single biggest factor in achieving full VHF range. Cable should be RG-58 minimum, RG-8 for longer runs (over 20 ft).

What's Class D DSC?
Digital Selective Calling. Press a single button to broadcast your boat's identity (MMSI number) and GPS position on Channel 70 to the Coast Guard and other DSC-equipped vessels. The most important safety feature of modern VHF. Requires NMEA 0183 GPS input and an MMSI number (free registration at boatus.com or USCG).

FCC licensing:
Recreational US boating does NOT require FCC license for VHF use. Commercial vessels and operations require FCC Marine Radio Operator license. International voyaging requires Ship Station License. Most CSO customers are recreational, no FCC license needed.

M330 vs M330G?
The M330 (this product) has Class D DSC but requires external GPS input via NMEA. The M330G includes built-in GPS so it can send your position automatically without external wiring. The M330 is the value pick if your chartplotter is already on the NMEA network.

Channel 16 critical reminder:
VHF Channel 16 is the international distress and calling channel. Monitor when underway. Use for emergencies (Mayday, Pan-Pan, Securite calls). Switch to working channels for routine communications. Channel 16 monitoring is the foundation of marine safety.

Authentic Icom?
Yes. CSO is an authorized Icom dealer, all products are authentic with full Icom 3-year manufacturer warranty.

Questions before you buy? Call Carolina Sportsman Outfitters at 252-431-6001, we've been outfitting boaters and offshore anglers since 2015.
