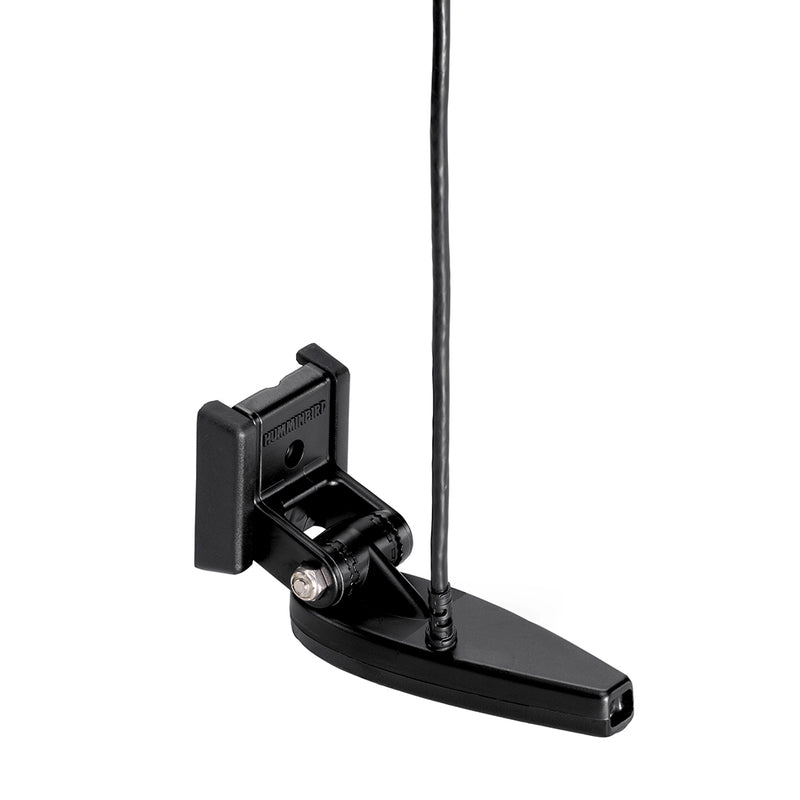

Humminbird XNT 9 HW MDI 75 T (710295-1)
SKU:
Description
🎣 XNT 9 HW MDI 75 T, CHIRP + Down Imaging transducer for HELIX.
Humminbird XNT 9 HW MDI 75 T (710295-1)
The Humminbird XNT 9 HW MDI 75 T (710295-1) delivers MEGA Down Imaging+ plus Dual Spectrum CHIRP for HELIX units. Transom mount with a 9-pin connection.
Key Features
- ✅ Transom Mount Transducer
- ✅ 9-Pin HELIX Connection
- ✅ CHIRP + MEGA Down Imaging+
- ✅ Dual Spectrum CHIRP (2D)
- ✅ 20-Foot Cable
- ✅ Built-In Temperature Sensor
- ✅ Compact Form Factor (smaller than XM 9 HW MDI)
- ✅ Frequencies: 150/83 kHz + 1.2 MHz MEGA
- ✅ OEM Humminbird Part (710295-1)
Why Choose This Transducer
Buy this when you want MEGA Down Imaging without paying for Side Imaging. Solid mid-tier HELIX transducer for anglers who fish primarily directly below the boat.
Compatibility
This product works with the following Humminbird components:
- HELIX 8/9/10/12/15 CHIRP MEGA DI+ GPS G3N/G4N
- HELIX 9/10/12 CHIRP DI GPS G2N (HW Only mode)
- 9-Pin Gray HELIX Connection
- Transom Mount Installation
- NOT compatible with APEX/XPLORE/SOLIX (14-pin)
- No Side Imaging (use XNT 9 HW MSI 150 T for SI)
Frequently Asked Questions
What fish finders is the XNT 9 HW MDI 75 T compatible with?
Compatible with HELIX 8/9/10/12/15 CHIRP MEGA DI+ GPS G3N/G4N. HELIX MEGA SI+ G3N/G4N units also accept it. Older HELIX DI G2N units run it in HW Only mode.
How does the XNT 9 HW MDI 75 T mount?
Transom mount installation. Mounts to the back of the boat below the waterline. Hardware included.
What is the cable length and connector type?
20-foot cable with 9-pin gray Humminbird connector.
Does Carolina Sportsman Outfitters offer free shipping?
Yes! Free shipping on all orders. Orders typically ship within 1-2 business days.
Need help with fit or compatibility? Carolina Sportsman Outfitters has been outfitting fish finder owners since 2015, we know the part numbers and can verify compatibility before you order. Call 252-431-6001.
Backed by Humminbird warranty and CSO's expert product support. Financing available at checkout, no credit needed.
