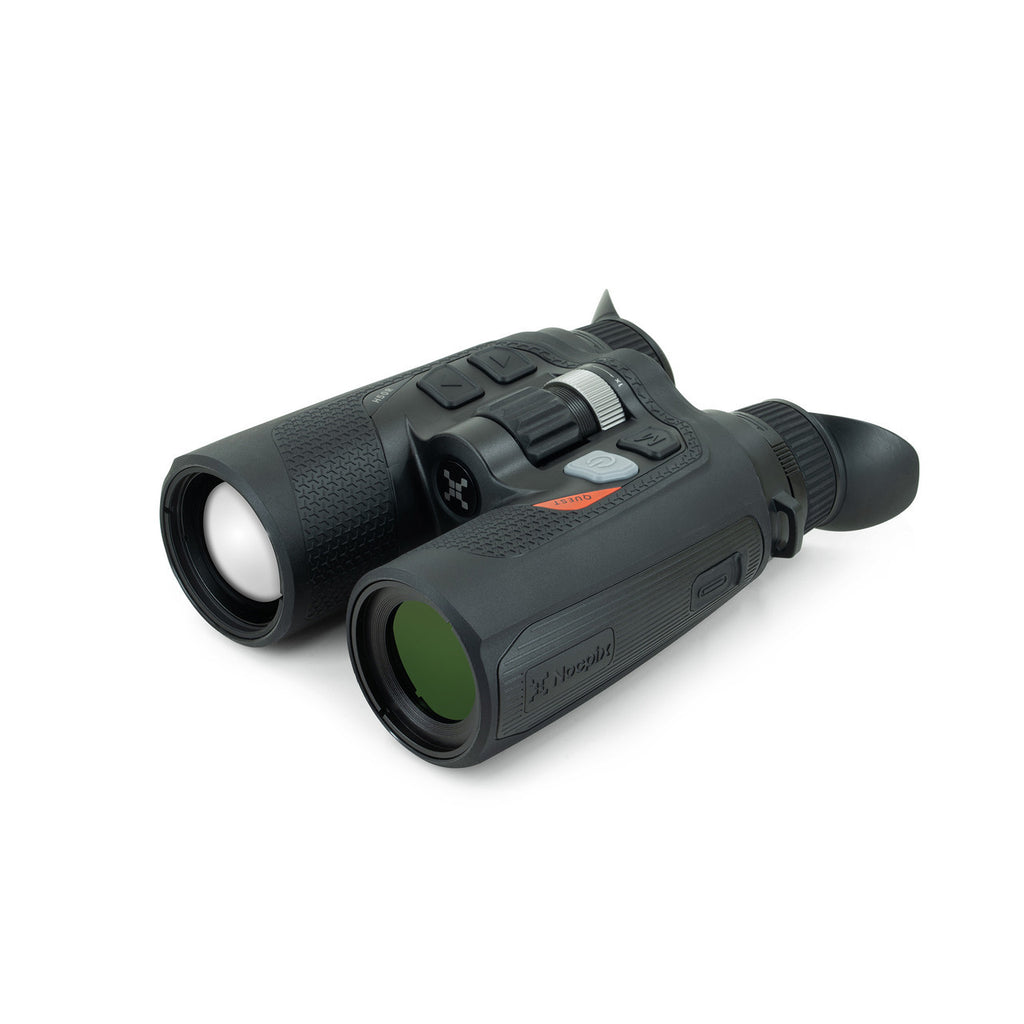

Nocpix QUEST H50R Rangefinding Thermal Binocular 640x512 50 mm
Roll over image to zoom in Click on image to zoom
Nocpix QUEST H50R Rangefinding Thermal Binocular 640x512 50 mm

Nocpix QUEST H50R Rangefinding Thermal Binocular 640x512 50 mm

Price:
$3,999.00

Description








  • Optics



    Objective Focal Length

    50mm



    Detection Range

    2850 Yards



    Optical Magnification

    4X



    Digital Magnification

    8X



    Objective Lens Material

    Germanium



    Horizontal Angular Field of View

    8.8°



    Vertical Angular Field of View

    7°



    Objective Diameter

    50mm



    Objective F#

    1.1



    Focusing Mechanism

    Manual Focus



    Eye Relief

    25mm



    Diopter Range

    -5 to +5



    Display Type

    AMOLED



    Display Resolution

    1920x1200










  • Features & Performance



    Color Palettes

    White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian



    Rangefinder

    Integrated 1000 yd LRF



    Stand-by Mode

    Yes



    Picture-in-Picture

    Yes



    Storage Capacity

    64GB



    Connector Output

    Power/Data



    User-Updatable Firmware

    Yes



    Mobile App

    Yes



    Power Source

    USB-C External, 18650 Battery, Built-In Battery Pack



    Connector Type

    USB-C



    Wifi

    Yes



    Onboard Recording

    Yes



    Image Capture

    Yes



    Video Output

    Yes



    Run Time

    5+



    Warranty

    5 Years



    Startup Time

    <10 Seconds, Instant from Standby



    External Power Source

    USB-C



    Country of Manufacture

    China










  • Environmental Specifications



    Operating Temperature Range

    -4°F~122°F



    Ingress Protection

    IP67










  • Physical



    Length

    6.91



    Width

    5.43



    Height

    2.60



    Weight

    24.69



    Housing Material

    Polymer










  • Sensor Specifications



    Sensor Type

    Nocpix 640



    Device Technology

    Thermal Imaging



    Sensor Resolution

    640×512



    Sensor Pixel Size

    12?m



    Sensor Frame Rate

    60hz



    Thermal Sensitivity

    <15mk



    Non-Uniformity Correction (NUC)

    Manual, Automatic, Semi-Automatic
















  • Optics



    Objective Focal Length

    50mm



    Detection Range

    2850 Yards



    Optical Magnification

    4X



    Digital Magnification

    8X



    Objective Lens Material

    Germanium



    Horizontal Angular Field of View

    8.8°



    Vertical Angular Field of View

    7°



    Objective Diameter

    50mm



    Objective F#

    1.1



    Focusing Mechanism

    Manual Focus



    Eye Relief

    25mm



    Diopter Range

    -5 to +5



    Display Type

    AMOLED



    Display Resolution

    1920x1200










  • Features & Performance



    Color Palettes

    White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian



    Rangefinder

    Integrated 1000 yd LRF



    Stand-by Mode

    Yes



    Picture-in-Picture

    Yes



    Storage Capacity

    64GB



    Connector Output

    Power/Data



    User-Updatable Firmware

    Yes



    Mobile App

    Yes



    Power Source

    USB-C External, 18650 Battery, Built-In Battery Pack



    Connector Type

    USB-C



    Wifi

    Yes



    Onboard Recording

    Yes



    Image Capture

    Yes



    Video Output

    Yes



    Run Time

    5+



    Warranty

    5 Years



    Startup Time

    <10 Seconds, Instant from Standby



    External Power Source

    USB-C



    Country of Manufacture

    China










  • Environmental Specifications



    Operating Temperature Range

    -4°F~122°F



    Ingress Protection

    IP67










  • Physical



    Length

    6.91



    Width

    5.43



    Height

    2.60



    Weight

    24.69



    Housing Material

    Polymer










  • Sensor Specifications



    Sensor Type

    Nocpix 640



    Device Technology

    Thermal Imaging



    Sensor Resolution

    640×512



    Sensor Pixel Size

    12?m



    Sensor Frame Rate

    60hz



    Thermal Sensitivity

    <15mk



    Non-Uniformity Correction (NUC)

    Manual, Automatic, Semi-Automatic
